Produkt Details
SKU
408320
Name

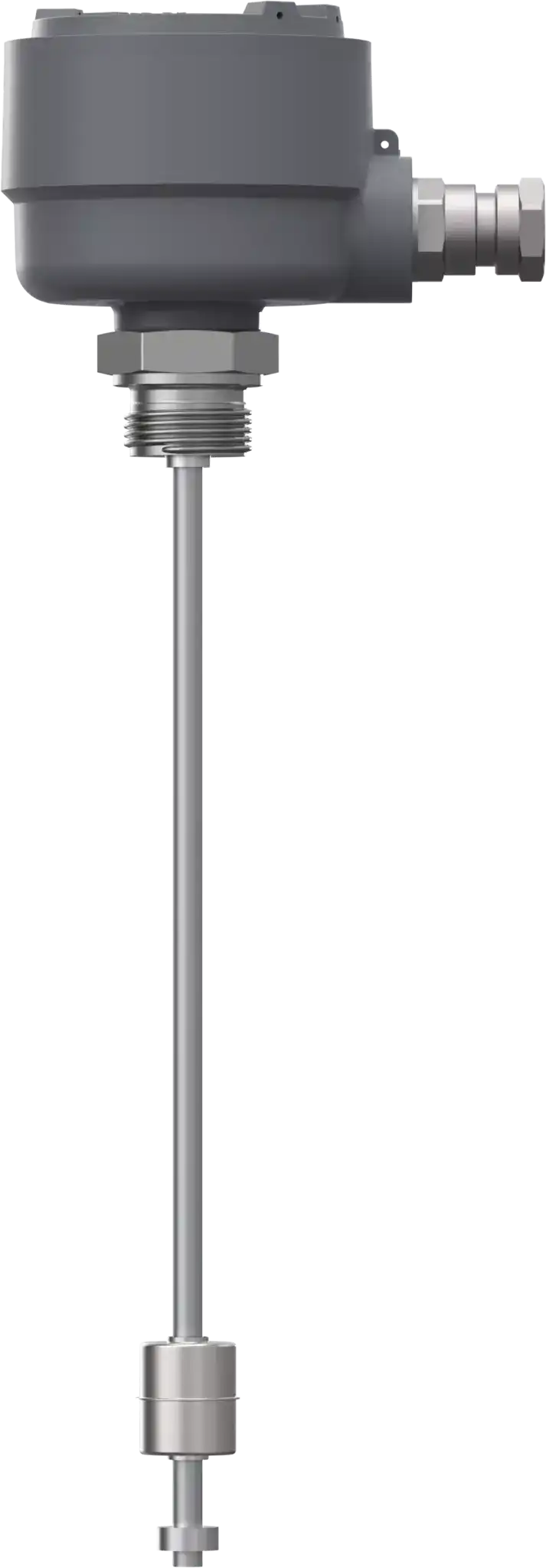

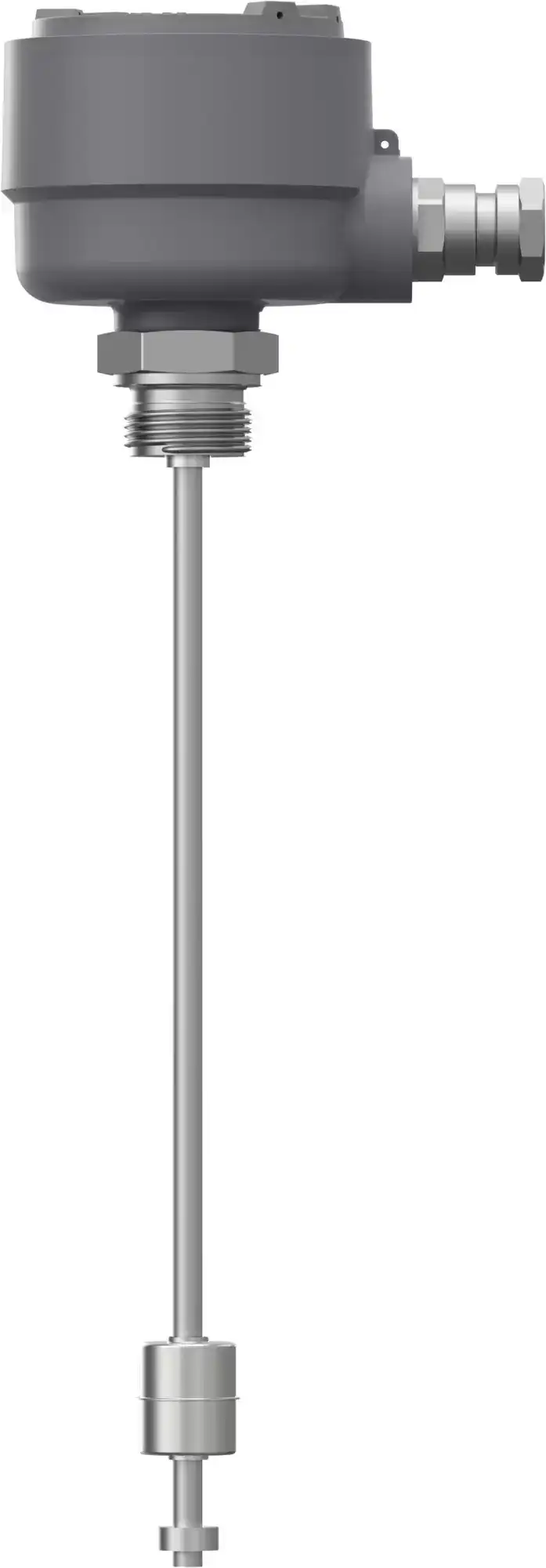

JUMO NESOS R20 LT
Description
Quasi-continuous level measurement of liquids in storage tanks and containers via floats and a reed chain with a resolution of up to 5.5 mm. The level is available as a standard signal of 4 to 20 mA. In addition, a temperature sensor/switch can also be provided.
Short Description
Level transmitter via float
Price
€0.00
Availability
In Stock
Images
State
LIVE
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbeyJzcmMiOiJodHRwczovL2RvMnAxcTliOTJzZ3AuY2xvdWRmcm9udC5uZXQvYXNzZXQvMzUzNjA0ODg0MzE5L3ZpZGVvX3U4NXRyOGRlZ2w3YWRmNnVjcDVjZnI4djVkP2NvbnRlbnQtZGlzcG9zaXRpb249aW5saW5lIiwiYWx0IjoiTkVTT1NfREVfdC5tcDQiLCJ0aHVtYm5haWxVcmwiOiJodHRwczovL2RvMnAxcTliOTJzZ3AuY2xvdWRmcm9udC5uZXQvcmVuZGl0aW9uLzM1MzYwNDg4NDMxOS92aWRlb191ODV0cjhkZWdsN2FkZjZ1Y3A1Y2ZyOHY1ZC8tRldFQlAiLCJzb3J0IjowfV0sImRhdGFTaGVldFVybCI6Imh0dHBzOi8vd3d3Lmp1bW8ubmV0L2F0dGFjaG1lbnRzL0pVTU8vYXR0YWNobWVudGRvd25sb2FkP2lkPTcxNjY0MCIsImJlbmVmaXRzIjpbXSwiYmVuZWZpdHNJbnRyb2R1Y3Rpb24iOiIiLCJ0ZWNobmljYWxEYXRhIjpbeyJuYW1lIjoiUmVzb2x1dGlvbiIsInZhbHVlIjoiNS41wqBtbTsgOC44wqBtbTsgMTHCoG1tOyAxNy42wqBtbSIsInNvcnRObyI6MH0seyJuYW1lIjoiTWVkaXVtIHRlbXBlcmF0dXJlIiwidmFsdWUiOiItNTLCoHRvwqArMTgwwqDCsEMiLCJzb3J0Tm8iOjF9LHsibmFtZSI6IkZsb2F0IiwidmFsdWUiOiJDeWxpbmRlciwgc3RhaW5sZXNzIHN0ZWVsIMOYNDQ7IHNwaGVyZSwgc3RhaW5sZXNzIHN0ZWVsIMOYNTI7IGN5bGluZGVyLCB0aXRhbml1bSDDmDQ0OyBzcGhlcmUsIHRpdGFuaXVtIMOYNTIiLCJzb3J0Tm8iOjJ9LHsibmFtZSI6Ik91dHB1dCBzaWduYWwiLCJ2YWx1ZSI6IjQgdG8gMjDCoG1BOyByZXNpc3RhbmNlIHZhbHVlIOKAkyBwb3RlbnRpb21ldHJpYyIsInNvcnRObyI6M30seyJuYW1lIjoiUHJvdGVjdGlvbiByYXRpbmciLCJ2YWx1ZSI6IlVwIHRvIElQNjgiLCJzb3J0Tm8iOjR9LHsibmFtZSI6IkFwcHJvdmFscyIsInZhbHVlIjoiQVRFWCwgSUVDRXgsIFtFeCBpLCBFeCBkXSwgRE5WLCBFQUMiLCJzb3J0Tm8iOjV9LHsibmFtZSI6Ik1hbnVmYWN0dXJlcidzIGRlY2xhcmF0aW9uIiwidmFsdWUiOiJSYWlsd2F5IHRlc3QgYWNjb3JkaW5nIHRvIERJTiBFTiA1MDE1NSwgQ0UiLCJzb3J0Tm8iOjZ9LHsibmFtZSI6IlNwZWNpYWwgZmVhdHVyZXMiLCJ2YWx1ZSI6IlRoZSBwcm9kdWN0IGRvZXMgbm90IGZhbGwgdW5kZXIgdGhlIFByZXNzdXJlIEVxdWlwbWVudCBEaXJlY3RpdmUgMjAxNC82OC9FVSwgc2luY2UgdGhlcmUgaXMgbm8gcHJlc3N1cml6ZWQgaG91c2luZyAoc2VlIHNlcGFyYXRlIGNlcnRpZmljYXRlIFTDnFYgU8OcRCkuIiwic29ydE5vIjo3fV0sImhpZ2hsaWdodHMiOlt7Imljb25UZXh0IjoiaWNvbi1zaGllbGQiLCJkZXNjcmlwdGlvbiI6IlJldmVyc2UtcG9sYXJpdHkgcHJvdGVjdGlvbiIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24tY2hlY2siLCJkZXNjcmlwdGlvbiI6IkhpZ2ggZGVncmVlIG9mIG1lYXN1cmluZyBhY2N1cmFjeSIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24tdGhlcm1vbWV0ZXIiLCJkZXNjcmlwdGlvbiI6Ik5vIHRlbXBlcmF0dXJlIGluZmx1ZW5jZSBvbiB0aGUgbWVhc3VyZW1lbnQgcmVzdWx0IiwidHlwZSI6IklDT04ifV0sImRpZmZlcmVudGlhdG9ycyI6W3sidGV4dCI6Ik1lYXN1cmluZyByYW5nZTogMTU3wqB0b8KgMzg5NSBtbSIsInNvcnRObyI6MH0seyJ0ZXh0IjoiTWVkaXVtIHRlbXBlcmF0dXJlOiAtNTLCoHRvwqAxODAgwrBDIiwic29ydE5vIjoxfSx7InRleHQiOiJPcHRpb25hbDogZGlzcGxheSwgdGVtcGVyYXR1cmUgc2Vuc29yIiwic29ydE5vIjoyfV19
title
Icon
icon-shield
Description
Reverse-polarity protection
Icon
icon-check
Description
High degree of measuring accuracy
Icon
icon-thermometer
Description
No temperature influence on the measurement result
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=716640
Resolution
5.5 mm; 8.8 mm; 11 mm; 17.6 mm
Medium temperature
-52 to +180 °C
Float
Cylinder, stainless steel Ø44; sphere, stainless steel Ø52; cylinder, titanium Ø44; sphere, titanium Ø52
Output signal
4 to 20 mA; resistance value – potentiometric
Protection rating
Up to IP68
Approvals
ATEX, IECEx, [Ex i, Ex d], DNV, EAC
Manufacturer's declaration
Railway test according to DIN EN 50155, CE
Special features
The product does not fall under the Pressure Equipment Directive 2014/68/EU, since there is no pressurized housing (see separate certificate TÜV SÜD).
