Produkt Details
SKU
906141
Name

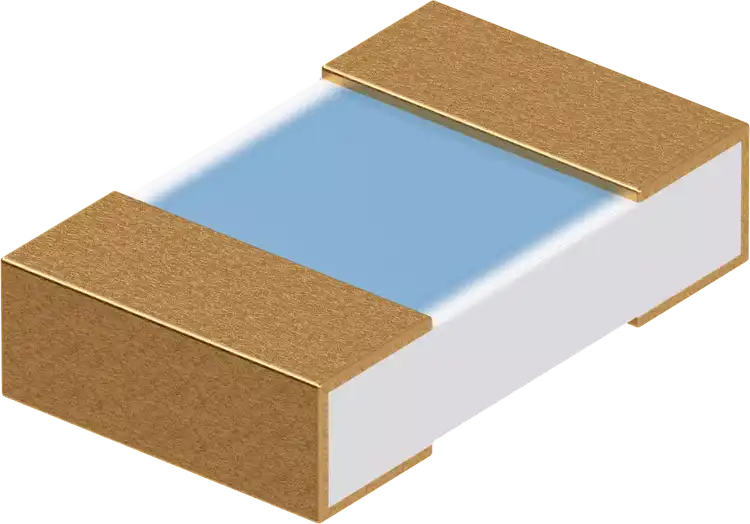

Platinum-chip temperature sensors SMD-L-AuNi
Description
Platinum-chip temperature sensors belong to the category of thin-film technology temperature sensors. For example, they are frequently applied in temperature monitoring or compensation circuits, as well as an array of applications in temperature probes. The sensors are available as Pt100, Pt500, and Pt1000.
Short Description
in SMD design type according to DIN EN IEC 60751
Price
€0.00
Availability
In Stock
Images
State
TOP_SELLER
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9MTIzNDIwNCIsImJlbmVmaXRzIjpbXSwiYmVuZWZpdHNJbnRyb2R1Y3Rpb24iOiIiLCJ0ZWNobmljYWxEYXRhIjpbeyJuYW1lIjoiRGVzaWduIHR5cGUiLCJ2YWx1ZSI6IlNNRC1MLUF1TmkiLCJzb3J0Tm8iOjB9LHsibmFtZSI6IlN0YW5kYXJkIiwidmFsdWUiOiJESU4gRU4gSUVDIDYwNzUxIiwic29ydE5vIjoxfSx7Im5hbWUiOiJUZW1wZXJhdHVyZSByYW5nZSIsInZhbHVlIjoiLTcwIHRvICsyNTDCoMKwQyIsInNvcnRObyI6Mn0seyJuYW1lIjoiVGVtcGVyYXR1cmUgY29lZmZpY2llbnQiLCJ2YWx1ZSI6Is6xID0gMy44NTAgw5cgMTAtM8KgwrBDLTEgKGJldHdlZW4gMCBhbmQgMTAwwqDCsEMpIiwic29ydE5vIjozfSx7Im5hbWUiOiJDb25uZWN0aW9uIiwidmFsdWUiOiJHb2xkLXBsYXRlZCBuaWNrZWwgc29sZGVyIGNvbnRhY3QsIHRoaWNrbmVzcyBvZiBuaWNrZWwgbGF5ZXIg4omlwqAxwqDCtW0sIGdvbGQg4omlwqA0MMKgbm0sIHNvbGRlcmFiaWxpdHkgYWNjb3JkaW5nIHRvIElFQyAvIERJTsKgRU7CoDYwMDY4LTItNTgiLCJzb3J0Tm8iOjR9LHsibmFtZSI6IlByb2Nlc3NpbmciLCJ2YWx1ZSI6IlJlZmxvdyBzb2xkZXJpbmciLCJzb3J0Tm8iOjV9LHsibmFtZSI6IkFkdmFudGFnZXMiLCJ2YWx1ZSI6IkZvciBhdXRvbWF0aWMgcGxhY2VtZW50LCBTTUQgc2l6ZXMgMDgwNSBhbmQgMTIwNiwgQUVDLVEyMDAgZm9yIHNlbGVjdGVkIHNlbnNvcnMsXHRoaWdoLXB1cml0eSBhbmQgZXZlbiBjb250YWN0IGxheWVyIGxheWVyIGZvciBiZXR0ZXIgc29sZGVyIGNvbm5lY3Rpb24sIGhpZ2ggbWVhc3VyaW5nIGFjY3VyYWN5LCBoaWdoIGxvbmctdGVybSBzdGFiaWxpdHksIHN0YW5kYXJkaXplZCBub21pbmFsIHZhbHVlcyBhbmQgdG9sZXJhbmNlcywgZmFzdCByZXNwb25zZSBiZWhhdmlvciIsInNvcnRObyI6Nn0seyJuYW1lIjoiQXJlYXMgb2YgYXBwbGljYXRpb24iLCJ2YWx1ZSI6IlN1cmZhY2UgYW5kIGFtYmllbnQgdGVtcGVyYXR1cmUgbWVhc3VyZW1lbnRzIG9uIGNpcmN1aXQgYm9hcmRzIChlLmcuIGluIHRlbXBlcmF0dXJlIHByb2JlcywgdGVtcGVyYXR1cmUgbW9uaXRvcmluZyBvciBjb21wZW5zYXRpb24gY2lyY3VpdHMpIiwic29ydE5vIjo3fV0sImhpZ2hsaWdodHMiOlt7Imljb25UZXh0IjoiaWNvbi1wbGF5YmFjay1mYXN0LWZvcndhcmQiLCJkZXNjcmlwdGlvbiI6IkZvciBhdXRvbWF0aWMgcGxhY2VtZW50IiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi1tYXNzemVpY2hudW5nIiwiZGVzY3JpcHRpb24iOiJTTUQgc2l6ZXMgMDgwNSBhbmQgMTIwNiIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24tY2VydGlmaWNhdGUtMDIiLCJkZXNjcmlwdGlvbiI6IkFFQy1RMjAwIGZvciBzZWxlY3RlZCBzZW5zb3JzIiwidHlwZSI6IklDT04ifV0sImRpZmZlcmVudGlhdG9ycyI6W3sidGV4dCI6IkdvbGQtcGxhdGVkIG5pY2tlbCBzb2xkZXIgY29udGFjdCIsInNvcnRObyI6MH0seyJ0ZXh0IjoiU3RhbmRhcmRpemVkIG5vbWluYWwgdmFsdWVzIGFuZCB0b2xlcmFuY2VzIiwic29ydE5vIjoxfSx7InRleHQiOiJBRUMtUTIwMCBmb3Igc2VsZWN0ZWQgc2Vuc29ycyIsInNvcnRObyI6Mn1dfQ==
title
Icon
icon-playback-fast-forward
Description
For automatic placement
Icon
icon-masszeichnung
Description
SMD sizes 0805 and 1206
Icon
icon-certificate-02
Description
AEC-Q200 for selected sensors
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=1234204
Design type
SMD-L-AuNi
Standard
DIN EN IEC 60751
Temperature range
-70 to +250 °C
Temperature coefficient
α = 3.850 × 10-3 °C-1 (between 0 and 100 °C)
Connection
Gold-plated nickel solder contact, thickness of nickel layer ≥ 1 µm, gold ≥ 40 nm, solderability according to IEC / DIN EN 60068-2-58
Processing
Reflow soldering
Advantages
For automatic placement, SMD sizes 0805 and 1206, AEC-Q200 for selected sensors, high-purity and even contact layer layer for better solder connection, high measuring accuracy, high long-term stability, standardized nominal values and tolerances, fast response behavior
Areas of application
Surface and ambient temperature measurements on circuit boards (e.g. in temperature probes, temperature monitoring or compensation circuits)
