Produkt Details
SKU
902428
Name

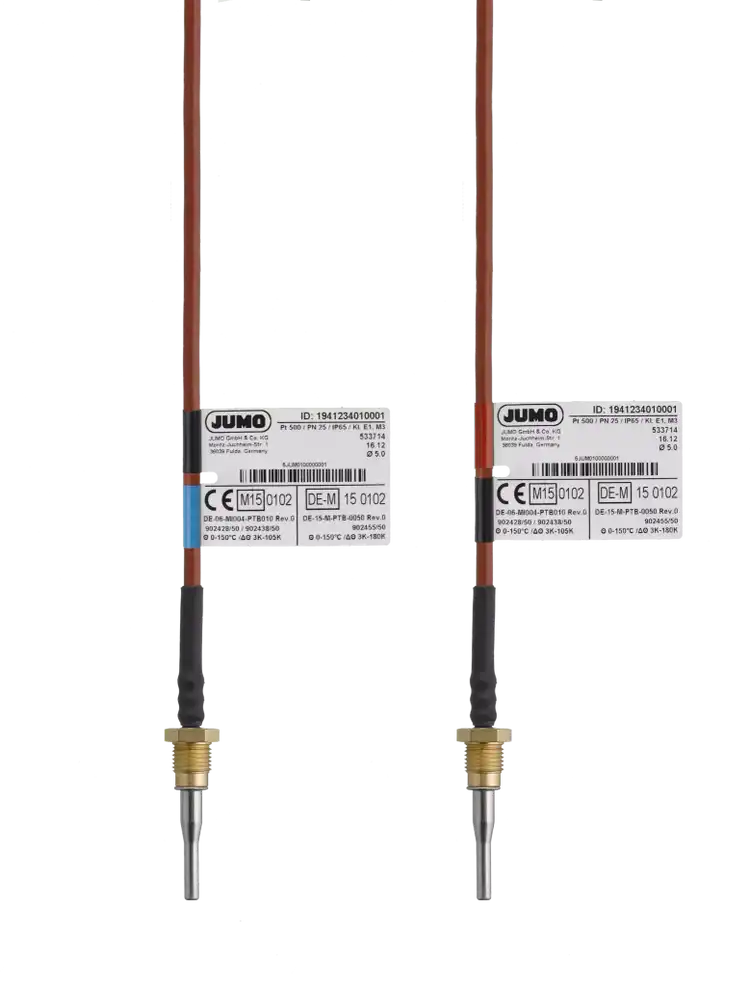

JUMO HEATtemp
Description
RTD temperature probes for heat meters are used for temperature measurement in closed pipeline systems. Direct mounting without additional immersion sleeve is recommended to achieve optimum thermal coupling to the measurement medium in the heating system.
Short Description
Screw-in RTD temperature probes for heat meters with connecting cable for direct mounting (type DS/DL)
Price
€0.00
Availability
In Stock
Images
State
LIVE
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbeyJzcmMiOiJodHRwczovL2RvMnAxcTliOTJzZ3AuY2xvdWRmcm9udC5uZXQvYXNzZXQvMzUzNjA0ODg0MzE5L3ZpZGVvX2FhMnBvMzc3aTUwYmhiMjRtYW1yNGtlMjFqP2NvbnRlbnQtZGlzcG9zaXRpb249aW5saW5lIiwiYWx0IjoiV01aXzJfMi5tcDQiLCJjYXRlZ29yeSI6Ikhvd1RvIiwidGh1bWJuYWlsVXJsIjoiaHR0cHM6Ly9kbzJwMXE5Yjkyc2dwLmNsb3VkZnJvbnQubmV0L3JlbmRpdGlvbi8zNTM2MDQ4ODQzMTkvdmlkZW9fYWEycG8zNzdpNTBiaGIyNG1hbXI0a2UyMWovLUZXRUJQIiwic29ydCI6MH0seyJzcmMiOiJodHRwczovL2RvMnAxcTliOTJzZ3AuY2xvdWRmcm9udC5uZXQvYXNzZXQvMzUzNjA0ODg0MzE5L3ZpZGVvX2hudGNzbGx0a2Q1cXZkMGRibXNsdHFtNjJvP2NvbnRlbnQtZGlzcG9zaXRpb249aW5saW5lIiwiYWx0IjoiSE9XVE9fV01aX01vbnRhZ2UubXA0IiwiY2F0ZWdvcnkiOiJJbmJldHJpZWJuYWhtZSIsInRodW1ibmFpbFVybCI6Imh0dHBzOi8vZG8ycDFxOWI5MnNncC5jbG91ZGZyb250Lm5ldC9yZW5kaXRpb24vMzUzNjA0ODg0MzE5L3ZpZGVvX2hudGNzbGx0a2Q1cXZkMGRibXNsdHFtNjJvLy1GV0VCUCIsInNvcnQiOjB9LHsic3JjIjoiaHR0cHM6Ly9kbzJwMXE5Yjkyc2dwLmNsb3VkZnJvbnQubmV0L2Fzc2V0LzM1MzYwNDg4NDMxOS92aWRlb19sOTA0MjRiM2s5MTJkNWF1cWNoYnZrbmUzNT9jb250ZW50LWRpc3Bvc2l0aW9uPWlubGluZSIsImFsdCI6IldNWl9JTUFHRV9ERS5tcDQiLCJjYXRlZ29yeSI6IlByb21vdGlvbiIsInRodW1ibmFpbFVybCI6Imh0dHBzOi8vZG8ycDFxOWI5MnNncC5jbG91ZGZyb250Lm5ldC9yZW5kaXRpb24vMzUzNjA0ODg0MzE5L3ZpZGVvX2w5MDQyNGIzazkxMmQ1YXVxY2hidmtuZTM1Ly1GV0VCUCIsInNvcnQiOjB9XSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9MTM2NzI1NiIsImJlbmVmaXRzIjpbXSwiYmVuZWZpdHNJbnRyb2R1Y3Rpb24iOiIiLCJ0ZWNobmljYWxEYXRhIjpbeyJuYW1lIjoiVGVtcGVyYXR1cmUiLCJ2YWx1ZSI6IjDCoHRvwqAxODDCoMKwQyIsInNvcnRObyI6MH0seyJuYW1lIjoiQ29ubmVjdGlvbiIsInZhbHVlIjoiRmVycnVsZXMiLCJzb3J0Tm8iOjF9LHsibmFtZSI6IkNvbm5lY3RpbmcgY2FibGUiLCJ2YWx1ZSI6IlBWQywgUFVSLCBUUEUsIHNpbGljb25lOyB1bnNoaWVsZGVkIG9yIHNoaWVsZGVkIiwic29ydE5vIjoyfSx7Im5hbWUiOiJQcm9jZXNzIGNvbm5lY3Rpb24iLCJ2YWx1ZSI6IlR5cGUgRFM6IHNjcmV3IGNvbm5lY3Rpb24gTTEwwqDDl8KgMSwgYnJhc3M7IHR5cGUgREw6IHRocmVhZCBHwqAxLzQsIEfCoDEvMiBzdGFpbmxlc3Mgc3RlZWwiLCJzb3J0Tm8iOjN9LHsibmFtZSI6IlByb3RlY3Rpb24gdHViZSIsInZhbHVlIjoiU3RhaW5sZXNzIHN0ZWVsIiwic29ydE5vIjo0fSx7Im5hbWUiOiJNZWFzdXJpbmcgaW5zZXJ0IiwidmFsdWUiOiJQdDEwMCwgUHQ1MDAsIG9yIFB0MTAwMCIsInNvcnRObyI6NX0seyJuYW1lIjoiT3B0aW9uIiwidmFsdWUiOiJUd28td2lyZSBvciBmb3VyLXdpcmUgY2lyY3VpdCIsInNvcnRObyI6Nn0seyJuYW1lIjoiSW5zZXJ0aW9uIGxlbmd0aCIsInZhbHVlIjoiVHlwZSBEUzogMjXCoHRvwqA2MMKgbW07IHR5cGUgREw6IDYwwqB0b8KgMjgwwqBtbSIsInNvcnRObyI6N30seyJuYW1lIjoiUHJvdGVjdGlvbiB0eXBlIiwidmFsdWUiOiJJUDY1Iiwic29ydE5vIjo4fSx7Im5hbWUiOiJTcGVjaWFsIGZlYXR1cmVzIiwidmFsdWUiOiJEaXJlY3QgbW91bnRpbmcgd2l0aG91dCBhZGRpdGlvbmFsIGltbWVyc2lvbiBzbGVldmUuIFByb2R1Y3Rpb24gY2VydGlmaWVkIGFjY29yZGluZyB0byBtb2R1bGUgRCAoTUlEKSAoQ0UgYW5kIG1ldHJvbG9neSBpZGVudGlmaWNhdGlvbiBtYXJraW5nKSwgcGFpcmluZyBhbmQgZGVjbGFyYXRpb24gb2YgY29uZm9ybWl0eSBhY2NvcmRpbmcgdG8gTUlELCB0eXBlIGV4YW1pbmF0aW9uIGNlcnRpZmljYXRlIGZvciBoZWF0IG1ldGVycyBNSUQgYXMgcmVwbGFjZWFibGUgdGVtcGVyYXR1cmUgcHJvYmVzIiwic29ydE5vIjo5fSx7Im5hbWUiOiJBcHByb3ZhbHMiLCJ2YWx1ZSI6IkZ1bGZpbGxzIHRoZSByZXF1aXJlbWVudHMgb2YgRElOwqBFTsKgMTQzNCwgQUdGV8KgRlfCoDIwMiwgYW5kIEZXwqAyMTEiLCJzb3J0Tm8iOjEwfSx7Im5hbWUiOiJBcHBsaWNhdGlvbiBvcHRpb25zIiwidmFsdWUiOiJUZW1wZXJhdHVyZSBtZWFzdXJlbWVudCBpbiBjbG9zZWQgcGlwZWxpbmUgc3lzdGVtcyIsInNvcnRObyI6MTF9XSwiaGlnaGxpZ2h0cyI6W3siaWNvblRleHQiOiJpY29uLWNoZWNrLWFsbC1hbHQiLCJkZXNjcmlwdGlvbiI6IlBhaXJpbmcgYW5kIGNvbmZvcm1pdHkgYWNjb3JkaW5nIHRvIE1JRCIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24tYm9vay1jaGVja2VkIiwiZGVzY3JpcHRpb24iOiJESU4gRU4gMTQzNCwgQUdGVyBGVyAyMDIsIGFuZCBGVyAyMTEiLCJ0eXBlIjoiSUNPTiJ9LHsiaWNvblRleHQiOiJpY29uLWZpbGUtY2hlY2tlZCIsImRlc2NyaXB0aW9uIjoiVHlwZSBleGFtaW5hdGlvbiBjZXJ0aWZpY2F0ZSBhdmFpbGFibGUiLCJ0eXBlIjoiSUNPTiJ9XSwiZGlmZmVyZW50aWF0b3JzIjpbeyJ0ZXh0IjoiVGVtcC46IDAgdG8gMTgwwqDCsEMiLCJzb3J0Tm8iOjB9LHsidGV4dCI6IlNlbnNvcjogUHQxMDAsIFB0NTAwLCBvciBQdDEwMDAiLCJzb3J0Tm8iOjF9LHsidGV4dCI6Ikluc2VydGlvbiBsZW5ndGg6IDI1IHRvIDYwwqBtbS82MCB0byAyODDCoG1tIiwic29ydE5vIjoyfV19
title
Icon
icon-check-all-alt
Description
Pairing and conformity according to MID
Icon
icon-book-checked
Description
DIN EN 1434, AGFW FW 202, and FW 211
Icon
icon-file-checked
Description
Type examination certificate available
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=1367256
Temperature
0 to 180 °C
Connection
Ferrules
Connecting cable
PVC, PUR, TPE, silicone; unshielded or shielded
Process connection
Type DS: screw connection M10 × 1, brass; type DL: thread G 1/4, G 1/2 stainless steel
Protection tube
Stainless steel
Measuring insert
Pt100, Pt500, or Pt1000
Option
Two-wire or four-wire circuit
Insertion length
Type DS: 25 to 60 mm; type DL: 60 to 280 mm
Protection type
IP65
Special features
Direct mounting without additional immersion sleeve. Production certified according to module D (MID) (CE and metrology identification marking), pairing and declaration of conformity according to MID, type examination certificate for heat meters MID as replaceable temperature probes
Approvals
Fulfills the requirements of DIN EN 1434, AGFW FW 202, and FW 211
Application options
Temperature measurement in closed pipeline systems
