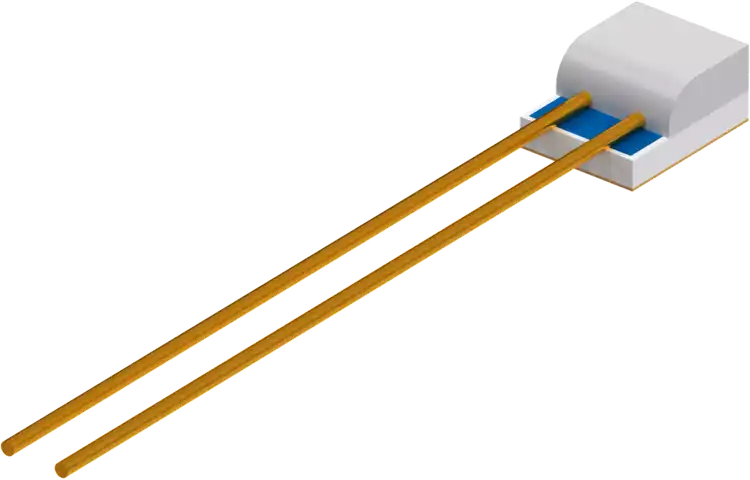

Platinum-chip temperature sensors PCWRB-L-AuNi
Description
Platinum chip temperature sensors of the PCWRB design type belong to the category of temperature sensors that were made using thin-film technology. The sensors are equipped with a solderable nickel-gold metallization on the back cover. The metal layer enables direct thermal contact with another body via a solder connection.
Short Description
with connecting wires and metallized back cover according to DIN EN IEC 60751
Price
€0.00
Availability
In Stock
Images
State
LIVE
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9MTIzNDE5NCIsImJlbmVmaXRzIjpbXSwiYmVuZWZpdHNJbnRyb2R1Y3Rpb24iOiIiLCJ0ZWNobmljYWxEYXRhIjpbeyJuYW1lIjoiRGVzaWduIHR5cGUiLCJ2YWx1ZSI6IlBDV1JCLUwtQXVOaSIsInNvcnRObyI6MH0seyJuYW1lIjoiU3RhbmRhcmQiLCJ2YWx1ZSI6IkRJTiBFTiBJRUMgNjA3NTEiLCJzb3J0Tm8iOjF9LHsibmFtZSI6IlRlbXBlcmF0dXJlIHJhbmdlIiwidmFsdWUiOiItNTAgdG8gKzI1MMKgwrBDIiwic29ydE5vIjoyfSx7Im5hbWUiOiJUZW1wZXJhdHVyZSBjb2VmZmljaWVudCIsInZhbHVlIjoizrEgPSAzLjg1MCDDlyAxMC0zwqDCsEMtMSAoYmV0d2VlbiAwIGFuZCAxMDDCoMKwQykiLCJzb3J0Tm8iOjN9LHsibmFtZSI6IkNvbm5lY3Rpb24gd2lyZXMiLCJ2YWx1ZSI6IkdvbGQtcGxhdGVkIG5pY2tlbCB3aXJlLCBleHRlbmRpbmcgdG93YXJkcyB0aGUgY2VudGVyIG9mIHRoZSBzZW5zb3IgKHJldmVyc2UpIiwic29ydE5vIjo0fSx7Im5hbWUiOiJQcm9jZXNzaW5nIiwidmFsdWUiOiJXZWxkaW5nLCBzb2xkZXJpbmcsIGFuZCBjcmltcGluZyIsInNvcnRObyI6NX0seyJuYW1lIjoiTWV0YWxsaXplZCBiYWNrIGNvdmVyIiwidmFsdWUiOiJOaWNrZWwvZ29sZCIsInNvcnRObyI6Nn0seyJuYW1lIjoiQWR2YW50YWdlcyIsInZhbHVlIjoiU29sZGVyYWJsZSBiYWNrIGNvdmVyIGZvciBiZXR0ZXIgdGhlcm1hbCBjb250YWN0LCBmb3IgY29uZmluZWQgc3BhY2VzLCBzdGFuZGFyZGl6ZWQgbm9taW5hbCB2YWx1ZXMgKFB0MTAwLCBQdDEwMDApLCBzdGFuZGFyZGl6ZWQgdG9sZXJhbmNlcywgaGlnaCBkZWdyZWUgb2YgbWVhc3VyaW5nIGFjY3VyYWN5LCBleGNlbGxlbnQgbG9uZy10ZXJtIHN0YWJpbGl0eSwgdmVyeSBnb29kIHJlcHJvZHVjaWJpbGl0eSBvZiBlbGVjdHJpY2FsIGNoYXJhY3RlcmlzdGljcyIsInNvcnRObyI6N30seyJuYW1lIjoiQXJlYXMgb2YgYXBwbGljYXRpb24iLCJ2YWx1ZSI6IkZsb3cgc2Vuc29ycywgaGVhdGluZyBlbmdpbmVlcmluZywgYWlyIGNvbmRpdGlvbmluZyB0ZWNobm9sb2d5LCB2ZW50aWxhdGlvbiB0ZWNobm9sb2d5LCBpbmR1c3RyaWFsIHRlY2hub2xvZ3ksIG1lZGljYWwgYW5kIGxhYm9yYXRvcnkgZW5naW5lZXJpbmcsIHdoaXRlIGdvb2RzLCBtZWNoYW5pY2FsIGVuZ2luZWVyaW5nLCBtb3RvciBhbmQgY29tbWVyY2lhbCB2ZWhpY2xlcyIsInNvcnRObyI6OH1dLCJoaWdobGlnaHRzIjpbeyJpY29uVGV4dCI6Imljb24tY2hpcCIsImRlc2NyaXB0aW9uIjoiU29sZGVyYWJsZSBtZXRhbGxpemVkIGJhY2sgY292ZXIiLCJ0eXBlIjoiSUNPTiJ9LHsiaWNvblRleHQiOiJpY29uLXN1Y2Nlc3MiLCJkZXNjcmlwdGlvbiI6IkZvciBjb25maW5lZCBzcGFjZXMiLCJ0eXBlIjoiSUNPTiJ9LHsiaWNvblRleHQiOiJpY29uLXRoZXJtb21ldGVyIiwiZGVzY3JpcHRpb24iOiJIaWdoIG1lYXN1cmluZyBhY2N1cmFjeSIsInR5cGUiOiJJQ09OIn1dLCJkaWZmZXJlbnRpYXRvcnMiOlt7InRleHQiOiJGb3IgdGVtcGVyYXR1cmVzIGZyb20gLTUwIHRvICsyNTDCoMKwQyIsInNvcnRObyI6MH0seyJ0ZXh0IjoiU29sZGVyYWJsZSBtZXRhbGxpemVkIGJhY2sgY292ZXIiLCJzb3J0Tm8iOjF9LHsidGV4dCI6IkZvciBjb25maW5lZCBzcGFjZXMiLCJzb3J0Tm8iOjJ9XX0=
title
Icon
icon-chip
Description
Solderable metallized back cover
Icon
icon-success
Description
For confined spaces
Icon
icon-thermometer
Description
High measuring accuracy
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=1234194
Design type
PCWRB-L-AuNi
Standard
DIN EN IEC 60751
Temperature range
-50 to +250 °C
Temperature coefficient
α = 3.850 × 10-3 °C-1 (between 0 and 100 °C)
Connection wires
Gold-plated nickel wire, extending towards the center of the sensor (reverse)
Processing
Welding, soldering, and crimping
Metallized back cover
Nickel/gold
Advantages
Solderable back cover for better thermal contact, for confined spaces, standardized nominal values (Pt100, Pt1000), standardized tolerances, high degree of measuring accuracy, excellent long-term stability, very good reproducibility of electrical characteristics
Areas of application
Flow sensors, heating engineering, air conditioning technology, ventilation technology, industrial technology, medical and laboratory engineering, white goods, mechanical engineering, motor and commercial vehicles
