Produkt Details
SKU
202763
Name

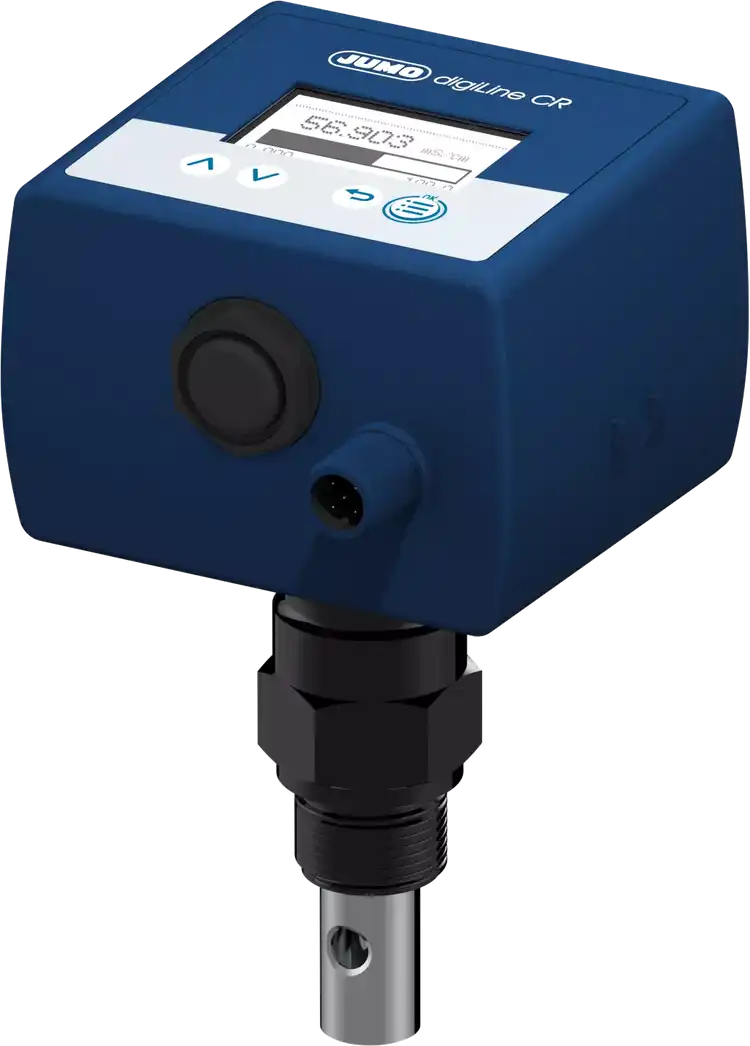

JUMO digiLine CR HT10
Description
JUMO digiLine CR now enables conductive conductivity sensors to be connected to the intelligent, bus-compatible JUMO digiLine system. System integration can now also take place via an IO-Link interface. The sensor is firmly connected to the head transmitter.
Short Description
Head transmitter with conductive two-electrode conductivity sensor type EC
Price
€0.00
Availability
In Stock
Images
State
LIVE
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9NzAzMzkyIiwiYmVuZWZpdHMiOltdLCJiZW5lZml0c0ludHJvZHVjdGlvbiI6IiIsInRlY2huaWNhbERhdGEiOlt7Im5hbWUiOiJNZWFzdXJpbmcgcHJpbmNpcGxlIiwidmFsdWUiOiJDb25kdWN0aXZlIiwic29ydE5vIjowfSx7Im5hbWUiOiJTZW5zb3IgY29ubmVjdGlvbiIsInZhbHVlIjoiQ29tcGFjdCBkZXNpZ24gdHlwZSIsInNvcnRObyI6MX0seyJuYW1lIjoiU2Vuc29yIG1hdGVyaWFsIiwidmFsdWUiOiJQUEU7IFBTIiwic29ydE5vIjoyfSx7Im5hbWUiOiJNZWFzdXJpbmcgcmFuZ2UiLCJ2YWx1ZSI6IjAuMcKgwrVTL2NtIHRvIDEwMMKgbVMvY20iLCJzb3J0Tm8iOjN9LHsibmFtZSI6IlRlbXBlcmF0dXJlIGNvbXBlbnNhdGlvbiIsInZhbHVlIjoiTGluZWFyLCBBU1RNLCBVU1AgPDY0NT4iLCJzb3J0Tm8iOjR9LHsibmFtZSI6IlRlbXBlcmF0dXJlIiwidmFsdWUiOiJNYXguIDYwwqDCsEMiLCJzb3J0Tm8iOjV9LHsibmFtZSI6IlByZXNzdXJlIiwidmFsdWUiOiJNYXguIDbCoGJhciIsInNvcnRObyI6Nn0seyJuYW1lIjoiSW50ZXJmYWNlcyIsInZhbHVlIjoiSlVNTyBkaWdpTGluZSBvciBJTy1MaW5rIiwic29ydE5vIjo3fSx7Im5hbWUiOiJBcmVhcyBvZiBhcHBsaWNhdGlvbiIsInZhbHVlIjoiR2VuZXJhbCB3YXRlciB0ZWNobm9sb2d5OyBkcmlua2luZyB3YXRlciwgc3VyZmFjZSB3YXRlciwgc3dpbW1pbmcgcG9vbCB3YXRlcjsgYWlyLWNvbmRpdGlvbmluZyBhbmQgY29vbGluZyBzeXN0ZW1zOyBob3J0aWN1bHR1cmFsIHRlY2hub2xvZ3k7IHNlYXdhdGVyIGFuZCBmcmVzaHdhdGVyIGFxdWFyaXN0aWNzOyBzbGlnaHRseSBzb2lsZWQgaW5kdXN0cmlhbCByaW5zaW5nIGFuZCBjbGVhbmluZyB3YXRlciwgcHJvY2VzcyB3YXRlcjsgdWx0cmEtcHVyZSB3YXRlciBtb25pdG9yaW5nOyByZXZlcnNlIG9zbW9zaXMgcGxhbnRzOyBFREkgKGVsZWN0cm9kZWlvbml6YXRpb24pOyBpb24gZXhjaGFuZ2VycyIsInNvcnRObyI6OH1dLCJoaWdobGlnaHRzIjpbeyJpY29uVGV4dCI6Imljb24tYWxhcm0iLCJkZXNjcmlwdGlvbiI6Ik9wdGltdW0gcHJvY2VzcyBtb25pdG9yaW5nIiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi1hbnNjaGx1ZXNzZSIsImRlc2NyaXB0aW9uIjoiRmxleGlibGUgY29ubmVjdGlvbiBvcHRpb25zIiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi13cmFuY2giLCJkZXNjcmlwdGlvbiI6IlByZWRpY3RpdmUgbWFpbnRlbmFuY2UgdGhhbmtzIHRvIEpVTU8gRFNNIiwidHlwZSI6IklDT04ifV0sImRpZmZlcmVudGlhdG9ycyI6W3sidGV4dCI6IkNvbXBhY3QgZGVzaWduIHR5cGUgd2l0aCBjb25kdWN0aXZlIHNlbnNvciIsInNvcnRObyI6MH0seyJ0ZXh0IjoiTWVhc3VyaW5nIHJhbmdlOiAwLjHCoMK1Uy9jbSB0b8KgMTAwwqBtUy9jbSIsInNvcnRObyI6MX0seyJ0ZXh0IjoiSlVNTyBkaWdpTGluZSBvciBJTy1MaW5rIGludGVyZmFjZSIsInNvcnRObyI6Mn1dfQ==
title
Icon
icon-alarm
Description
Optimum process monitoring
Icon
icon-anschluesse
Description
Flexible connection options
Icon
icon-wranch
Description
Predictive maintenance thanks to JUMO DSM
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=703392
Measuring principle
Conductive
Sensor connection
Compact design type
Sensor material
PPE; PS
Measuring range
0.1 µS/cm to 100 mS/cm
Temperature compensation
Linear, ASTM, USP <645>
Temperature
Max. 60 °C
Pressure
Max. 6 bar
Interfaces
JUMO digiLine or IO-Link
Areas of application
General water technology; drinking water, surface water, swimming pool water; air-conditioning and cooling systems; horticultural technology; seawater and freshwater aquaristics; slightly soiled industrial rinsing and cleaning water, process water; ultra-pure water monitoring; reverse osmosis plants; EDI (electrodeionization); ion exchangers
