Produkt Details
SKU
608225
Name

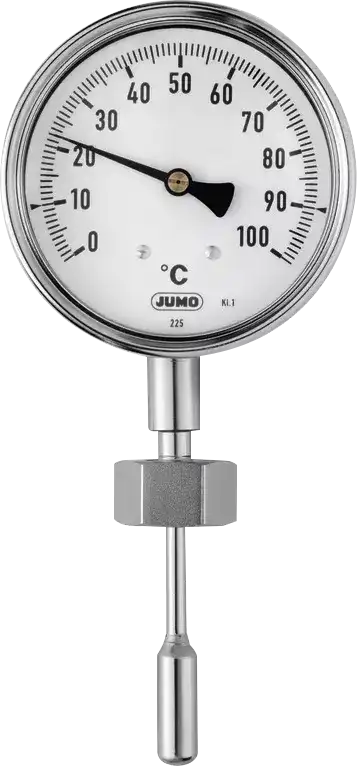

Dial thermometer
Description
Dial thermometers are universal devices used for temperature measurement and monitoring. The overall system is extremely warp resistant due to the direct connection of the indicator to the measuring system. Oscillations are transferred to the indicator only to a limited degree.
Short Description
For local monitoring
Price
€527.80
Availability
In Stock
Images
State
LIVE
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9NTY1MyIsImJlbmVmaXRzIjpbXSwiYmVuZWZpdHNJbnRyb2R1Y3Rpb24iOiIiLCJ0ZWNobmljYWxEYXRhIjpbeyJuYW1lIjoiRmVhdHVyZXMiLCJ2YWx1ZSI6IlRlbXBlcmF0dXJlIGNvbnRyb2xsZXIgaW4gZmx1c2gtbW91bnRlZCBvciBzdXJmYWNlLW1vdW50ZWQgaG91c2luZzsgYW1iaWVudCB0ZW1wZXJhdHVyZSBjb21wZW5zYXRpb24gYXMgYSBzdGFuZGFyZCBmZWF0dXJlIiwic29ydE5vIjowfSx7Im5hbWUiOiJBY2N1cmFjeSBjbGFzcyBhY2NvcmRpbmcgdG8gRElOIEVOIDEzMTkwIiwidmFsdWUiOiJDbGFzcyAxIiwic29ydE5vIjoxfSx7Im5hbWUiOiJDYXBpbGxhcnkvcmlnaWQgdGhlcm1vd2VsbCIsInZhbHVlIjoiQ2FwaWxsYXJ5IGxlbmd0aCB1cCB0byAxMCwwMDDCoG1tIHBvc3NpYmxlIiwic29ydE5vIjoyfSx7Im5hbWUiOiJQcm9iZSBvdXRsZXQiLCJ2YWx1ZSI6IlZlcnRpY2FsIG9yIGhvcml6b250YWwiLCJzb3J0Tm8iOjN9LHsibmFtZSI6IkNhc2Ugc2l6ZSIsInZhbHVlIjoiMTAwwqBtbSwgMTYwwqBtbSIsInNvcnRObyI6NH0seyJuYW1lIjoiQXBwcm92YWwiLCJ2YWx1ZSI6IkFURVgiLCJzb3J0Tm8iOjV9LHsibmFtZSI6IkFyZWFzIG9mIGFwcGxpY2F0aW9uIiwidmFsdWUiOiJNZWNoYW5pY2FsIGVuZ2luZWVyaW5nLCBwcm9jZXNzIHRlY2hub2xvZ3ksIGdlYXJib3ggY29uc3RydWN0aW9uLCBjaGVtaWNhbCBpbmR1c3RyeSwgcGxhbnQgZW5naW5lZXJpbmciLCJzb3J0Tm8iOjZ9LHsibmFtZSI6Ik1lYXN1cmluZyByYW5nZSIsInZhbHVlIjoiLTQwwqB0b8KgKzQ1MMKgwrBDIiwic29ydE5vIjo3fSx7Im5hbWUiOiJEaXNwbGF5IHJhbmdlIiwidmFsdWUiOiItNDAgdG8gKzUwMMKgwrBDIiwic29ydE5vIjo4fV0sImhpZ2hsaWdodHMiOlt7Imljb25UZXh0IjoiaWNvbi1iYXR0ZXJ5LWZ1bGwiLCJkZXNjcmlwdGlvbiI6IldpdGhvdXQgYXV4aWxpYXJ5IGVuZXJneSIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24tdGhlcm1vbWV0ZXIiLCJkZXNjcmlwdGlvbiI6IkNhcGlsbGFyeSBtZWFzdXJpbmcgc3lzdGVtIiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi1tb25pdG9yIiwiZGVzY3JpcHRpb24iOiJBY2N1cmFjeSBjbGFzcyAxIiwidHlwZSI6IklDT04ifV0sImRpZmZlcmVudGlhdG9ycyI6W3sidGV4dCI6Ik1heC4gY2FzZSBzaXplOiDDmMKgMTYwwqBtbSIsInNvcnRObyI6MH0seyJ0ZXh0IjoiTWVhc3VyZW1lbnQgcmFuZ2U6IC00MCB0byArNDUwwqDCsEMiLCJzb3J0Tm8iOjF9LHsidGV4dCI6IkFjY3VyYWN5IGNsYXNzIDEiLCJzb3J0Tm8iOjJ9XX0=
title
Icon
icon-battery-full
Description
Without auxiliary energy
Icon
icon-thermometer
Description
Capillary measuring system
Icon
icon-monitor
Description
Accuracy class 1
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=5653
Features
Temperature controller in flush-mounted or surface-mounted housing; ambient temperature compensation as a standard feature
Accuracy class according to DIN EN 13190
Class 1
Capillary/rigid thermowell
Capillary length up to 10,000 mm possible
Probe outlet
Vertical or horizontal
Case size
100 mm, 160 mm
Approval
ATEX
Areas of application
Mechanical engineering, process technology, gearbox construction, chemical industry, plant engineering
Measuring range
-40 to +450 °C
Display range
-40 to +500 °C
