Produkt Details
SKU
901110
Name

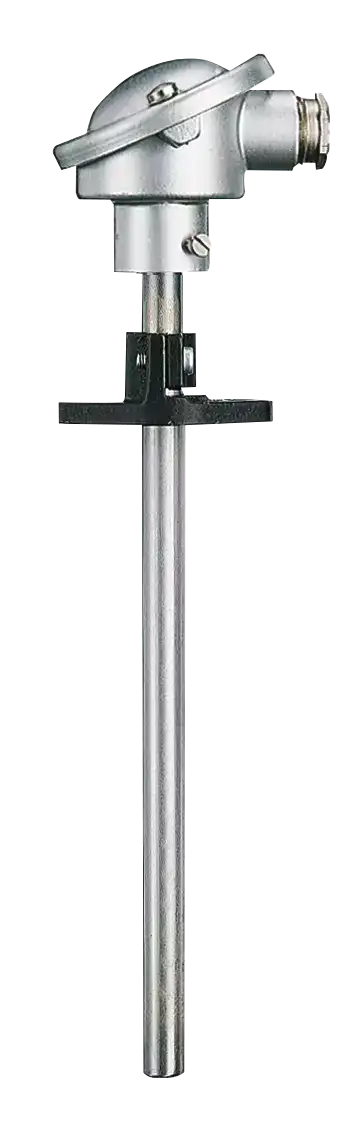

Push-in thermocouples
Description
Push-in thermocouples are predominantly used for measuring temperatures in liquid and gaseous media. Thermowells made of various ceramic materials and heat-resistant steels protect the measuring insert against chemical influences and mechanical damage.
Short Description
With form A terminal head
Availability
In Stock
Images
State
LIVE
Variants
Diameter prot. tube
Measuring insert
- 1x NiCr-Ni K, operating temperature -200 ... +1200°C ✓
- 2x NiCr-Ni K, operating temperature -200 ... +1200°C ✓
Nominal length
- 1000mm, fitting length (EL) 100 ... 960mm ✓
- 500mm, fitting length (EL) 100 ... 460mm ✓
- 710mm, fitting length (EL) 100 ... 670mm ✓
Basic type
- Push-in thermocouple with continuous thermowell made of heat-resistant steel ✓
- Push-in thermocouple with stepped ceramic thermowell ✓
Protection tube material
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9NDcxMyIsImJlbmVmaXRzIjpbXSwiYmVuZWZpdHNJbnRyb2R1Y3Rpb24iOiIiLCJ0ZWNobmljYWxEYXRhIjpbeyJuYW1lIjoiQ29ubmVjdGlvbiIsInZhbHVlIjoiSGVhZCIsInNvcnRObyI6MH0seyJuYW1lIjoiUHJvdGVjdGlvbiBmaXR0aW5nIiwidmFsdWUiOiJIaWdoLXRlbXBlcmF0dXJlIHN0ZWVsLCBjZXJhbWljIiwic29ydE5vIjoxfSx7Im5hbWUiOiJNZWFzdXJpbmcgY2lyY3VpdHMiLCJ2YWx1ZSI6IjEvMiIsInNvcnRObyI6Mn0seyJuYW1lIjoiQXJlYXMgb2YgYXBwbGljYXRpb24iLCJ2YWx1ZSI6IkZ1cm5hY2UgY29uc3RydWN0aW9uLCBzbWVsdGVyaWVzLCByb2xsaW5nIG1pbGxzLCBzdGVlbCBwbGFudHMsIGlyb24gcGxhbnRzLCB3YXN0ZSBpbmNpbmVyYXRpb24iLCJzb3J0Tm8iOjN9LHsibmFtZSI6Ik9wZXJhdGluZyB0ZW1wZXJhdHVyZSIsInZhbHVlIjoiLTIwMMKgdG/CoCsxNjAwwqDCsEMiLCJzb3J0Tm8iOjR9LHsibmFtZSI6IlNwZWNpYWwgZmVhdHVyZXMiLCJ2YWx1ZSI6IkNvbXBsaWVzIHdpdGggc3BlY2lmaWNhdGlvbiBhY2NvcmRpbmcgdG8gQU1TMjc1MCBFIGFuZCBDUUktOSIsInNvcnRObyI6NX0seyJuYW1lIjoiRmVhdHVyZXMiLCJ2YWx1ZSI6IlN0cmFpZ2h0IHRoZXJtb2NvdXBsZXMgYWNjb3JkaW5nIHRvIERJTiBFTiA1MDQ0NiIsInNvcnRObyI6Nn0seyJuYW1lIjoiUHJvdGVjdGlvbiB0eXBlIiwidmFsdWUiOiJJUDU0Iiwic29ydE5vIjo3fSx7Im5hbWUiOiJPcHRpb24iLCJ2YWx1ZSI6IkhlYWQgdHJhbnNtaXR0ZXIiLCJzb3J0Tm8iOjh9LHsibmFtZSI6IkFwcHJvdmFscyIsInZhbHVlIjoiTWV0cm9sb2dpY2FsIHJlZ2lzdHJhdGlvbiwgU0lMIiwic29ydE5vIjo5fSx7Im5hbWUiOiJQcm9jZXNzIGNvbm5lY3Rpb24iLCJ2YWx1ZSI6IkZsYW5nZSwgY29tcHJlc3Npb24gZml0dGluZyIsInNvcnRObyI6MTB9LHsibmFtZSI6IlRoZXJtb3BhaXJzIiwidmFsdWUiOiJKLCBMLCBLLCBTLCBCIiwic29ydE5vIjoxMX1dLCJoaWdobGlnaHRzIjpbeyJpY29uVGV4dCI6Imljb24tdGhlcm1vbWV0ZXIiLCJkZXNjcmlwdGlvbiI6IlNpbmdsZSBhbmQgZG91YmxlIHRoZXJtb2NvdXBsZSIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24tc2hpZWxkIiwiZGVzY3JpcHRpb24iOiJJbnN0YWxsYXRpb24gbG9jYXRpb24gc2VhbGVkIHVwIHRvIDHCoGJhciIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24tY2FydCIsImRlc2NyaXB0aW9uIjoiVHJhbnNtaXR0ZXIgYXZhaWxhYmxlIiwidHlwZSI6IklDT04ifV0sImRpZmZlcmVudGlhdG9ycyI6W3sidGV4dCI6IlRlbXAuOiAtMjAwwqB0b8KgKzE2MDDCoMKwQyIsInNvcnRObyI6MH0seyJ0ZXh0IjoiUHJvdGVjdGlvbiB0dWJlIGRpYW1ldGVyIDE1IG9yIDIywqBtbSIsInNvcnRObyI6MX0seyJ0ZXh0IjoiVGhlcm1vY291cGxlcyB0eXBlIEIsIEosIEssIEwsIGFuZCBTIiwic29ydE5vIjoyfV19
title
Icon
icon-thermometer
Description
Single and double thermocouple
Icon
icon-shield
Description
Installation location sealed up to 1 bar
Icon
icon-cart
Description
Transmitter available
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=4713
Connection
Head
Protection fitting
High-temperature steel, ceramic
Measuring circuits
1/2
Areas of application
Furnace construction, smelteries, rolling mills, steel plants, iron plants, waste incineration
Operating temperature
-200 to +1600 °C
Special features
Complies with specification according to AMS2750 E and CQI-9
Features
Straight thermocouples according to DIN EN 50446
Protection type
IP54
Option
Head transmitter
Approvals
Metrological registration, SIL
Process connection
Flange, compression fitting
Thermopairs
J, L, K, S, B
