SKU
906143
Name

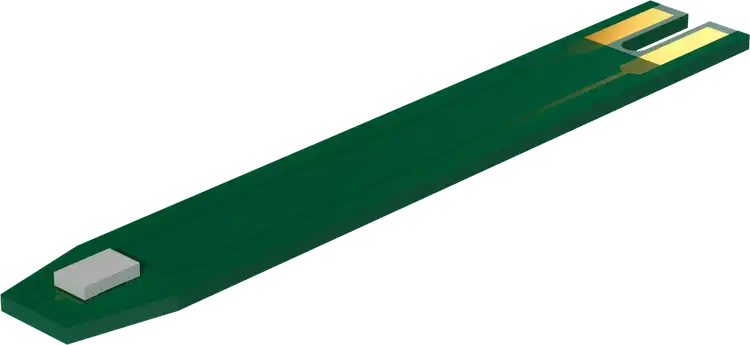

PCB-B-Au measuring inserts
Description
Temperature sensors of the PCB-B-Au design type are pre-assembled measuring inserts, which are equipped with platinum chip temperature sensors in SMD design type. The circuit board is connected via gold-plated solder contacts.
Short Description
with platinum chip temperature sensors of SMD design type according to DIN EN 60 751
Price
€0.00
Availability
In Stock
Images
State
LIVE
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9MTIzNDIzMiIsImJlbmVmaXRzIjpbXSwiYmVuZWZpdHNJbnRyb2R1Y3Rpb24iOiIiLCJ0ZWNobmljYWxEYXRhIjpbeyJuYW1lIjoiRGVzaWduIHR5cGUiLCJ2YWx1ZSI6IlBDQi1CLUF1Iiwic29ydE5vIjowfSx7Im5hbWUiOiJTdGFuZGFyZCIsInZhbHVlIjoiRElOIEVOIElFQyA2MDc1MSIsInNvcnRObyI6MX0seyJuYW1lIjoiVGVtcGVyYXR1cmUgcmFuZ2UiLCJ2YWx1ZSI6Ii0yMCB0byArMTUwIMKwQyIsInNvcnRObyI6Mn0seyJuYW1lIjoiVGVtcGVyYXR1cmUgY29lZmZpY2llbnQiLCJ2YWx1ZSI6Is6xID0gMy44NTAgw5cgMTAtM8KgwrBDLTEgKGJldHdlZW4gMCBhbmQgMTAwwqDCsEMpIiwic29ydE5vIjozfSx7Im5hbWUiOiJDb25uZWN0aW9uIiwidmFsdWUiOiJDaGVtaWNhbCBuaWNrZWwgLSBnb2xkIElQQy00NTUyIiwic29ydE5vIjo0fSx7Im5hbWUiOiJCYXNlIG1hdGVyaWFsIiwidmFsdWUiOiJGUi00Iiwic29ydE5vIjo1fSx7Im5hbWUiOiJBZHZhbnRhZ2VzIiwidmFsdWUiOiJQcmUtYXNzZW1ibGVkIGZvciBlYXN5IGZ1cnRoZXIgcHJvY2Vzc2luZywgZm9yIHRoZSBhc3NlbWJseSBvZiBzaW1wbGUgdGVtcGVyYXR1cmUgcHJvYmVzLCBhdmFpbGFibGUgaW4gbGFyZ2UgcXVhbnRpdGllcyBhdCBsb3cgY29zdCwgaGlnaCBtZWFzdXJpbmcgYWNjdXJhY3ksIGhpZ2ggbG9uZy10ZXJtIHN0YWJpbGl0eSwgc3RhbmRhcmRpemVkIG5vbWluYWwgdmFsdWVzIGFuZCB0b2xlcmFuY2VzLCBmYXN0IHJlc3BvbnNlIGJlaGF2aW9yIiwic29ydE5vIjo2fSx7Im5hbWUiOiJBcmVhcyBvZiBhcHBsaWNhdGlvbiIsInZhbHVlIjoiSGVhdCBtZXRlcnMsIGhlYXRpbmcsIGFpciBjb25kaXRpb25pbmcsIHZlbnRpbGF0aW9uIChIVkFDKSwgbWVkaWNhbCBhbmQgbGFib3JhdG9yeSB0ZWNobm9sb2d5LCBtZWNoYW5pY2FsIGVuZ2luZWVyaW5nLCB3aGl0ZSBnb29kcywgbW90b3IgYW5kIGNvbW1lcmNpYWwgdmVoaWNsZXMiLCJzb3J0Tm8iOjd9XSwiaGlnaGxpZ2h0cyI6W3siaWNvblRleHQiOiJpY29uLWNoaXAiLCJkZXNjcmlwdGlvbiI6IlByZS1hc3NlbWJsZWQiLCJ0eXBlIjoiSUNPTiJ9LHsiaWNvblRleHQiOiJpY29uLWNoZWNrIiwiZGVzY3JpcHRpb24iOiJGb3IgdGhlIGFzc2VtYmx5IG9mIHNpbXBsZSB0ZW1wZXJhdHVyZSBwcm9iZXMiLCJ0eXBlIjoiSUNPTiJ9LHsiaWNvblRleHQiOiJpY29uLWNhbGN1bGF0b3IiLCJkZXNjcmlwdGlvbiI6IkF2YWlsYWJsZSBpbiBsYXJnZSBxdWFudGl0aWVzIGF0IGxvdyBjb3N0IiwidHlwZSI6IklDT04ifV0sImRpZmZlcmVudGlhdG9ycyI6W3sidGV4dCI6IlByZS1hc3NlbWJsZWQiLCJzb3J0Tm8iOjB9LHsidGV4dCI6IlN0YW5kYXJkaXplZCBub21pbmFsIHZhbHVlcyBhbmQgdG9sZXJhbmNlcyIsInNvcnRObyI6MX0seyJ0ZXh0IjoiQ3VzdG9tZXItc3BlY2lmaWMgdmVyc2lvbnMiLCJzb3J0Tm8iOjJ9XX0=
title
Icon
icon-chip
Description
Pre-assembled
Icon
icon-check
Description
For the assembly of simple temperature probes
Icon
icon-calculator
Description
Available in large quantities at low cost
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=1234232
Design type
PCB-B-Au
Standard
DIN EN IEC 60751
Temperature range
-20 to +150 °C
Temperature coefficient
α = 3.850 × 10-3 °C-1 (between 0 and 100 °C)
Connection
Chemical nickel - gold IPC-4552
Base material
FR-4
Advantages
Pre-assembled for easy further processing, for the assembly of simple temperature probes, available in large quantities at low cost, high measuring accuracy, high long-term stability, standardized nominal values and tolerances, fast response behavior
Areas of application
Heat meters, heating, air conditioning, ventilation (HVAC), medical and laboratory technology, mechanical engineering, white goods, motor and commercial vehicles
