Produkt Details
SKU
603035
Name

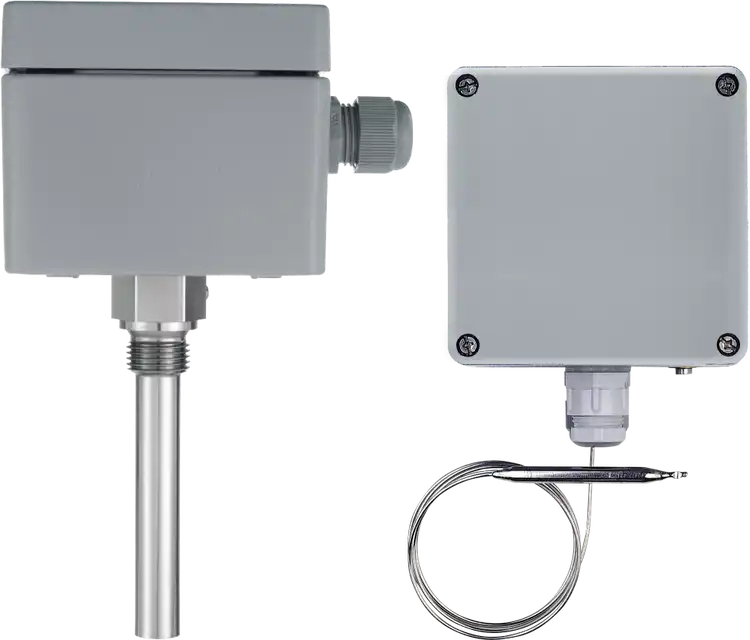

Surface-mounted single thermostat or surface-mounted double thermostat
Description
Surface-mounted thermostats of the ATH-SW type series consist of 1 or 2 separate measuring and switching systems. The devices are available as temperature monitors (TW), safety temperature monitors (STW), and safety temperature limiters (STB).
Short Description
ATH-SW series
Price
€0.00
Availability
In Stock
Images
State
LIVE
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9NTUzNyIsImJlbmVmaXRzIjpbXSwiYmVuZWZpdHNJbnRyb2R1Y3Rpb24iOiIiLCJ0ZWNobmljYWxEYXRhIjpbeyJuYW1lIjoiVmVyc2lvbnMiLCJ2YWx1ZSI6IlRlbXBlcmF0dXJlIGNvbnRyb2xsZXIgKFRSKSwgdGVtcGVyYXR1cmUgbW9uaXRvciAoVFcpLCBzYWZldHkgdGVtcGVyYXR1cmUgbW9uaXRvciAoU1RXKSwgc2FmZXR5IHRlbXBlcmF0dXJlIGxpbWl0ZXIgKFNUQikiLCJzb3J0Tm8iOjB9LHsibmFtZSI6IlN3aXRjaGluZyBlbGVtZW50cyIsInZhbHVlIjoiU2luZ2xlLXBvbGUgc25hcC1hY3Rpb24gc3dpdGNoIiwic29ydE5vIjoxfSx7Im5hbWUiOiJBcmVhcyBvZiBhcHBsaWNhdGlvbiIsInZhbHVlIjoiSGVhdGluZyBpbmR1c3RyeSwgYWlyLWNvbmRpdGlvbmluZyBpbmR1c3RyeSwgZ2VuZXJhbCBtZWNoYW5pY2FsIGVuZ2luZWVyaW5nIiwic29ydE5vIjoyfSx7Im5hbWUiOiJTd2l0Y2hpbmcgY2FwYWNpdHkiLCJ2YWx1ZSI6IjEwwqBBLCAyMzDCoFYiLCJzb3J0Tm8iOjN9LHsibmFtZSI6IkZlYXR1cmVzIiwidmFsdWUiOiJTaW5nbGUgdGhlcm1vc3RhdCwgZG91YmxlIHRoZXJtb3N0YXQiLCJzb3J0Tm8iOjR9LHsibmFtZSI6IkFwcHJvdmFscyIsInZhbHVlIjoiRElOLCAoUEVELCBFQUM7IHR5cGUgNjAzMDIxLCA2MDMwMjYpIiwic29ydE5vIjo1fSx7Im5hbWUiOiJNYXhpbXVtIGNvbnRyb2wgcmFuZ2UvbGltaXQgdmFsdWUiLCJ2YWx1ZSI6IjUwMMKgwrBDIiwic29ydE5vIjo2fSx7Im5hbWUiOiJQcm90ZWN0aW9uIHR5cGUiLCJ2YWx1ZSI6IklQNTQ7IElQNjUgKHR5cGUgNjAzMDM1KSIsInNvcnRObyI6N31dLCJoaWdobGlnaHRzIjpbeyJpY29uVGV4dCI6Imljb24tYW5zY2hsdWVzc2UiLCJkZXNjcmlwdGlvbiI6IlNlcGFyYXRlIG1lYXN1cmluZyBhbmQgc3dpdGNoaW5nIHN5c3RlbXMiLCJ0eXBlIjoiSUNPTiJ9LHsiaWNvblRleHQiOiJpY29uLW1vdXNlIiwiZGVzY3JpcHRpb24iOiJNaWNyb3N3aXRjaCIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24tc3Rhci1vdXRsaW5lIiwiZGVzY3JpcHRpb24iOiJJbXBlcnZpb3VzIHRvIGVudmlyb25tZW50YWwgaW5mbHVlbmNlcyIsInR5cGUiOiJJQ09OIn1dLCJkaWZmZXJlbnRpYXRvcnMiOlt7InRleHQiOiJNYXRlcmlhbDogc3RhaW5sZXNzIHN0ZWVsL2NvcHBlciIsInNvcnRObyI6MH0seyJ0ZXh0IjoiTWF4LiBjYXBpbGxhcnk6IDUwMDDCoG1tIiwic29ydE5vIjoxfSx7InRleHQiOiJNYXguIGNvbnRyb2wgcmFuZ2U6IDIwIHRvIDUwMMKgwrBDIiwic29ydE5vIjoyfV19
title
Icon
icon-anschluesse
Description
Separate measuring and switching systems
Icon
icon-mouse
Description
Microswitch
Icon
icon-star-outline
Description
Impervious to environmental influences
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=5537
Versions
Temperature controller (TR), temperature monitor (TW), safety temperature monitor (STW), safety temperature limiter (STB)
Switching elements
Single-pole snap-action switch
Areas of application
Heating industry, air-conditioning industry, general mechanical engineering
Switching capacity
10 A, 230 V
Features
Single thermostat, double thermostat
Approvals
DIN, (PED, EAC; type 603021, 603026)
Maximum control range/limit value
500 °C
Protection type
IP54; IP65 (type 603035)
