Produkt Details
SKU
902437
Name

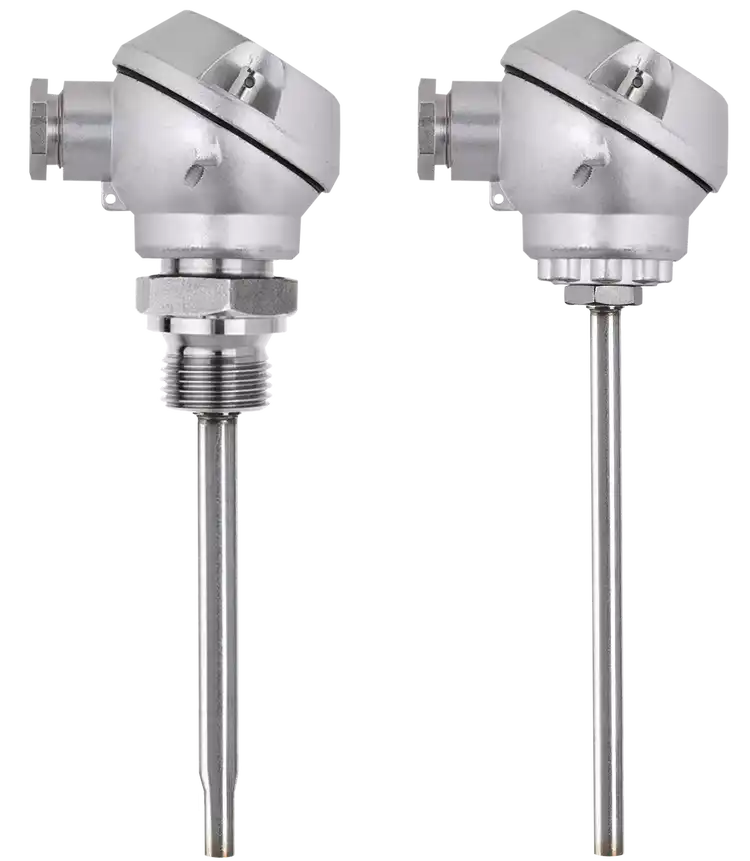

JUMO HEATtemp
Description
Heat meter RTD temperature probes are used for temperature measurement in closed pipeline systems. Due to the installation in immersion sleeves with fitting tolerance, the system no longer needs to be emptied during regular replacement once the certification period has elapsed.
Short Description
Push-in RTD temperature probes for heat meters with terminal head for immersion sleeves (type PL)
Price
€0.00
Availability
In Stock
Images
State
LIVE
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9NjM2OTA5IiwiYmVuZWZpdHMiOltdLCJiZW5lZml0c0ludHJvZHVjdGlvbiI6IiIsInRlY2huaWNhbERhdGEiOlt7Im5hbWUiOiJNaW5pbXVtIGltbWVyc2lvbiBkZXB0aCIsInZhbHVlIjoiMjXCoG1tIiwic29ydE5vIjowfSx7Im5hbWUiOiJBcmVhcyBvZiBhcHBsaWNhdGlvbiIsInZhbHVlIjoiSGVhdCBhbmQgY29sZCBtZXRlcnMiLCJzb3J0Tm8iOjF9LHsibmFtZSI6Ikluc2VydGlvbiBsZW5ndGgiLCJ2YWx1ZSI6Ijg1IHRvIDQwMMKgbW0iLCJzb3J0Tm8iOjJ9LHsibmFtZSI6IlByb2Nlc3MgY29ubmVjdGlvbiIsInZhbHVlIjoiVGhyZWFkIEfCoDEvMiwgc3RhaW5sZXNzIHN0ZWVsIiwic29ydE5vIjozfSx7Im5hbWUiOiJPcGVyYXRpbmcgdGVtcGVyYXR1cmUiLCJ2YWx1ZSI6IjAgdG8gMTgwwqDCsEMiLCJzb3J0Tm8iOjR9LHsibmFtZSI6IlRlbXBlcmF0dXJlIGRpZmZlcmVuY2UiLCJ2YWx1ZSI6IjMgdG8gMTgwwqBLIiwic29ydE5vIjo1fSx7Im5hbWUiOiJUZXJtaW5hbCBoZWFkIiwidmFsdWUiOiJUeXBlIEoiLCJzb3J0Tm8iOjZ9LHsibmFtZSI6IkZlYXR1cmVzIiwidmFsdWUiOiJQYWlyZWQgYWNjb3JkaW5nIHRvIEV1cm9wZWFuIE1JRCBkaXJlY3RpdmUgYW5kL29yIEdlcm1hbiBsYXcgb24gd2VpZ2h0cyBhbmQgbWVhc3VyZXMgKE1lc3NFRykgaW5jbHVkaW5nIGRlY2xhcmF0aW9uIG9mIGNvbmZvcm1pdHkgKGNvbmZvcm1pdHkgYW5kIGFkZGl0aW9uYWwgbWV0cm9sb2d5IG1hcmtpbmcpLiBQcm9kdWN0aW9uIGNlcnRpZmllZCBhY2NvcmRpbmcgdG8gbW9kdWxlIEQgb2YgdGhlIE1JRCBhbmQgR2VybWFuIG9yZGluYW5jZSBvbiB3ZWlnaHRzIGFuZCBtZWFzdXJlcyAoTWVzc0VWKS4iLCJzb3J0Tm8iOjd9LHsibmFtZSI6IlByb3RlY3Rpb24gZml0dGluZyIsInZhbHVlIjoiU3RhaW5sZXNzIHN0ZWVsIDbCoG1tIiwic29ydE5vIjo4fSx7Im5hbWUiOiJBcHByb3ZhbHMiLCJ2YWx1ZSI6Ik1JRCBhbmQgZG9tZXN0aWMgdHlwZSBleGFtaW5hdGlvbiBjZXJ0aWZpY2F0ZXMgZm9yIHRlbXBlcmF0dXJlIHByb2JlcyBmb3IgaGVhdCBtZXRlcnMsIGNvbGQgbWV0ZXJzLCBhbmQgY29tYmluZWQgY29sZC9oZWF0IG1ldGVyczsgZnVsZmlsbHMgdGhlIHJlcXVpcmVtZW50cyBvZiBESU4gRU4gMTQzNCwgQUdGVyBGVyAyMDIgRlcgMjEyLCBUUiBLOCwgYW5kIFRSIEsxMSIsInNvcnRObyI6OX0seyJuYW1lIjoiVGVtcGVyYXR1cmUgc2Vuc29yIiwidmFsdWUiOiJQdDEwMCwgUHQ1MDAsIFB0MTAwMCIsInNvcnRObyI6MTB9LHsibmFtZSI6Ik9wdGlvbiIsInZhbHVlIjoiVHdvLXdpcmUgb3IgZm91ci13aXJlIGNpcmN1aXQsIHRlcm1pbmFsIGhlYWQsIHR5cGUgQiIsInNvcnRObyI6MTF9XSwiaGlnaGxpZ2h0cyI6W3siaWNvblRleHQiOiJpY29uLWZpbGUtY2hlY2tlZCIsImRlc2NyaXB0aW9uIjoiQ2VydGlmaWVkIGFjY29yZGluZyB0byBtb2R1bGUgRCAoTUlEKSIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24tYm9vay1jaGVja2VkIiwiZGVzY3JpcHRpb24iOiJESU4gRU4gMTQzNCwgQUdGVyBGVyAyMDIsIGFuZCBGVyAyMTEiLCJ0eXBlIjoiSUNPTiJ9LHsiaWNvblRleHQiOiJpY29uLWNoZWNrIiwiZGVzY3JpcHRpb24iOiJDb25mb3JtaXR5IGFjY29yZGluZyB0byBNSUQiLCJ0eXBlIjoiSUNPTiJ9XSwiZGlmZmVyZW50aWF0b3JzIjpbeyJ0ZXh0IjoiVGVtcC46IDAgdG8gMTgwwqDCsEMiLCJzb3J0Tm8iOjB9LHsidGV4dCI6IlRlbXBlcmF0dXJlIHNlbnNvcjogUHQxMDAsIFB0NTAwLCBQdDEwMDAiLCJzb3J0Tm8iOjF9LHsidGV4dCI6Ikluc2VydGlvbiBsZW5ndGggODUgdG8gNDAwwqBtbSIsInNvcnRObyI6Mn1dfQ==
title
Icon
icon-file-checked
Description
Certified according to module D (MID)
Icon
icon-book-checked
Description
DIN EN 1434, AGFW FW 202, and FW 211
Icon
icon-check
Description
Conformity according to MID
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=636909
Minimum immersion depth
25 mm
Areas of application
Heat and cold meters
Insertion length
85 to 400 mm
Process connection
Thread G 1/2, stainless steel
Operating temperature
0 to 180 °C
Temperature difference
3 to 180 K
Terminal head
Type J
Features
Paired according to European MID directive and/or German law on weights and measures (MessEG) including declaration of conformity (conformity and additional metrology marking). Production certified according to module D of the MID and German ordinance on weights and measures (MessEV).
Protection fitting
Stainless steel 6 mm
Approvals
MID and domestic type examination certificates for temperature probes for heat meters, cold meters, and combined cold/heat meters; fulfills the requirements of DIN EN 1434, AGFW FW 202 FW 212, TR K8, and TR K11
Temperature sensor
Pt100, Pt500, Pt1000
Option
Two-wire or four-wire circuit, terminal head, type B
