Produkt Details
SKU
202756
Name

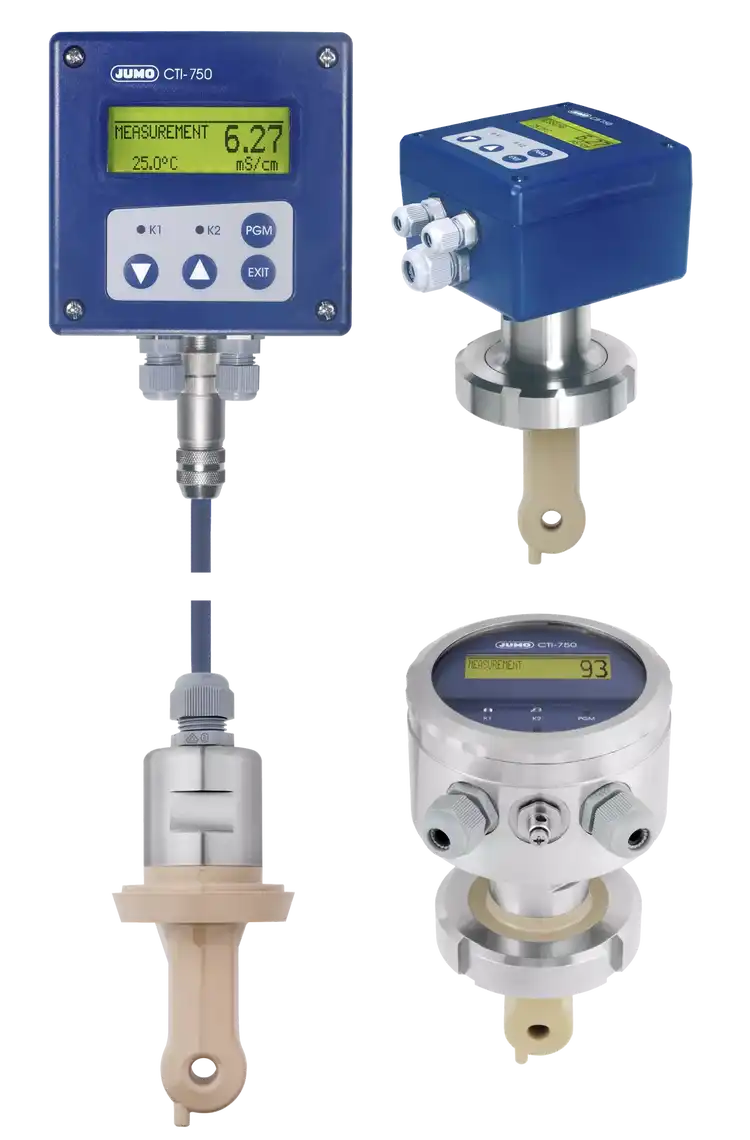

JUMO CTI-750
Description
The device is used for measuring and controlling the conductivity or the concentration of liquid media. The integrated temperature measurement enables precise and quick temperature compensation. Additional functions allow for optimum use in CIP processes.
Short Description
Inductive conductivity transmitter with switching contacts
Availability
In Stock
Images
State
TOP_SELLER
Variants
Process connection
Insertion length (mm)
Electrical connection
Basic type
Extra code 767
Extra code 768
Extra code 941
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9MzgyNCIsImJlbmVmaXRzIjpbXSwiYmVuZWZpdHNJbnRyb2R1Y3Rpb24iOiIiLCJ0ZWNobmljYWxEYXRhIjpbeyJuYW1lIjoiTWVhc3VyYW5kcyIsInZhbHVlIjoiQ29uZHVjdGl2aXR5OyBjb25jZW50cmF0aW9uIG9mIE5hT0gsIEhOTzM7IHRlbXBlcmF0dXJlIiwic29ydE5vIjowfSx7Im5hbWUiOiJTZW5zb3IgbWF0ZXJpYWwiLCJ2YWx1ZSI6IlBFRUsgb3IgUFZERiIsInNvcnRObyI6MX0seyJuYW1lIjoiTW91bnRpbmciLCJ2YWx1ZSI6IlBpcGUgbW91bnRpbmcsIHdhbGwgbW91bnRpbmciLCJzb3J0Tm8iOjJ9LHsibmFtZSI6Ik91dHB1dHMiLCJ2YWx1ZSI6IjIgb3V0cHV0cyBhbmQgMiBwb3RlbnRpYWwtZnJlZSBjb250YWN0cyIsInNvcnRObyI6M30seyJuYW1lIjoiRmVhdHVyZXMiLCJ2YWx1ZSI6IkhhcyBpdHMgb3duIGNoYXJhY3RlcmlzdGljIGxpbmUgZm9yIGRpc3BsYXlpbmcgY29uY2VudHJhdGlvbjsgZWFzeS10by11c2UgcHJvZ3JhbW1pbmcgd2l0aCBzZXR1cCBwcm9ncmFtOyBzdWl0YWJsZSBmb3IgQ0lQIGFuZCBTSVAiLCJzb3J0Tm8iOjR9LHsibmFtZSI6IlZlcnNpb25zIiwidmFsdWUiOiJDb21iaW5lZCB1bml0ICh0cmFuc21pdHRlciBhbmQgbWVhc3VyaW5nIGNlbGwgaW4gb25lIGRldmljZSk7IHNwbGl0IHZlcnNpb24gKHRyYW5zbWl0dGVyIGFuZCBtZWFzdXJpbmcgY2VsbCBjb25uZWN0ZWQgdmlhIGNhYmxlKSIsInNvcnRObyI6NX0seyJuYW1lIjoiUHJvdGVjdGlvbiB0eXBlIiwidmFsdWUiOiJJUDY3Iiwic29ydE5vIjo2fSx7Im5hbWUiOiJBcmVhcyBvZiBhcHBsaWNhdGlvbiIsInZhbHVlIjoiRm9vZCBhbmQgYmV2ZXJhZ2UgaW5kdXN0cnk7IENJUCBhbmQgU0lQIHBsYW50czsgY29uY2VudHJhdGlvbiBtZWFzdXJlbWVudCBvZiBhY2lkcyBhbmQgbHllcyIsInNvcnRObyI6N31dLCJoaWdobGlnaHRzIjpbeyJpY29uVGV4dCI6Imljb24tc2hhcmUtMyIsImRlc2NyaXB0aW9uIjoiQWN0aXZhdGlvbiBvZiA0IG1lYXN1cmluZyByYW5nZXMiLCJ0eXBlIjoiSUNPTiJ9LHsiaWNvblRleHQiOiJpY29uLXRoZXJtb21ldGVyIiwiZGVzY3JpcHRpb24iOiJBIGZhc3QtcmVzcG9uc2UgdGVtcGVyYXR1cmUgc2Vuc29yIiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi1jaGVjay1kYXJrIiwiZGVzY3JpcHRpb24iOiJDb25jZW50cmF0aW9uIG1lYXN1cmVtZW50IiwidHlwZSI6IklDT04ifV0sImRpZmZlcmVudGlhdG9ycyI6W3sidGV4dCI6IkZvciBpbmR1Y3RpdmUgY29uZHVjdGl2aXR5IHNlbnNvcnMiLCJzb3J0Tm8iOjB9LHsidGV4dCI6IlNlcGFyYXRlIG9yIGNvbXBhY3QgZGVzaWduIHR5cGUiLCJzb3J0Tm8iOjF9LHsidGV4dCI6IkZvciBDSVAgY2xlYW5pbmciLCJzb3J0Tm8iOjJ9XX0=
title
Icon
icon-share-3
Description
Activation of 4 measuring ranges
Icon
icon-thermometer
Description
A fast-response temperature sensor
Icon
icon-check-dark
Description
Concentration measurement
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=3824
Measurands
Conductivity; concentration of NaOH, HNO3; temperature
Sensor material
PEEK or PVDF
Mounting
Pipe mounting, wall mounting
Outputs
2 outputs and 2 potential-free contacts
Features
Has its own characteristic line for displaying concentration; easy-to-use programming with setup program; suitable for CIP and SIP
Versions
Combined unit (transmitter and measuring cell in one device); split version (transmitter and measuring cell connected via cable)
Protection type
IP67
Areas of application
Food and beverage industry; CIP and SIP plants; concentration measurement of acids and lyes
