Produkt Details
SKU
903530
Name

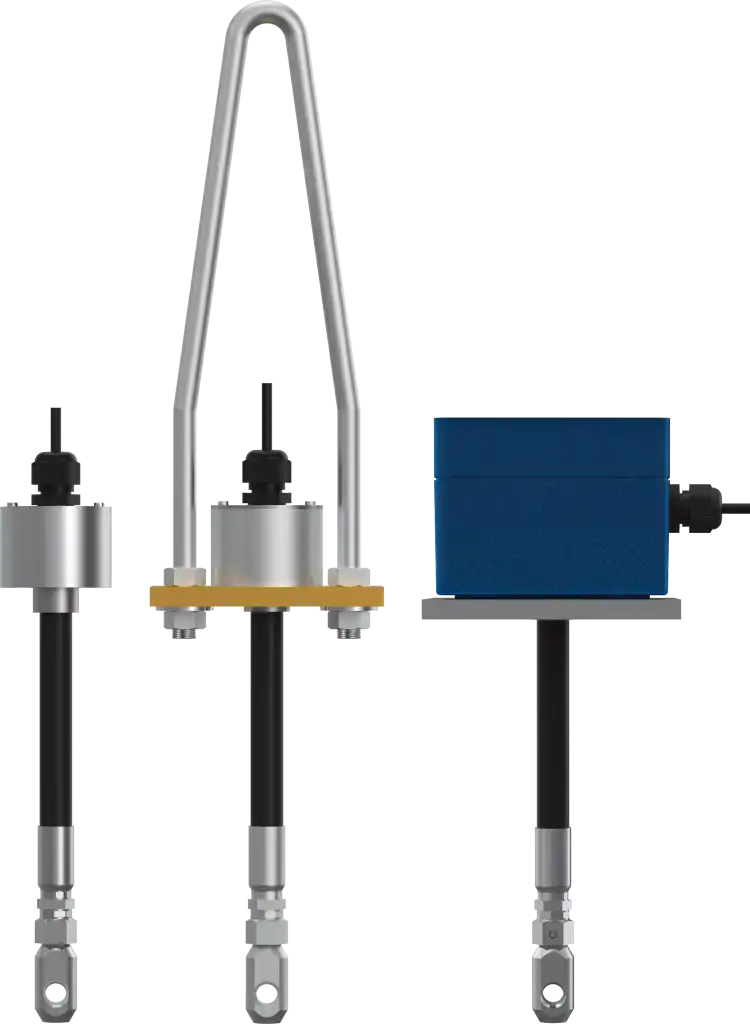

Multipoint temperature probe
Description
The multipoint temperature probe reliably measures the temperature at different heights of a silo. The RTD temperature probe can be used for concrete and metal silos. Depending on the version, the multipoint temperature probe can be mounted outside or inside.
Short Description
For temperature measurement in grain silos
Price
€0.00
Availability
In Stock
Images
State
LIVE
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9NDU3NjEyIiwiYmVuZWZpdHMiOltdLCJiZW5lZml0c0ludHJvZHVjdGlvbiI6IiIsInRlY2huaWNhbERhdGEiOlt7Im5hbWUiOiJUZXJtaW5hbCBoZWFkIiwidmFsdWUiOiJBbHVtaW51bSBBRzQsNSBmb3IgdmVyc2lvbiAxLCAyLCAzLCBhbmQgNTsgc3RhaW5sZXNzIHN0ZWVsIDEuNDMwNiBmb3IgdmVyc2lvbiA0IGFuZCA2Iiwic29ydE5vIjowfSx7Im5hbWUiOiJTZW5zb3IiLCJ2YWx1ZSI6IlB0MTAwIG9obSwgUHQxMDAwIG9obSwgQ1ROLCBkaWdpdGFsIHNlbnNvciBEUzE4QjIwIiwic29ydE5vIjoxfSx7Im5hbWUiOiJPdXRlciBwcm90ZWN0aW9uIHR1YmUgKHN1c3BlbnNpb24gY2FibGUpIiwidmFsdWUiOiJQRUhEOiBkaWFtZXRlciBkPTE3IG1tLCBwcm90ZWN0aW9uIHR1YmUgMjQgd2lyZXMgb2YgZ2FsdmFuaXplZCBzdGVlbCwgaW5uZXIgcHJvdGVjdGlvbiB0dWJlOiBQRUhEOyBzdGFpbmxlc3Mgc3RlZWwgMS40MzAxOiBkaWFtZXRlciBkPTE1IG1tLCBwcm90ZWN0aW9uIHR1YmUgNzUgd2lyZXMgb2Ygc3RhaW5sZXNzIHN0ZWVsLCBpbm5lciBwcm90ZWN0aW9uIHR1YmU6IFBWREYiLCJzb3J0Tm8iOjJ9LHsibmFtZSI6IkRpbWVuc2lvbnMiLCJ2YWx1ZSI6Ikxlbmd0aCBMOiBmcm9tIDAgdG8gNjAgMDAwIG1tOyBsZW5ndGggTGM6IGZyb20gMTAwIHRvIDEwMCAwMDAgbW0iLCJzb3J0Tm8iOjN9LHsibmFtZSI6Ik1lYXN1cmluZyBpbnNlcnQiLCJ2YWx1ZSI6IlJlcGxhY2VhYmxlIiwic29ydE5vIjo0fSx7Im5hbWUiOiJWZXJzaW9uIiwidmFsdWUiOiI5MDM1MzAvMSB2ZXJzaW9uIDEgLSBiYXNpczsgOTAzNTMwLzIgdmVyc2lvbiAyIC0gZm9yIGZhc3RlbmluZyB0byBhIG1ldGFsIHN0cnVjdHVyZTsgOTAzNTMwLzMgdmVyc2lvbiAzIC0gZm9yIGZhc3RlbmluZyB0byBhIGNvbmNyZXRlIHNsYWI7IDkwMzUzMC80IHZlcnNpb24gNCAtIGZvciBmYXN0ZW5pbmcgdG8gYSBjb25jcmV0ZSBzbGFiIG91dHNpZGUgbW91bnRpbmc7IDkwMzUzMC81IHZlcnNpb24gNSAtIHN1cHBvcnRpbmcgZnJhbWUgd2l0aCBhbmdsZSArIGNvbm5lY3Rpb24gaG91c2luZyBpbnNpZGUgbW91bnRpbmc7IDkwMzUzMC82IHZlcnNpb24gNiAtIHN1cHBvcnRpbmcgZnJhbWUgd2l0aCBhbmdsZSArIGNvbm5lY3Rpb24gaG91c2luZyBvdXRzaWRlIG1vdW50aW5nIiwic29ydE5vIjo1fSx7Im5hbWUiOiJBcHByb3ZhbCIsInZhbHVlIjoiQVRFWCBbRXggaV0iLCJzb3J0Tm8iOjZ9LHsibmFtZSI6IkFyZWFzIG9mIGFwcGxpY2F0aW9uIiwidmFsdWUiOiJUZW1wZXJhdHVyZSBtZWFzdXJlbWVudCBpbiBzaWxvcyIsInNvcnRObyI6N31dLCJoaWdobGlnaHRzIjpbeyJpY29uVGV4dCI6Imljb24tZXF1YWxpemVyIiwiZGVzY3JpcHRpb24iOiJVcCB0byA2NCBtZWFzdXJpbmcgcG9pbnRzIiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi1kaWFtb25kIiwiZGVzY3JpcHRpb24iOiJTdHVyZHkgaW5kdXN0cmlhbCB2ZXJzaW9uIiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi1jaGVjayIsImRlc2NyaXB0aW9uIjoiQVRFWCBhcHByb3ZhbCIsInR5cGUiOiJJQ09OIn1dLCJkaWZmZXJlbnRpYXRvcnMiOlt7InRleHQiOiJNZWFzdXJpbmcgcmFuZ2U6IC01IHRvICs4MCDCsEMiLCJzb3J0Tm8iOjB9LHsidGV4dCI6IkFuYWxvZyBvciBkaWdpdGFsIHRlbXBlcmF0dXJlIHNlbnNvciIsInNvcnRObyI6MX0seyJ0ZXh0IjoiQVRFWCBhcHByb3ZhbCB6b25lIDIwIChkdXN0KSIsInNvcnRObyI6Mn1dfQ==
title
Icon
icon-equalizer
Description
Up to 64 measuring points
Icon
icon-diamond
Description
Sturdy industrial version
Icon
icon-check
Description
ATEX approval
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=457612
Terminal head
Aluminum AG4,5 for version 1, 2, 3, and 5; stainless steel 1.4306 for version 4 and 6
Sensor
Pt100 ohm, Pt1000 ohm, CTN, digital sensor DS18B20
Outer protection tube (suspension cable)
PEHD: diameter d=17 mm, protection tube 24 wires of galvanized steel, inner protection tube: PEHD; stainless steel 1.4301: diameter d=15 mm, protection tube 75 wires of stainless steel, inner protection tube: PVDF
Dimensions
Length L: from 0 to 60 000 mm; length Lc: from 100 to 100 000 mm
Measuring insert
Replaceable
Version
903530/1 version 1 - basis; 903530/2 version 2 - for fastening to a metal structure; 903530/3 version 3 - for fastening to a concrete slab; 903530/4 version 4 - for fastening to a concrete slab outside mounting; 903530/5 version 5 - supporting frame with angle + connection housing inside mounting; 903530/6 version 6 - supporting frame with angle + connection housing outside mounting
Approval
ATEX [Ex i]
Areas of application
Temperature measurement in silos
