Produkt Details
SKU
406011
Name

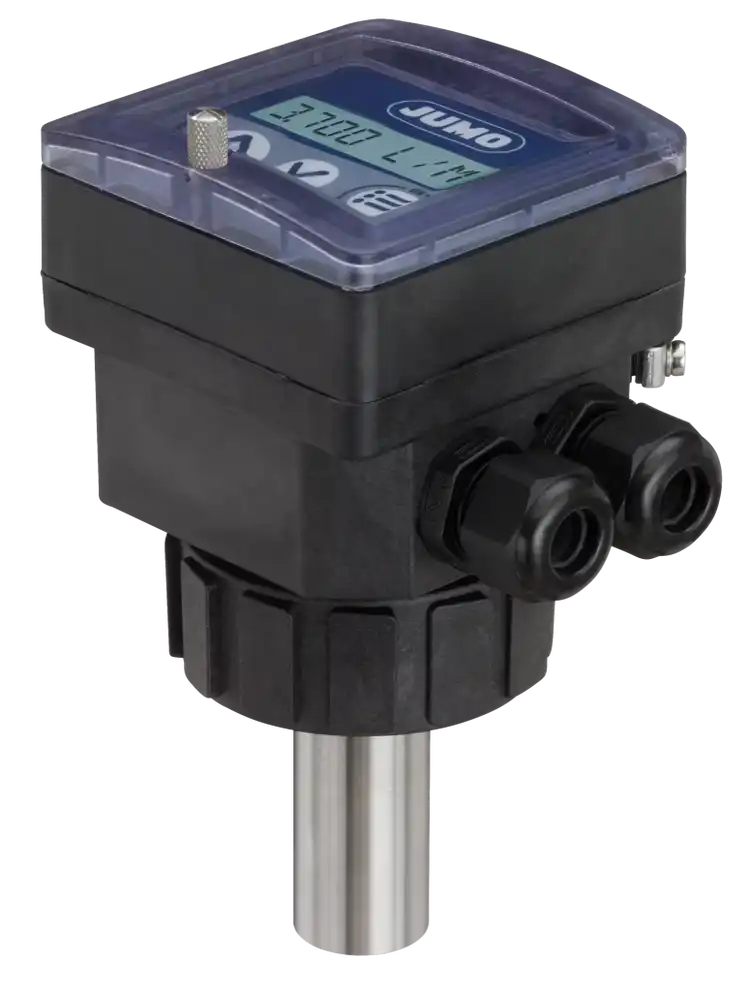

久茂 flowTRANS MAG I02
Description
该流量计可用于电导率为 20 μS/cm 的液体。标准化接头（406090 型）使设备能够轻松安装在 DN 15 至 DN 400 的管道中。输出信号为 4 至 20 mA，脉冲频率信号为 0 至 240 Hz。
Short Description
插入式带显示电磁感应流量计
Availability
In Stock
Images
State
LIVE
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9NTgxNTYwIiwiYmVuZWZpdHMiOltdLCJiZW5lZml0c0ludHJvZHVjdGlvbiI6IiIsInRlY2huaWNhbERhdGEiOlt7Im5hbWUiOiLpmYTku7YiLCJ2YWx1ZSI6IlBWQyDmiJbkuI3plIjpkqLliLbmiJDnmoQgVCDlnovmjqXlpLTvvJtQReaIluS4jemUiOmSoueEiuaOpeaPkuW6p++8m1BQIOi/nuaOpeWNoeeuje+8iDQwNjA5MCDlnovvvIkiLCJzb3J0Tm8iOjB9LHsibmFtZSI6IumYsuaKpOetiee6pyIsInZhbHVlIjoiSVA2NSIsInNvcnRObyI6MX0seyJuYW1lIjoi5YWs56ew5Y6L5YqbIiwidmFsdWUiOiJQTiAxNiIsInNvcnRObyI6Mn0seyJuYW1lIjoi5LiO5LuL6LSo5o6l6Kem55qE6YOo5Lu2IiwidmFsdWUiOiLkuI3plIjpkqIgMzE2TCAoMS40NDA0Ke+8m0ZLTSDmiJYgRVBETe+8m1BFRUsiLCJzb3J0Tm8iOjN9LHsibmFtZSI6IuS4reetieeahCIsInZhbHVlIjoi5a+855S15ray5L2T5LuOIDIwIM68UyAvIGNtIiwic29ydE5vIjo0fSx7Im5hbWUiOiLnrqHpgZPlsLrlr7giLCJ2YWx1ZSI6IkROIDE1IOiHsyBETiA0MDAiLCJzb3J0Tm8iOjV9LHsibmFtZSI6Iua1i+mHj+eyvuW6piIsInZhbHVlIjoi4omkIMKxIDMuNSUg5rWL6YeP5YC877yI5qCH5YeG5qCh5YeG57O75pWw77yJ77yb4omkIMKxIDAuNSUg5rWL6YeP5YC877yI56S65L6L77yJIiwic29ydE5vIjo2fSx7Im5hbWUiOiLnibnlvoEiLCJ2YWx1ZSI6IuW4puaYvuekuuWZqCIsInNvcnRObyI6N30seyJuYW1lIjoi566h6YGT5bC65a+4IiwidmFsdWUiOiJETiAxNSDoh7MgRE4gNDAwIiwic29ydE5vIjo4fSx7Im5hbWUiOiLmtYvph4/ojIPlm7QiLCJ2YWx1ZSI6IjAuMuiHszEwbS9zIiwic29ydE5vIjo5fSx7Im5hbWUiOiLkvpvnlLUiLCJ2YWx1ZSI6IuebtOa1gSAxOCDoh7MgMzYgViIsInNvcnRObyI6MTB9LHsibmFtZSI6Iui+k+WFpeWSjOi+k+WHuiIsInZhbHVlIjoiNCDoh7MgMjAgbUHvvJvohInlhrLpopHnjofvvJsyw5flvIDlhbPph4/ovpPlh7rvvIjnu6fnlLXlmajvvInvvJvmlbDlrZfovpPlhaUiLCJzb3J0Tm8iOjExfV0sImhpZ2hsaWdodHMiOlt7Imljb25UZXh0IjoiaWNvbi1iYXNpY3MiLCJkZXNjcmlwdGlvbiI6IumrmOWKn+iDvSIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24tY29tcHV0ZXIiLCJkZXNjcmlwdGlvbiI6IuWPkeWFieaYvuekuuWZqCIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24td3JhbmNoIiwiZGVzY3JpcHRpb24iOiLnu4Too4Xlt6XkvZzph4/kvY4iLCJ0eXBlIjoiSUNPTiJ9XSwiZGlmZmVyZW50aWF0b3JzIjpbeyJ0ZXh0Ijoi5oC76K6h5ZKM5q+P5pel6K6h5pWw5ZmoIiwic29ydE5vIjowfSx7InRleHQiOiLlj6/phY3nva7nmoTovpPlhaXlkozovpPlh7oiLCJzb3J0Tm8iOjF9LHsidGV4dCI6Iua4qeW6pumrmOi+viAxMTDCsEMiLCJzb3J0Tm8iOjJ9XX0=
title
Icon
icon-basics
Description
高功能
Icon
icon-computer
Description
发光显示器
Icon
icon-wranch
Description
组装工作量低
title
技术规格
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=581560
附件
PVC 或不锈钢制成的 T 型接头；PE或不锈钢焊接插座；PP 连接卡箍（406090 型）
防护等级
IP65
公称压力
PN 16
与介质接触的部件
不锈钢 316L (1.4404)；FKM 或 EPDM；PEEK
中等的
导电液体从 20 μS / cm
管道尺寸
DN 15 至 DN 400
测量精度
≤ ± 3.5% 测量值（标准校准系数）；≤ ± 0.5% 测量值（示例）
特征
带显示器
管道尺寸
DN 15 至 DN 400
测量范围
0.2至10m/s
供电
直流 18 至 36 V
输入和输出
4 至 20 mA；脉冲频率；2×开关量输出（继电器）；数字输入
