Produkt Details
SKU
705031
Name

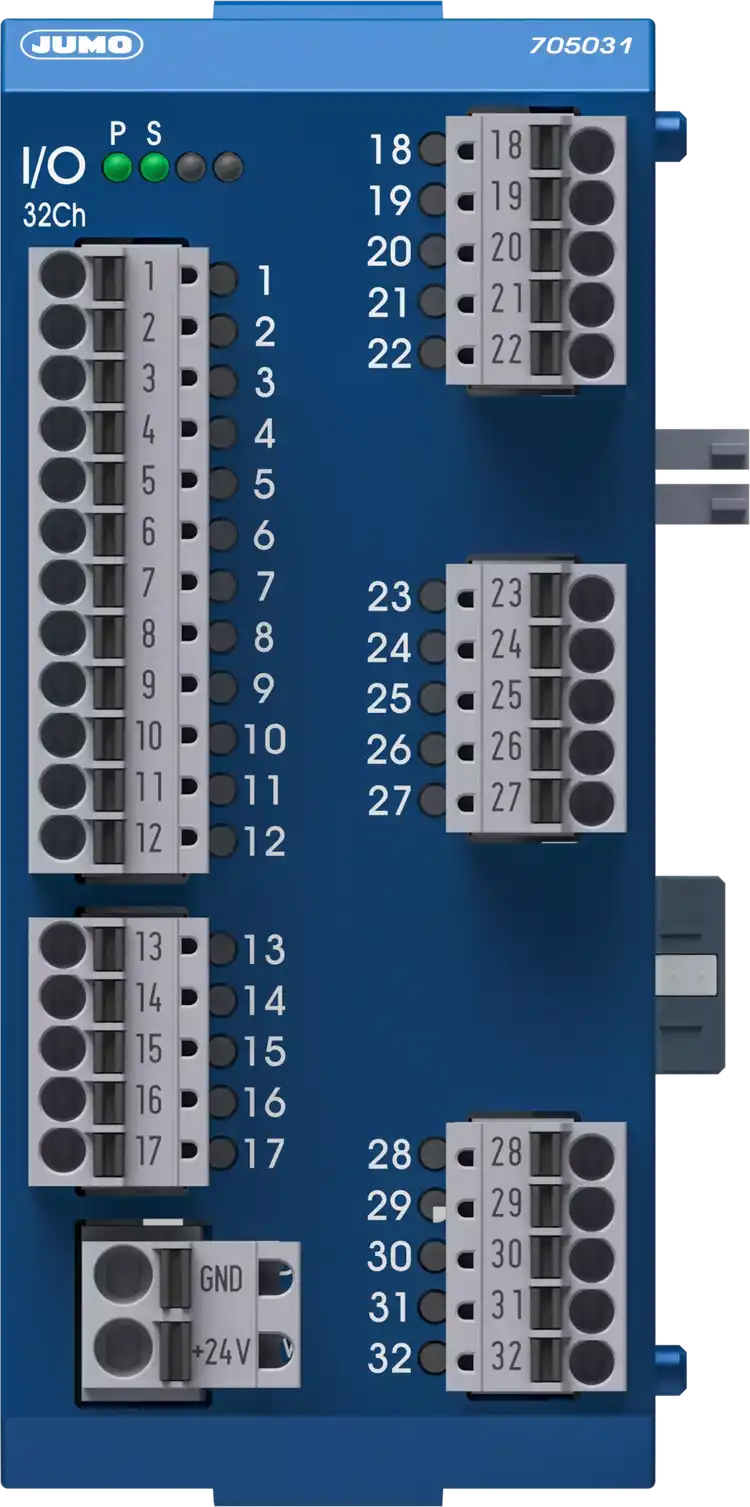

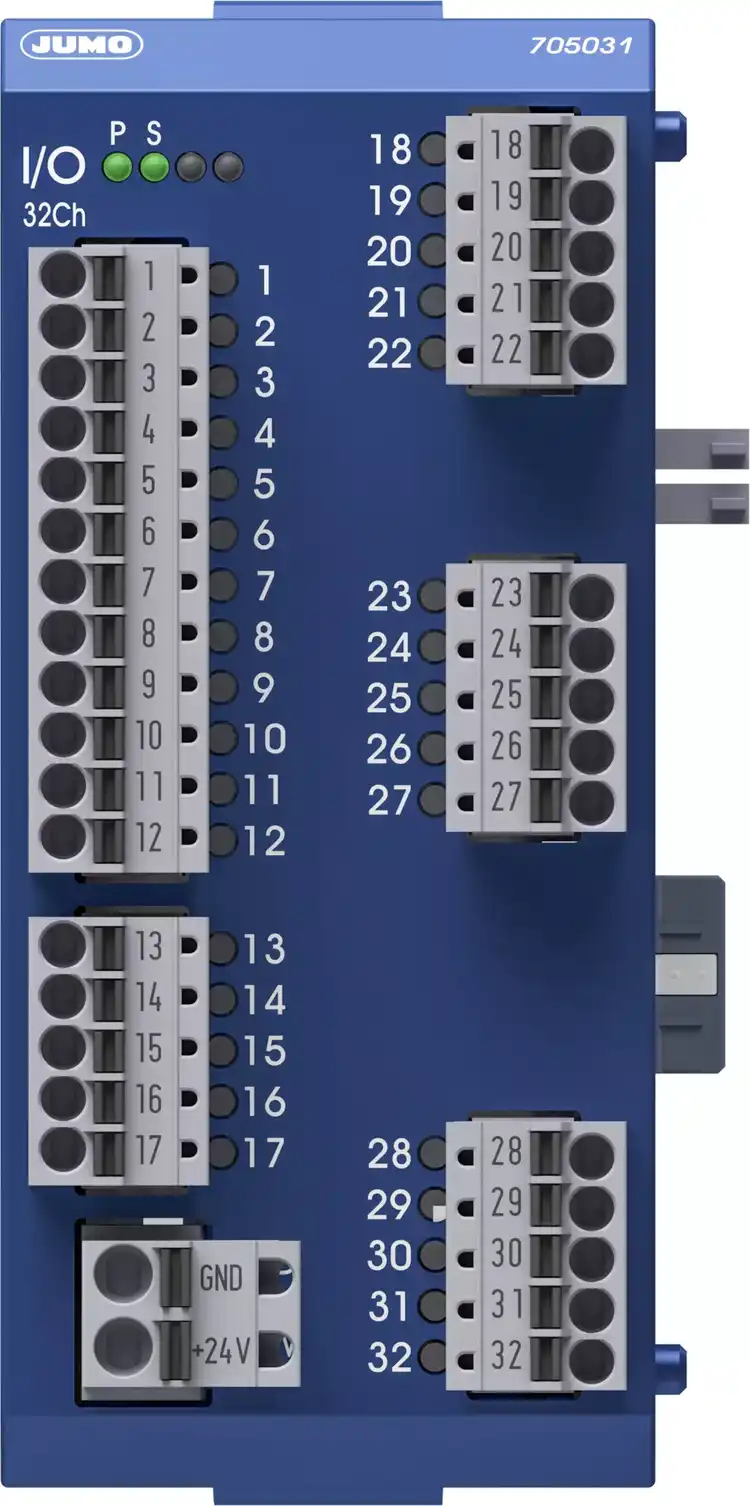

32路数字量输入/输出模块
Description
该模块提供 32 个通道。其中 17 个默认配置为数字输出。可选 3 个5通道扩展插件板增加数字量输入或输出。数字量输入信号可以在 JUMO variTRON CPU中进一步处理。数字量输出通道输出由系统总线传输的信号。
Short Description
JUMO variTRON 自动化系统模块
Price
€400.48
Availability
In Stock
Images
State
LIVE
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9NjkxMjA4IiwiYmVuZWZpdHMiOltdLCJiZW5lZml0c0ludHJvZHVjdGlvbiI6IiIsInRlY2huaWNhbERhdGEiOlt7Im5hbWUiOiLpgJrpgZPmlbAiLCJ2YWx1ZSI6IjMyIiwic29ydE5vIjowfSx7Im5hbWUiOiLmtYvph4/ovpPlhaUiLCJ2YWx1ZSI6IuacgOWkmiAxNSDkuKrmlbDlrZfovpPlhaUgREMgMjQgVu+8iOWPr+mAie+8iSIsInNvcnRObyI6MX0seyJuYW1lIjoi6L6T5Ye6IiwidmFsdWUiOiIxNyDkuKrlm7rlrprlkozlj6/pgInmnIDlpJogMTUg5Liq6ZmE5Yqg5pWw5a2X6YeP6L6T5Ye6IERDIDI0IFbvvIzmnIDlpKc1MDDmr6vlrokiLCJzb3J0Tm8iOjJ9LHsibmFtZSI6IueJueiJsuWKn+iDvSIsInZhbHVlIjoiMyDkuKrlj6/pgInnmoTmianlsZXmj5Lmp73vvIzmr4/kuKrmianlsZXmj5Lmp73nlKjkuo4gNSDkuKrmlbDlrZfovpPlhaXmiJbovpPlh7rvvIzlvIDlhbPnirbmgIHpgJrov4cgTEVEIOaYvuekuu+8jOmAmui/h+WJjemdoueahOerr+WtkOS4uuaVsOWtl+i+k+WFpS/ovpPlh7rmj5DkvpvlpJbpg6jnlLXljovvvIzmm7TmjaLmqKHlnZfmj5Lku7blkI7oh6rliqjphY3nva7vvIjljbPmj5LljbPnlKjvvInvvIzovpPlhaXov57mjqXlnKjmraPpnaLvvIzph4fnlKggUFVTSCBJTiDmioDmnK/nmoTlj6/mi4bljbjnq6/lrZDmnb/vvIzpgJrov4fnroDljZXnmoTmqKHlnZfov57mjqXljp/nkIbmj5Dkvpvlt6XkvZznlLXljovlkozns7vnu5/mgLvnur/nmoTlv6vpgJ/mjqXnur8iLCJzb3J0Tm8iOjN9LHsibmFtZSI6Iui/nuaOpSIsInZhbHVlIjoi5q2j6Z2i6YeH55SoIFBVU0ggSU4g5oqA5pyv55qE5Y+v5ouG5Y2456uv5a2Q5o6SIiwic29ydE5vIjo0fSx7Im5hbWUiOiLnlLXljovkvpvlupQiLCJ2YWx1ZSI6IkMgMjQgViArMjUvLTIwICXvvIzliY3pnaLmnb/ovpPlh7rnmoTlpJbpg6jnlLXmupDvvJpEQyAyNCBWICsyNS8tMjAgJSBTRUxWIiwic29ydE5vIjo1fSx7Im5hbWUiOiLlpJblo7MiLCJ2YWx1ZSI6IueUqOS6jiBESU4g5a+86L2o5a6J6KOF5Zyo5o6n5Yi25p+c5Lit55qE5aGR5paZ5aSW5aOzIiwic29ydE5vIjo2fSx7Im5hbWUiOiLkv53miqTnsbvlnosiLCJ2YWx1ZSI6IklQMjAiLCJzb3J0Tm8iOjd9LHsibmFtZSI6IueOr+Wig+a4qeW6puiMg+WbtCIsInZhbHVlIjoiLTIwIOiHsyArNTUgwrBDIiwic29ydE5vIjo4fSx7Im5hbWUiOiLlsLrlr7jvvIjlrr3Dl+mrmMOX5rex77yJIiwidmFsdWUiOiI0NSBtbSDDlyAxMDMuNiBtbSDDlyAxMDEuNSBtbe+8iOS4jeWQq+i/nuaOpeWFg+S7tu+8iSIsInNvcnRObyI6OX1dLCJoaWdobGlnaHRzIjpbeyJpY29uVGV4dCI6Imljb24tZmxvdy10cmVlIiwiZGVzY3JpcHRpb24iOiLngbXmtLvphY3nva7nmoTovpPlhaXlkozovpPlh7oiLCJ0eXBlIjoiSUNPTiJ9LHsiaWNvblRleHQiOiJpY29uLXNoaWVsZCIsImRlc2NyaXB0aW9uIjoi5q+P5Liq5pWw5a2X6L6T5Ye655qE6auY6LSf6L296IO95YqbIiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi1jb21wb3NlIiwiZGVzY3JpcHRpb24iOiLoiJLpgILjgIHngbXmtLvnmoTns7vnu5/op4TliJIiLCJ0eXBlIjoiSUNPTiJ9XSwiZGlmZmVyZW50aWF0b3JzIjpbeyJ0ZXh0Ijoi5L+h5Y+377yaREMgMC8yNCBW77yb6L6T5Ye677ya5pyA5aSnIDUwMCBtQSIsInNvcnRObyI6MH0seyJ0ZXh0IjoiMzLkuKrpgJrpgZPvvIzlhbbkuK0xN+S4quaYr+aVsOWtl+i+k+WHuiIsInNvcnRObyI6MX0seyJ0ZXh0Ijoi5aSa6L6+IDE1IOS4qumZhOWKoOi+k+WFpeaIlui+k+WHuiIsInNvcnRObyI6Mn1dfQ==
title
Icon
icon-flow-tree
Description
灵活配置的输入和输出
Icon
icon-shield
Description
每个数字输出的高负载能力
Icon
icon-compose
Description
舒适、灵活的系统规划
title
技术规格
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=691208
通道数
32
测量输入
最多 15 个数字输入 DC 24 V（可选）
输出
17 个固定和可选最多 15 个附加数字量输出 DC 24 V，最大500毫安
特色功能
3 个可选的扩展插槽，每个扩展插槽用于 5 个数字输入或输出，开关状态通过 LED 显示，通过前面的端子为数字输入/输出提供外部电压，更换模块插件后自动配置（即插即用），输入连接在正面，采用 PUSH IN 技术的可拆卸端子板，通过简单的模块连接原理提供工作电压和系统总线的快速接线
连接
正面采用 PUSH IN 技术的可拆卸端子排
电压供应
C 24 V +25/-20 %，前面板输出的外部电源：DC 24 V +25/-20 % SELV
外壳
用于 DIN 导轨安装在控制柜中的塑料外壳
保护类型
IP20
环境温度范围
-20 至 +55 °C
尺寸（宽×高×深）
45 mm × 103.6 mm × 101.5 mm（不含连接元件）
