Overview
title
Produkt Details
SKU
705021
Name

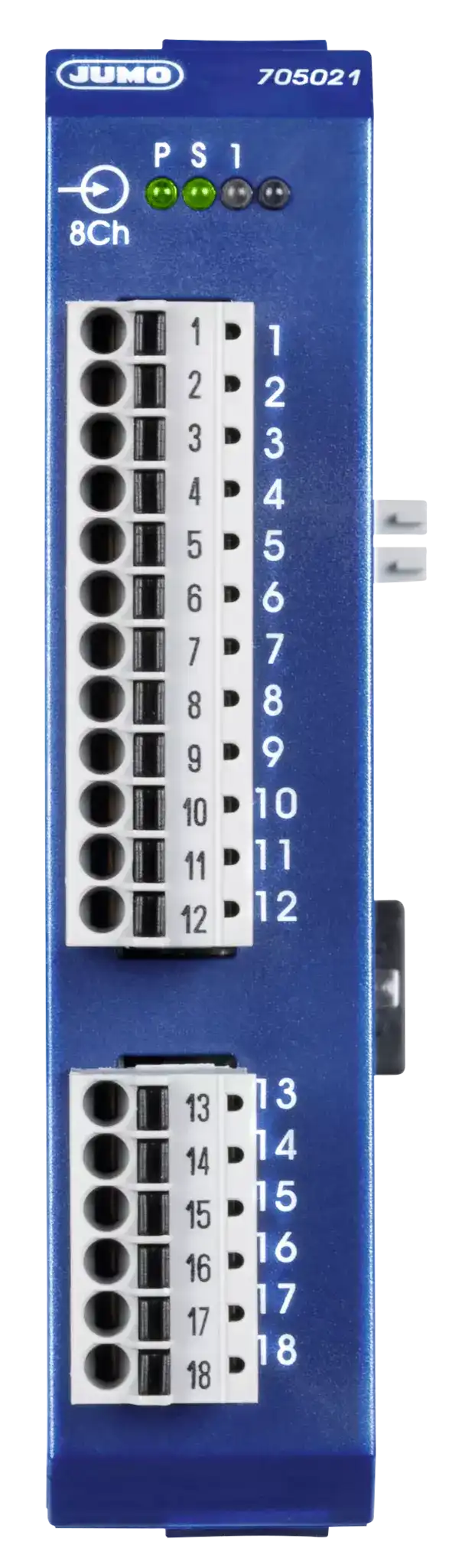

JUMO mTRON T
Description
The analog input module 8-channel has 8 analog inputs for RTD temperature probes in a two-wire circuit, and 1 digital input (DC 0/24 V). The analog inputs are not galvanically isolated from each other.
Short Description
Analog input module 8-channel
Price
€12,474.60
Availability
In Stock
Images
State
LIVE
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9MTM3MDYiLCJiZW5lZml0cyI6W10sImJlbmVmaXRzSW50cm9kdWN0aW9uIjoiIiwidGVjaG5pY2FsRGF0YSI6W3sibmFtZSI6Ik1lYXN1cmVtZW50IGlucHV0cyIsInZhbHVlIjoiOCBhbmFsb2cgaW5wdXRzIGZvciBSVEQgdGVtcGVyYXR1cmUgcHJvYmVzIGluIHR3by13aXJlIGNpcmN1aXQsIDEgZGlnaXRhbCBpbnB1dCIsInNvcnRObyI6MH0seyJuYW1lIjoiRmVhdHVyZXMiLCJ2YWx1ZSI6Ii0gOCBoaWdoLXF1YWxpdHkgYW5hbG9nIGlucHV0cyBmb3IgUlREIHRlbXBlcmF0dXJlIHByb2JlcyBQdDEwMCwgUHQ1MDAsIFB0MTAwMCBpbiB0d28td2lyZSBjaXJjdWl0IC0gTGltaXQgdmFsdWUgbW9uaXRvcmluZyBmdW5jdGlvbiAtIEFkZGl0aW9uYWwgZGlnaXRhbCBpbnB1dCIsInNvcnRObyI6MX0seyJuYW1lIjoiU3BlY2lhbCBmZWF0dXJlcyIsInZhbHVlIjoiSE1JIHdpdGggcmVjb3JkaW5nIGZ1bmN0aW9uIGZvciB1cCB0byA5IGdyb3VwcyB3aXRoIDYgYW5hbG9nIGFuZCA2IGRpZ2l0YWwgaW5wdXRzIHJlc3BlY3RpdmVseS4gRWFjaCByZWNvcmRpbmcgZ3JvdXAgaGFzIGF2YWlsYWJsZSBiYXRjaCByZXBvcnRpbmcuIEJhdGNoIGRhdGEgY2FuIGJlIGVudGVyZWQgYnkgdG91Y2hzY3JlZW4gb3IgbG9hZGVkIHZpYSBpbnRlcmZhY2UgKGUuZy4gYnkgYmFyY29kZSBzY2FubmVyKS4gSW50ZWdyYXRlZCB3ZWIgc2VydmVyLCBtYXRoIGZ1bmN0aW9uIGluIHRoZSBvcHRpb25hbCBjb250cm9sbGVyIG1vZHVsZXMsIFBMQyBDT0RFU1lTIFYzIGluIHRoZSBjZW50cmFsIHByb2Nlc3NpbmcgdW5pdCBmb3IgdGhlIG1vbml0b3Jpbmcgb2YgbWVhc3VyaW5nIHNpZ25hbHMsIGFuZCBmdXJ0aGVyIGNhbGN1bGF0aW9ucy4iLCJzb3J0Tm8iOjJ9LHsibmFtZSI6IkludGVyZmFjZXMiLCJ2YWx1ZSI6IkFzIGEgc3RhbmRhcmQgZmVhdHVyZSAoaW4gQ1BVIGFuZCBITUkpLCBhIFVTQiBkZXZpY2UgaW50ZXJmYWNlIChzZXR1cCksIGEgTEFOIGNvbm5lY3Rpb24gKEV0aGVybmV0KSwgYW5kIDIgc3lzdGVtIGJ1cyBjb25uZWN0aW9ucyBhcmUgYXZhaWxhYmxlLiBBcyBhbiBvcHRpb24gKGluIENQVSBhbmQgSE1JKSwgdXAgdG8gMiBpbnRlcmZhY2VzIGNhbiBiZSB1c2VkIGZvciBmaWVsZGJ1cyBhcHBsaWNhdGlvbnMuIEZ1cnRoZXJtb3JlLCBVU0IgaG9zdCBpbnRlcmZhY2VzIChlLmcuIGZvciBhIFVTQiBmbGFzaCBkcml2ZSkgYXJlIGF2YWlsYWJsZSBpbiBITUkuIiwic29ydE5vIjozfSx7Im5hbWUiOiJBcHByb3ZhbHMiLCJ2YWx1ZSI6IlVMLCBtZXRyb2xvZ2ljYWwgY2VydGlmaWNhdGUsIEROViBHTCIsInNvcnRObyI6NH1dLCJoaWdobGlnaHRzIjpbeyJpY29uVGV4dCI6Imljb24tZXF1YWxpemVyIiwiZGVzY3JpcHRpb24iOiJBdXRvbWF0aWMgY29uZmlndXJhdGlvbiAoUGx1ZyBhbmQgUGxheSkiLCJ0eXBlIjoiSUNPTiJ9LHsiaWNvblRleHQiOiJpY29uLWFuc2NobHVlc3NlIiwiZGVzY3JpcHRpb24iOiJDb25uZWN0aW9uIG9mIGlucHV0cyBvbiB0aGUgZnJvbnQiLCJ0eXBlIjoiSUNPTiJ9LHsiaWNvblRleHQiOiJpY29uLXVubG9jayIsImRlc2NyaXB0aW9uIjoiUmVtb3ZhYmxlIHRlcm1pbmFsIHN0cmlwcyB3aXRoIFBVU0ggSU4iLCJ0eXBlIjoiSUNPTiJ9XSwiZGlmZmVyZW50aWF0b3JzIjpbeyJ0ZXh0IjoiOCBhbmFsb2cgaW5wdXRzIiwic29ydE5vIjowfSx7InRleHQiOiIxNi1iaXQgQS9EIGNvbnZlcnRlciIsInNvcnRObyI6MX0seyJ0ZXh0IjoiMSBkaWdpdGFsIGlucHV0IERDIDAvMjTCoFYiLCJzb3J0Tm8iOjJ9XX0=
title
Icon
icon-equalizer
Description
Automatic configuration (Plug and Play)
Icon
icon-anschluesse
Description
Connection of inputs on the front
Icon
icon-unlock
Description
Removable terminal strips with PUSH IN
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=13706
Measurement inputs
8 analog inputs for RTD temperature probes in two-wire circuit, 1 digital input
Features
- 8 high-quality analog inputs for RTD temperature probes Pt100, Pt500, Pt1000 in two-wire circuit - Limit value monitoring function - Additional digital input
Special features
HMI with recording function for up to 9 groups with 6 analog and 6 digital inputs respectively. Each recording group has available batch reporting. Batch data can be entered by touchscreen or loaded via interface (e.g. by barcode scanner). Integrated web server, math function in the optional controller modules, PLC CODESYS V3 in the central processing unit for the monitoring of measuring signals, and further calculations.
Interfaces
As a standard feature (in CPU and HMI), a USB device interface (setup), a LAN connection (Ethernet), and 2 system bus connections are available. As an option (in CPU and HMI), up to 2 interfaces can be used for fieldbus applications. Furthermore, USB host interfaces (e.g. for a USB flash drive) are available in HMI.
Approvals
UL, metrological certificate, DNV GL
