Overview
title
Produkt Details
SKU
705123
Name

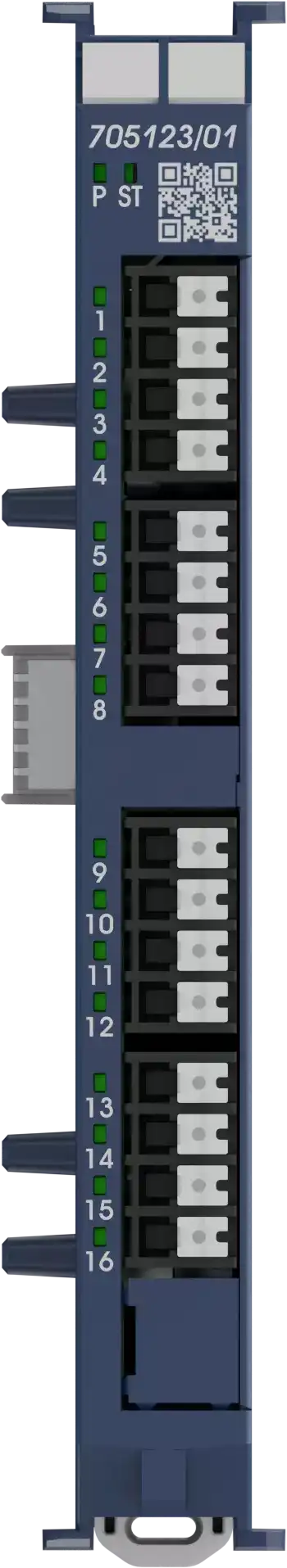

JUMO I/O system analog output module, 4-channel
Description
The JUMO I/O system module can provide 4 analog outputs for all models of the JUMO variTRON automation system. To facilitate an easy startup, the slim DIN rail device offers factory-equipped PUSH IN terminal strips and connects to the operating voltage and system bus by plugging the modules together.
Short Description
Module for JUMO variTRON automation system
Price
€0.00
Availability
In Stock
Images
State
NEW
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9MTQxOTYxMSIsImJlbmVmaXRzIjpbXSwiYmVuZWZpdHNJbnRyb2R1Y3Rpb24iOiIiLCJ0ZWNobmljYWxEYXRhIjpbeyJuYW1lIjoiT3V0cHV0cyIsInZhbHVlIjoiNCBhbmFsb2cgb3V0cHV0cyAoMCg0KSB0byAyMCBtQSwgMCB0byAxMCBWKSIsInNvcnRObyI6MH0seyJuYW1lIjoiQ29ubmVjdGlvbiIsInZhbHVlIjoiVGVybWluYWwgc3RyaXBzIHdpdGggUFVTSCBJTiB0ZWNobm9sb2d5IG9uIHRoZSBmcm9udCIsInNvcnRObyI6MX0seyJuYW1lIjoiU3BlY2lhbCBmZWF0dXJlcyIsInZhbHVlIjoiVGhlIGN5Y2xlIHRpbWUgb2YgdGhlIG1vZHVsZSBjYW4gYmUgY29uZmlndXJlZCwgc3dpdGNoaW5nIHN0YXR1c2VzIGFyZSB2aXN1YWxpemVkIHdpdGggTEVEczsgcXVpY2sgd2lyaW5nIG9mIG9wZXJhdGluZyB2b2x0YWdlIGFuZCBzeXN0ZW0gYnVzIGJ5IHNpbXBseSBwbHVnZ2luZyB0aGUgbW9kdWxlcyB0b2dldGhlcjsgc3BhY2Utc2F2aW5nIGRlc2lnbjsgb3BlcmF0aW9uIHdpdGggSlVNTyB2YXJpVFJPTiBhbmQgaW4gY29tYmluYXRpb24gd2l0aCBlYXJsaWVyIEpVTU8gSS9PIG1vZHVsZXMgKDcwNTB4eCkgcG9zc2libGU7IGluY3JlYXNlZCB2aWJyYXRpb24gYW5kIHNob2NrIHJlc2lzdGFuY2UgdGhyb3VnaCBvcHRpb25hbCBjb25uZWN0aW9uIHJhaWxzIiwic29ydE5vIjoyfSx7Im5hbWUiOiJBcHByb3ZhbHMiLCJ2YWx1ZSI6IkROVjsgVUwiLCJzb3J0Tm8iOjN9LHsibmFtZSI6IlZvbHRhZ2Ugc3VwcGx5IiwidmFsdWUiOiJEQyAyNCBWICsyNS8tMjAgJSwgc3VwcGx5IHZpYSBjZW50cmFsIHByb2Nlc3NpbmcgdW5pdCB3aXRoIHN5c3RlbSBtb2R1bGUgNzA1MTcxIChKVU1PIHZhcmlUUk9OIDUwMCkgb3IgY29tbXVuaWNhdGlvbiBtb2R1bGUgMy1jaGFubmVsIDcwNTE2MyAoSlVNTyB2YXJpVFJPTiAzMDAsIEpVTU8gdmFyaVRST04gNTAwIHRvdWNoKSIsInNvcnRObyI6NH0seyJuYW1lIjoiSG91c2luZyIsInZhbHVlIjoiUGxhc3RpYyBob3VzaW5nIGZvciBESU4tcmFpbCBtb3VudGluZyBpbiB0aGUgY29udHJvbCBjYWJpbmV0Iiwic29ydE5vIjo1fSx7Im5hbWUiOiJQcm90ZWN0aW9uIHR5cGUiLCJ2YWx1ZSI6IklQMjAiLCJzb3J0Tm8iOjZ9LHsibmFtZSI6IkFtYmllbnQgdGVtcGVyYXR1cmUgcmFuZ2UiLCJ2YWx1ZSI6Ii0yMCB0byArNTXCoMKwQyIsInNvcnRObyI6N30seyJuYW1lIjoiRGltZW5zaW9ucyAoV+KAr8OX4oCvSOKAr8OX4oCvRCkiLCJ2YWx1ZSI6IjEyIMOXIDEwNi43IMOXIDEwMcKgbW0gKHdpdGhvdXQgY29ubmVjdGlvbiBlbGVtZW50cykiLCJzb3J0Tm8iOjh9XSwiaGlnaGxpZ2h0cyI6W3siaWNvblRleHQiOiJpY29uLWNvbXBvc2UiLCJkZXNjcmlwdGlvbiI6IkVhc3ktdG8tdXNlLCBmbGV4aWJsZSBwbGFubmluZyBvZiB0aGUgcGxhbnQiLCJ0eXBlIjoiSUNPTiJ9LHsiaWNvblRleHQiOiJpY29uLW1pbmltaXplLWFsdCIsImRlc2NyaXB0aW9uIjoiU3BhY2Utc2F2aW5nIGRlc2lnbiIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24td3JhbmNoIiwiZGVzY3JpcHRpb24iOiJTaW1wbGUgc3RhcnR1cCIsInR5cGUiOiJJQ09OIn1dLCJkaWZmZXJlbnRpYXRvcnMiOlt7InRleHQiOiI0IGFuYWxvZyBvdXRwdXRzICh1c2VyIGNvbmZpZ3VyYWJsZSkiLCJzb3J0Tm8iOjB9LHsidGV4dCI6IlNpZ25hbDogMCg0KSB0byAyMCBtQSBvciAwIHRvIDEwIFYiLCJzb3J0Tm8iOjF9LHsidGV4dCI6IlRlcm1pbmFsIHN0cmlwcyB3aXRoIFBVU0ggSU4gdGVjaG5vbG9neSIsInNvcnRObyI6Mn1dfQ==
title
Icon
icon-compose
Description
Easy-to-use, flexible planning of the plant
Icon
icon-minimize-alt
Description
Space-saving design
Icon
icon-wranch
Description
Simple startup
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=1419611
Outputs
4 analog outputs (0(4) to 20 mA, 0 to 10 V)
Connection
Terminal strips with PUSH IN technology on the front
Special features
The cycle time of the module can be configured, switching statuses are visualized with LEDs; quick wiring of operating voltage and system bus by simply plugging the modules together; space-saving design; operation with JUMO variTRON and in combination with earlier JUMO I/O modules (7050xx) possible; increased vibration and shock resistance through optional connection rails
Approvals
DNV; UL
Voltage supply
DC 24 V +25/-20 %, supply via central processing unit with system module 705171 (JUMO variTRON 500) or communication module 3-channel 705163 (JUMO variTRON 300, JUMO variTRON 500 touch)
Housing
Plastic housing for DIN-rail mounting in the control cabinet
Protection type
IP20
Ambient temperature range
-20 to +55 °C
Dimensions (W × H × D)
12 × 106.7 × 101 mm (without connection elements)
