Produkt Details
SKU
706520
Name

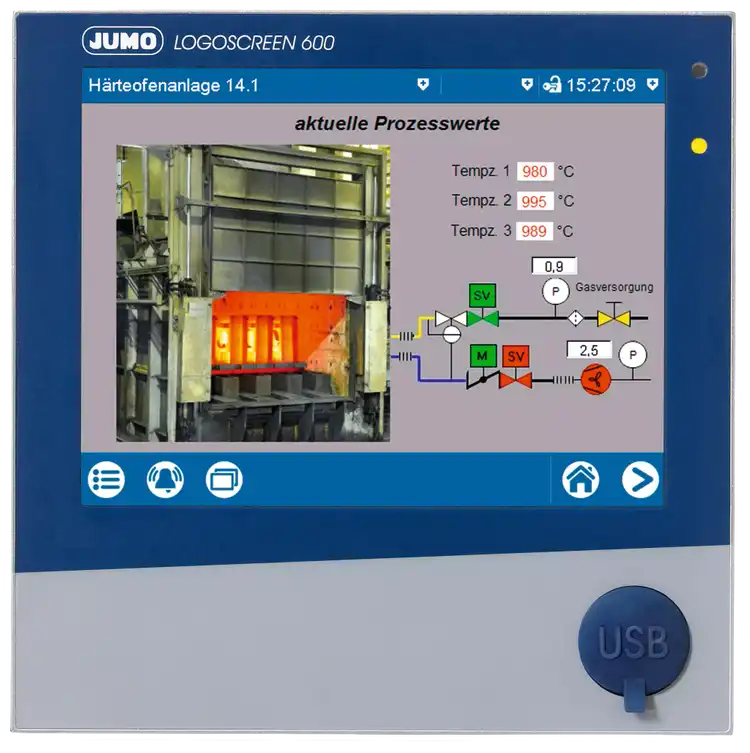

JUMO LOGOSCREEN 600
Description
Multiple versions of the JUMO LOGOSCREEN 600 are available for process data acquisition. These range from the device version without measurement input through to a device version with 6 measurement inputs and 12 individually switchable digital inputs/outputs.
Short Description
Paperless recorder with touchscreen
Price
€0.00
Availability
In Stock
Images
State
ARCHIVE
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9MjUzOTEzIiwiYmVuZWZpdHMiOltdLCJiZW5lZml0c0ludHJvZHVjdGlvbiI6IiIsInRlY2huaWNhbERhdGEiOlt7Im5hbWUiOiJNZWFzdXJlbWVudCBpbnB1dHMiLCJ2YWx1ZSI6IjAvMy82IHVzZXIgY29uZmlndXJhYmxlIGFuYWxvZyBpbnB1dHMgZm9yIFJURCB0ZW1wZXJhdHVyZSBwcm9iZXMsIHRoZXJtb2NvdXBsZXMsIGN1cnJlbnQgMCg0KSB0byAyMMKgbUEsIHZvbHRhZ2UgLTEwIHRvICsxMMKgViwgc3VwcG9ydCBvZiB1cCB0byAyNCBleHRlcm5hbCBjaGFubmVscyByZXNwZWN0aXZlbHkgKGFuYWxvZyBhbmQgZGlnaXRhbCkiLCJzb3J0Tm8iOjB9LHsibmFtZSI6IkRpZ2l0YWwgaW5wdXRzIChzb2xpZCkiLCJ2YWx1ZSI6IjAvMy82IGRpZ2l0YWwgaW5wdXRzICg4wqBIeikiLCJzb3J0Tm8iOjF9LHsibmFtZSI6IkRpZ2l0YWwgaW5wdXRzL291dHB1dHMgKHN3aXRjaGFibGUpIiwidmFsdWUiOiIxMiBkaWdpdGFsIGlucHV0cy9vdXRwdXRzIChvcHRpb25hbCksIGluY2x1ZGluZyAxIGNvdW50ZXIgaW5wdXQgKDEyLjXCoGtIeikiLCJzb3J0Tm8iOjJ9LHsibmFtZSI6IkFuYWxvZyBvdXRwdXRzIiwidmFsdWUiOiIwLzEvMiBhbmFsb2cgb3V0cHV0cywgdm9sdGFnZSAwIHRvwqAxMMKgViBvciBjdXJyZW50IDAoNCnCoHRvwqAyMMKgbUEiLCJzb3J0Tm8iOjN9LHsibmFtZSI6IkludGVyZmFjZXMiLCJ2YWx1ZSI6IlJTMjMyLzQ4NSBmb3IgYmFyY29kZSByZWFkZXIsIEV0aGVybmV0LCBVU0IgKGhvc3QvZGV2aWNlKSwgTW9kYnVzIG1hc3Rlci9zbGF2ZSAoUlM0ODUvVENQKSIsInNvcnRObyI6NH0seyJuYW1lIjoiUmVsYXkgKGNoYW5nZW92ZXIgY29udGFjdCkiLCJ2YWx1ZSI6IjEgKHN0YW5kYXJkKSIsInNvcnRObyI6NX0seyJuYW1lIjoiRGlzcGxheSIsInZhbHVlIjoiNS43IGluY2ggVEZUIGNvbG9yIHNjcmVlbiIsInNvcnRObyI6Nn0seyJuYW1lIjoiT3BlcmF0aW9uIiwidmFsdWUiOiJUb3VjaHNjcmVlbiIsInNvcnRObyI6N30seyJuYW1lIjoiSW50ZXJuYWwgbWVtb3J5IiwidmFsdWUiOiIx4oCJR0IiLCJzb3J0Tm8iOjh9LHsibmFtZSI6IkV4dGVybmFsIHN0b3JhZ2UgbWVkaWEiLCJ2YWx1ZSI6IlVTQiBmbGFzaCBkcml2ZSIsInNvcnRObyI6OX0seyJuYW1lIjoiTWVtb3J5IGN5Y2xlIiwidmFsdWUiOiIxMjXCoG1zIHRvIDMyMDAwwqBzIiwic29ydE5vIjoxMH0seyJuYW1lIjoiRnJvbnQgcGFuZWwiLCJ2YWx1ZSI6IlppbmMgZGllLWNhc3Qgd2l0aCBkZWNvciBmb2lsICgxNDQgw5cgMTQ0IG1tIGZvcm1hdCkiLCJzb3J0Tm8iOjExfSx7Im5hbWUiOiJBcHByb3ZhbHMiLCJ2YWx1ZSI6ImNVTHVzLCBGREEgY29tcGxpYW50IGFjY29yZGluZyB0byAyMSBDRlIgUGFydCAxMSAoYXZhaWxhYmxlIHdpdGggZXh0cmEgY29kZSA4ODggYXMgYW4gb3B0aW9uYWwgZXh0cmEpIiwic29ydE5vIjoxMn0seyJuYW1lIjoiU3BlY2lhbCBmZWF0dXJlcyIsInZhbHVlIjoiTGlmZWN5Y2xlIGRhdGEgbWFuYWdlbWVudCwgd2ViIHNlcnZlciBmdW5jdGlvbiB3aXRoIHZpc3VhbGl6YXRpb24gYXMgb24gdGhlIGRldmljZSwgaW50ZWdyYXRvci9jb3VudGVyLCBtYXRoL2xvZ2ljIGZ1bmN0aW9ucyAob3B0aW9uYWwpLCBTTlRQIHRpbWUgc3luY2hyb25pemF0aW9uLCAxIGJhdGNoIHJlcG9ydCwgdXAgdG8gNiBjdXN0b21lci1zcGVjaWZpYyBlZGl0YWJsZSBwcm9jZXNzIHNjcmVlbnMsIGludHVpdGl2ZSBpY29uLWJhc2VkIG9wZXJhdGlvbiBhbmQgdmlzdWFsaXphdGlvbiBjb25jZXB0LCBtb3VudGluZyBkZXB0aCA8IDExOcKgbW0sIHVwIHRvIDUvNTAgdXNlcnMsIGRpc3BsYXkgb2YgdGhlIHByb2Nlc3MgdmFsdWVzIG9uIHNtYXJ0cGhvbmVzIGFuZCB0YWJsZXRzIHZpYSBhcHAsIG1hbmlwdWxhdGlvbiBkZXRlY3Rpb24gd2l0aCBkaWdpdGFsIGNlcnRpZmljYXRlIChleHRyYSBjb2RlIDg4NykiLCJzb3J0Tm8iOjEzfSx7Im5hbWUiOiJQcm90ZWN0aW9uIHR5cGUgb24gdGhlIGZyb250IiwidmFsdWUiOiJJUDY1Iiwic29ydE5vIjoxNH0seyJuYW1lIjoiVm9sdGFnZSBzdXBwbHkiLCJ2YWx1ZSI6IkFDIDExMMKgdG/CoDI0MMKgViArMTAvLTE1wqAlLCA0OMKgdG/CoDYzwqBIeiBvciBBQy9EQyAyMMKgdG/CoDMwwqBWLCA0OMKgdG/CoDYzwqBIeiIsInNvcnRObyI6MTV9XSwiaGlnaGxpZ2h0cyI6W3siaWNvblRleHQiOiJpY29uLXNoaWVsZCIsImRlc2NyaXB0aW9uIjoiSGlnaCBkZWdyZWUgb2YgcHJvY2VzcyByZWxpYWJpbGl0eSIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24tZmxvdy1icmFuY2giLCJkZXNjcmlwdGlvbiI6IkhpZ2ggbGV2ZWwgb2YgaW50ZXJmYWNlIGZsZXhpYmlsaXR5IiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi1tb25pdG9yIiwiZGVzY3JpcHRpb24iOiJCYXRjaCByZXBvcnQgcmVjb3JkaW5nIiwidHlwZSI6IklDT04ifV0sImRpZmZlcmVudGlhdG9ycyI6W3sidGV4dCI6Ik1heC4gNiBhbmFsb2cgYW5kIG1heC4gMTIgZGlnaXRhbCBpbnB1dHMiLCJzb3J0Tm8iOjB9LHsidGV4dCI6Ik1heC4gMTIgZGlnaXRhbCBpbnB1dHMvb3V0cHV0cyIsInNvcnRObyI6MX0seyJ0ZXh0IjoiQmF0Y2ggcmVwb3J0IHJlY29yZGluZyIsInNvcnRObyI6Mn1dfQ==
title
Icon
icon-shield
Description
High degree of process reliability
Icon
icon-flow-branch
Description
High level of interface flexibility
Icon
icon-monitor
Description
Batch report recording
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=253913
Measurement inputs
0/3/6 user configurable analog inputs for RTD temperature probes, thermocouples, current 0(4) to 20 mA, voltage -10 to +10 V, support of up to 24 external channels respectively (analog and digital)
Digital inputs (solid)
0/3/6 digital inputs (8 Hz)
Digital inputs/outputs (switchable)
12 digital inputs/outputs (optional), including 1 counter input (12.5 kHz)
Analog outputs
0/1/2 analog outputs, voltage 0 to 10 V or current 0(4) to 20 mA
Interfaces
RS232/485 for barcode reader, Ethernet, USB (host/device), Modbus master/slave (RS485/TCP)
Relay (changeover contact)
1 (standard)
Display
5.7 inch TFT color screen
Operation
Touchscreen
Internal memory
1 GB
External storage media
USB flash drive
Memory cycle
125 ms to 32000 s
Front panel
Zinc die-cast with decor foil (144 × 144 mm format)
Approvals
cULus, FDA compliant according to 21 CFR Part 11 (available with extra code 888 as an optional extra)
Special features
Lifecycle data management, web server function with visualization as on the device, integrator/counter, math/logic functions (optional), SNTP time synchronization, 1 batch report, up to 6 customer-specific editable process screens, intuitive icon-based operation and visualization concept, mounting depth < 119 mm, up to 5/50 users, display of the process values on smartphones and tablets via app, manipulation detection with digital certificate (extra code 887)
Protection type on the front
IP65
Voltage supply
AC 110 to 240 V +10/-15 %, 48 to 63 Hz or AC/DC 20 to 30 V, 48 to 63 Hz
