Overview
title
Produkt Details
SKU
709020
Name

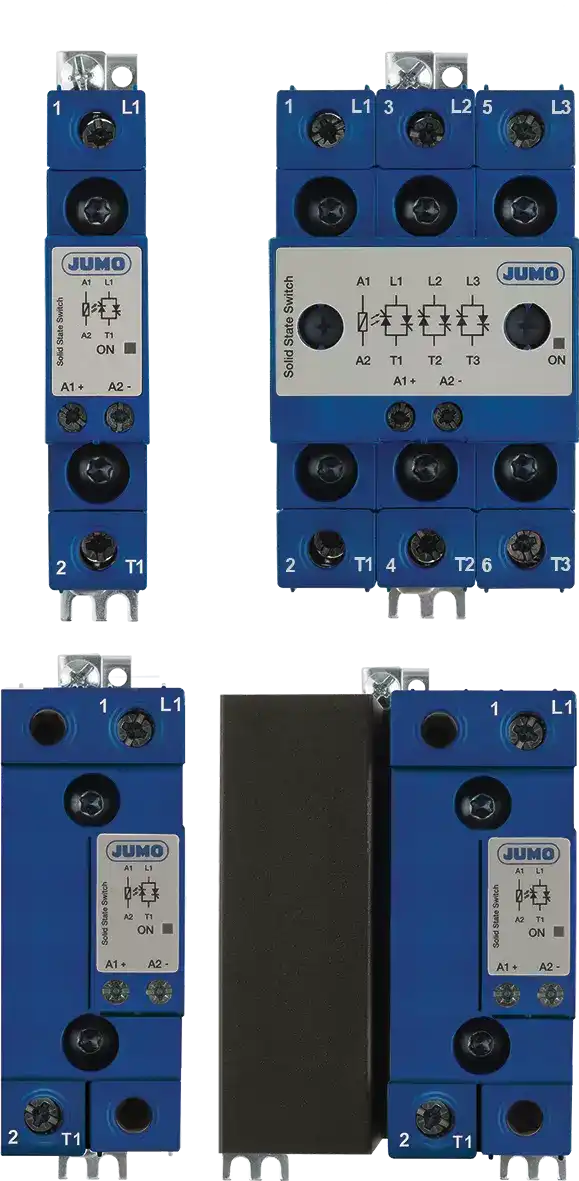

JUMO TYA 432
Description
Thyristor power switches are required for contactless switching of the alternating current loads. A typical application is the switching of resistive inductive loads at a high switching frequency, particularly in the industrial sector.
Short Description
Thyristor power switch
Availability
In Stock
Images
State
LIVE
Variants
Version
Load current
- 20 A ✗
- 25 A (only AC 240 V and 600 V possible!) ✓
- 30 A ✗
- 40 A (only AC 600 V possible!) ✗
- 60 A (only AC 600 V possible!) ✗
Basic type
- Thyristor power switch ✓
- Thyristor power switch with cooling element (1-phase) ✗
- Thyristor power switch with cooling element (3-phase) ✗
Mains voltage
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9NDYxMiIsImJlbmVmaXRzIjpbXSwiYmVuZWZpdHNJbnRyb2R1Y3Rpb24iOiIiLCJ0ZWNobmljYWxEYXRhIjpbeyJuYW1lIjoiUGVhayBibG9ja2luZyB2b2x0YWdlIiwidmFsdWUiOiIxNjAwwqBWczsgMTIwMMKgVnMiLCJzb3J0Tm8iOjB9LHsibmFtZSI6IkFtYmllbnQgdGVtcGVyYXR1cmUiLCJ2YWx1ZSI6Ii00MMKgdG/CoCs3MMKgwrBDIiwic29ydE5vIjoxfSx7Im5hbWUiOiJHYWx2YW5pYyBpc29sYXRpb24iLCJ2YWx1ZSI6IkJldHdlZW4gdGhlIGNvbnRyb2wgYW5kIHBvd2VyIHNlY3Rpb24gdGhyb3VnaCBvcHRvY291cGxlcnM7IGluc3VsYXRpb24gdm9sdGFnZSA0wqBrViIsInNvcnRObyI6Mn0seyJuYW1lIjoiTG9hZCBjdXJyZW50IChtYXguKSIsInZhbHVlIjoiNjDCoEEgKGF0IDQwwqDCsEMpIiwic29ydE5vIjozfSx7Im5hbWUiOiJPcGVyYXRpbmcgbW9kZSIsInZhbHVlIjoiWmVybyBwb2ludCBjb250cm9sIiwic29ydE5vIjo0fSx7Im5hbWUiOiJMb2FkIHZvbHRhZ2UiLCJ2YWx1ZSI6IjI0IHRvIDI2NcKgVsKgQUM7IDQyIHRvIDY2MMKgVsKgQUMiLCJzb3J0Tm8iOjV9LHsibmFtZSI6IkFwcHJvdmFsIiwidmFsdWUiOiJjVUx1cy9DU0EiLCJzb3J0Tm8iOjZ9LHsibmFtZSI6IlByb3RlY3Rpb24gdHlwZSIsInZhbHVlIjoiSVAyMCIsInNvcnRObyI6N30seyJuYW1lIjoiQ29udHJvbCB2b2x0YWdlIiwidmFsdWUiOiLCjDQgdG8gMzLCoFYgREM7wo0gNSB0byAzMsKgViBEQyIsInNvcnRObyI6OH1dLCJoaWdobGlnaHRzIjpbeyJpY29uVGV4dCI6Imljb24tc25vd2ZsYWtlIiwiZGVzY3JpcHRpb24iOiJXaXRoIGhlYXQgc2luayIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24tY2hlY2siLCJkZXNjcmlwdGlvbiI6IlVMIGFwcHJvdmFsIiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi1wYXVzZSIsImRlc2NyaXB0aW9uIjoiQ29udHJvbC9wb3dlciBzZWN0aW9uIGdhbHZhbmljYWxseSBpc29sYXRlZCIsInR5cGUiOiJJQ09OIn1dLCJkaWZmZXJlbnRpYXRvcnMiOlt7InRleHQiOiJMb2FkIGN1cnJlbnRzIDIwwqBBLCAyNcKgQSwgNDDCoEEsIDYwwqBBIiwic29ydE5vIjowfSx7InRleHQiOiJDb250cm9sIHZvbHRhZ2UgNSB0byAzMsKgVsKgREMiLCJzb3J0Tm8iOjF9LHsidGV4dCI6Ik1haW5zIHZvbHRhZ2VzIDI0MMKgViwgNjAwwqBWIChtYXguKSIsInNvcnRObyI6Mn1dfQ==
title
Icon
icon-snowflake
Description
With heat sink
Icon
icon-check
Description
UL approval
Icon
icon-pause
Description
Control/power section galvanically isolated
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=4612
Peak blocking voltage
1600 Vs; 1200 Vs
Ambient temperature
-40 to +70 °C
Galvanic isolation
Between the control and power section through optocouplers; insulation voltage 4 kV
Load current (max.)
60 A (at 40 °C)
Operating mode
Zero point control
Load voltage
24 to 265 V AC; 42 to 660 V AC
Approval
cULus/CSA
Protection type
IP20
Control voltage
4 to 32 V DC; 5 to 32 V DC
