Produkt Details
SKU
608003
Name

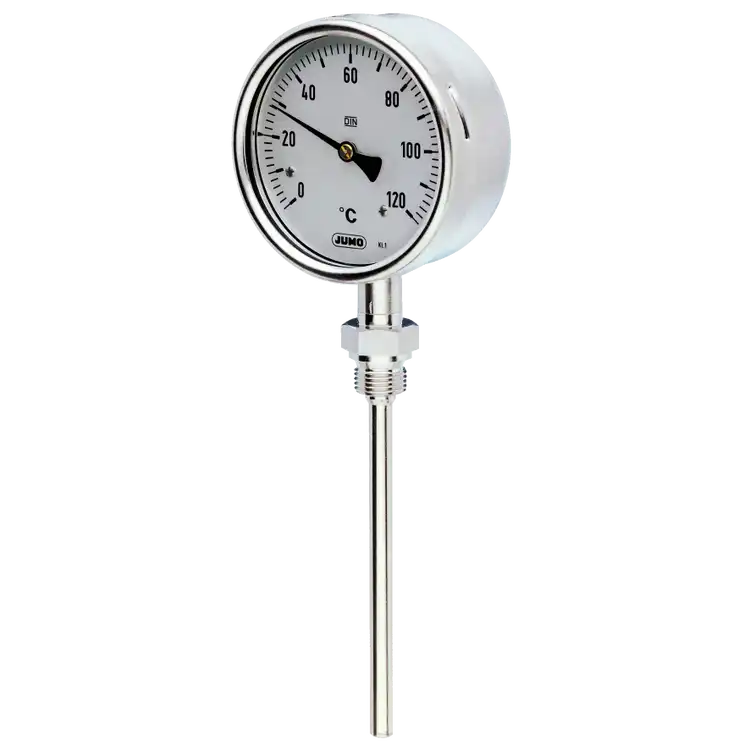

Dial thermometer
Description
The measuring principle of the thermometer is based on a bimetal coil in a stainless steel or brass protection tube. If the temperature increases or falls, it turns and has a direct effect on the indicator via an axis. Versions of the 608003 products comply with DIN EN 13190, class 1.
Short Description
For chemical applications
Price
€0.00
Availability
In Stock
Images
State
LIVE
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9MzA2NyIsImJlbmVmaXRzIjpbXSwiYmVuZWZpdHNJbnRyb2R1Y3Rpb24iOiIiLCJ0ZWNobmljYWxEYXRhIjpbeyJuYW1lIjoiTWVhc3VyaW5nIHJhbmdlIiwidmFsdWUiOiItNDDCoHRvwqArNDUwwqDCsEMiLCJzb3J0Tm8iOjB9LHsibmFtZSI6IkRpc3BsYXkgcmFuZ2UiLCJ2YWx1ZSI6Ii01MMKgdG/CoCs1MDDCoMKwQyIsInNvcnRObyI6MX0seyJuYW1lIjoiRmVhdHVyZXMiLCJ2YWx1ZSI6IlN0YWlubGVzcyBzdGVlbCBjYXNlIiwic29ydE5vIjoyfSx7Im5hbWUiOiJDYXBpbGxhcnkvcmlnaWQgdGhlcm1vd2VsbCIsInZhbHVlIjoiUmlnaWQgdGhlcm1vd2VsbCIsInNvcnRObyI6M30seyJuYW1lIjoiQWNjdXJhY3kgY2xhc3MgYWNjb3JkaW5nIHRvIERJTiBFTiAxMzE5MCIsInZhbHVlIjoiQ2xhc3MgMSIsInNvcnRObyI6NH0seyJuYW1lIjoiQXBwcm92YWwiLCJ2YWx1ZSI6IkFURVggKDYwODAwMykiLCJzb3J0Tm8iOjV9LHsibmFtZSI6IlByb2JlIG91dGxldCIsInZhbHVlIjoiVmVydGljYWwgb3IgaG9yaXpvbnRhbCIsInNvcnRObyI6Nn0seyJuYW1lIjoiQ2FzZSBzaXplIiwidmFsdWUiOiI2MMKgbW0sIDgwwqBtbSwgMTAwwqBtbSwgMTYwwqBtbSIsInNvcnRObyI6N30seyJuYW1lIjoiQXJlYXMgb2YgYXBwbGljYXRpb24iLCJ2YWx1ZSI6Ik1lY2hhbmljYWwgZW5naW5lZXJpbmcsIHByb2Nlc3MgdGVjaG5vbG9neSwgZ2VhcmJveCBjb25zdHJ1Y3Rpb24sIGNoZW1pY2FsIGluZHVzdHJ5LCBwbGFudCBlbmdpbmVlcmluZyIsInNvcnRObyI6OH1dLCJoaWdobGlnaHRzIjpbeyJpY29uVGV4dCI6Imljb24tdGhlcm1vbWV0ZXIiLCJkZXNjcmlwdGlvbiI6IkltcGVydmlvdXMgdG8gYW1iaWVudCB0ZW1wZXJhdHVyZSIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24tbW9uaXRvciIsImRlc2NyaXB0aW9uIjoiQWNjdXJhY3kgY2xhc3MgMSIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24tYmF0dGVyeS1mdWxsIiwiZGVzY3JpcHRpb24iOiJXaXRob3V0IGF1eGlsaWFyeSBlbmVyZ3kiLCJ0eXBlIjoiSUNPTiJ9XSwiZGlmZmVyZW50aWF0b3JzIjpbeyJ0ZXh0IjoiTWF4LiBjYXNlIHNpemU6IMOYwqAxNjDCoG1tIiwic29ydE5vIjowfSx7InRleHQiOiJNZWFzdXJpbmcgcmFuZ2U6IC00MCB0byArNTAwwqDCsEMiLCJzb3J0Tm8iOjF9LHsidGV4dCI6IkFjY3VyYWN5IGNsYXNzIDEiLCJzb3J0Tm8iOjJ9XX0=
title
Icon
icon-thermometer
Description
Impervious to ambient temperature
Icon
icon-monitor
Description
Accuracy class 1
Icon
icon-battery-full
Description
Without auxiliary energy
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=3067
Measuring range
-40 to +450 °C
Display range
-50 to +500 °C
Features
Stainless steel case
Capillary/rigid thermowell
Rigid thermowell
Accuracy class according to DIN EN 13190
Class 1
Approval
ATEX (608003)
Probe outlet
Vertical or horizontal
Case size
60 mm, 80 mm, 100 mm, 160 mm
Areas of application
Mechanical engineering, process technology, gearbox construction, chemical industry, plant engineering
