Produkt Details
SKU
906138
Name

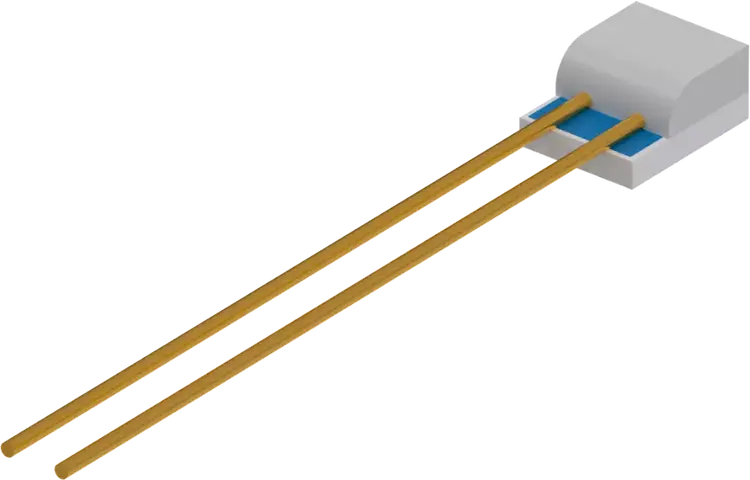

Platinum-chip temperature sensors PCWR-M-AuNi
Description
Platinum chip temperature sensors of the PCWR design type belong to the category of temperature sensors that were made using thin-film technology. The sensors have connection wires extending to the center of the sensor and are suitable for confined spaces. The sensors are available as Pt100 and Pt1000.
Short Description
with connection wires according to DIN EN IEC 60751
Price
€0.00
Availability
In Stock
Images
State
LIVE
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9MTIzNDE5MSIsImJlbmVmaXRzIjpbXSwiYmVuZWZpdHNJbnRyb2R1Y3Rpb24iOiIiLCJ0ZWNobmljYWxEYXRhIjpbeyJuYW1lIjoiRGVzaWduIHR5cGUiLCJ2YWx1ZSI6IlBDV1ItTS1BdU5pIiwic29ydE5vIjowfSx7Im5hbWUiOiJTdGFuZGFyZCIsInZhbHVlIjoiRElOIEVOIElFQyA2MDc1MSIsInNvcnRObyI6MX0seyJuYW1lIjoiVGVtcGVyYXR1cmUgcmFuZ2UiLCJ2YWx1ZSI6Ii03MCB0byArNTAwwqDCsEMiLCJzb3J0Tm8iOjJ9LHsibmFtZSI6IlRlbXBlcmF0dXJlIGNvZWZmaWNpZW50IiwidmFsdWUiOiLOsSA9IDMuODUwIMOXIDEwLTPCoMKwQy0xIChiZXR3ZWVuIDAgYW5kIDEwMMKgwrBDKSIsInNvcnRObyI6M30seyJuYW1lIjoiQ29ubmVjdGlvbiB3aXJlcyIsInZhbHVlIjoiR29sZC1wbGF0ZWQgbmlja2VsIHdpcmUsIGV4dGVuZGluZyB0b3dhcmRzIHRoZSBjZW50ZXIgb2YgdGhlIHNlbnNvciAocmV2ZXJzZSkiLCJzb3J0Tm8iOjR9LHsibmFtZSI6IlByb2Nlc3NpbmciLCJ2YWx1ZSI6IldlbGRpbmcsIHNvbGRlcmluZywgYW5kIGNyaW1waW5nIiwic29ydE5vIjo1fSx7Im5hbWUiOiJBZHZhbnRhZ2VzIiwidmFsdWUiOiJGb3IgY29uZmluZWQgc3BhY2VzLCBzdGFuZGFyZGl6ZWQgbm9taW5hbCB2YWx1ZXMgKFB0MTAwLCBQdDEwMDApLCBzdGFuZGFyZGl6ZWQgdG9sZXJhbmNlcywgaGlnaCBkZWdyZWUgb2YgbWVhc3VyaW5nIGFjY3VyYWN5LCBleGNlbGxlbnQgbG9uZy10ZXJtIHN0YWJpbGl0eSwgdmVyeSBnb29kIHJlcHJvZHVjaWJpbGl0eSBvZiBlbGVjdHJpY2FsIGNoYXJhY3RlcmlzdGljcyIsInNvcnRObyI6Nn0seyJuYW1lIjoiQXJlYXMgb2YgYXBwbGljYXRpb24iLCJ2YWx1ZSI6IkhlYXRpbmcgZW5naW5lZXJpbmcsIGFpciBjb25kaXRpb25pbmcgdGVjaG5vbG9neSwgdmVudGlsYXRpb24gdGVjaG5vbG9neSwgaW5kdXN0cmlhbCB0ZWNobm9sb2d5LCBtZWRpY2FsIGFuZCBsYWJvcmF0b3J5IGVuZ2luZWVyaW5nLCB3aGl0ZSBnb29kcywgbWVjaGFuaWNhbCBlbmdpbmVlcmluZywgbW90b3IgYW5kIGNvbW1lcmNpYWwgdmVoaWNsZXMiLCJzb3J0Tm8iOjd9XSwiaGlnaGxpZ2h0cyI6W3siaWNvblRleHQiOiJpY29uLXN1Y2Nlc3MiLCJkZXNjcmlwdGlvbiI6IkZvciBjb25maW5lZCBzcGFjZXMiLCJ0eXBlIjoiSUNPTiJ9LHsiaWNvblRleHQiOiJpY29uLXRoZXJtb21ldGVyIiwiZGVzY3JpcHRpb24iOiJIaWdoIG1lYXN1cmluZyBhY2N1cmFjeSIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24tbW9uaXRvciIsImRlc2NyaXB0aW9uIjoiSGlnaCBsb25nLXRlcm0gc3RhYmlsaXR5IiwidHlwZSI6IklDT04ifV0sImRpZmZlcmVudGlhdG9ycyI6W3sidGV4dCI6IkZvciB0ZW1wZXJhdHVyZXMgZnJvbSAtNzDCoHRvwqArNTAwwqDCsEMiLCJzb3J0Tm8iOjB9LHsidGV4dCI6IkdvbGQtcGxhdGVkIG5pY2tlbCB3aXJlIGNvbm5lY3Rpb24iLCJzb3J0Tm8iOjF9LHsidGV4dCI6IkZvciBjb25maW5lZCBzcGFjZXMiLCJzb3J0Tm8iOjJ9XX0=
title
Icon
icon-success
Description
For confined spaces
Icon
icon-thermometer
Description
High measuring accuracy
Icon
icon-monitor
Description
High long-term stability
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=1234191
Design type
PCWR-M-AuNi
Standard
DIN EN IEC 60751
Temperature range
-70 to +500 °C
Temperature coefficient
α = 3.850 × 10-3 °C-1 (between 0 and 100 °C)
Connection wires
Gold-plated nickel wire, extending towards the center of the sensor (reverse)
Processing
Welding, soldering, and crimping
Advantages
For confined spaces, standardized nominal values (Pt100, Pt1000), standardized tolerances, high degree of measuring accuracy, excellent long-term stability, very good reproducibility of electrical characteristics
Areas of application
Heating engineering, air conditioning technology, ventilation technology, industrial technology, medical and laboratory engineering, white goods, mechanical engineering, motor and commercial vehicles
