ps-1
Overview
title
Produkt Details
SKU
909740
Name

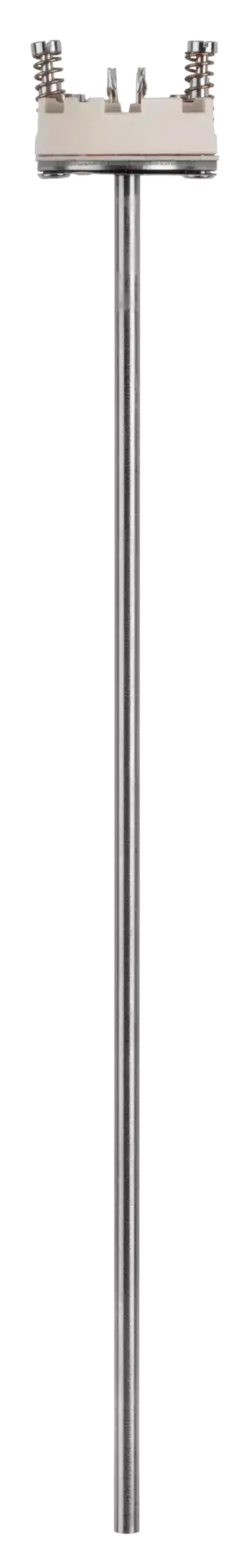

Measuring inserts for screw-in RTD temperature probes
Description
The measuring inserts for screw-in RTD temperature probes with a form B terminal head are used as replacements. They are suitable for RTD temperature probes according to data sheet 902020 and 902820. Sheath measuring inserts are available for instances when the length of the measuring insert is 800 mm or longer.
Short Description
With form B terminal head
Price
€97.36
Availability
In Stock
Images
State
LIVE
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9NDI1MyIsImJlbmVmaXRzIjpbXSwiYmVuZWZpdHNJbnRyb2R1Y3Rpb24iOiIiLCJ0ZWNobmljYWxEYXRhIjpbeyJuYW1lIjoiVGVtcGVyYXR1cmUgcmFuZ2UiLCJ2YWx1ZSI6Ii0yMDDCoHRvwqArNjAwIiwic29ydE5vIjowfSx7Im5hbWUiOiJTZW5zb3IiLCJ2YWx1ZSI6IlB0MTAwIChQdDUwMCBvciBQdDEwMDAgYXMgb3B0aW9uYWwgZXh0cmEpIiwic29ydE5vIjoxfSx7Im5hbWUiOiJDb25uZWN0aW9uIiwidmFsdWUiOiJUd28td2lyZSwgdGhyZWUtd2lyZSwgb3IgZm91ci13aXJlIGNpcmN1aXQiLCJzb3J0Tm8iOjJ9LHsibmFtZSI6IkNvbm5lY3Rpb24gc29ja2V0IiwidmFsdWUiOiJTdWl0YWJsZSBmb3IgZm9ybSBCLCBCQkssIGFuZCBCVVogdGVybWluYWwgaGVhZHMiLCJzb3J0Tm8iOjN9LHsibmFtZSI6IlByb3RlY3Rpb24gdHViZSIsInZhbHVlIjoiU3RhaW5sZXNzIHN0ZWVsIDEuNDU3MSIsInNvcnRObyI6NH0seyJuYW1lIjoiU2hlYXRoIGNhYmxlIiwidmFsdWUiOiJTdGFpbmxlc3Mgc3RlZWwgMS40NTcxIiwic29ydE5vIjo1fSx7Im5hbWUiOiJJbXBsZW1lbnRhdGlvbiBvcHRpb25zIiwidmFsdWUiOiJNZWFzdXJpbmcgaW5zZXJ0IGZvciBzY3Jldy1pbiBSVEQgdGVtcGVyYXR1cmUgcHJvYmVzIGFjY29yZGluZyB0byBkYXRhIHNoZWV0IDkwMTAyMCwgOTAyMDIwLCBhbmQgOTAyODIwIiwic29ydE5vIjo2fSx7Im5hbWUiOiJUcmFuc21pdHRlciIsInZhbHVlIjoiQW5hbG9nIHRyYW5zbWl0dGVyIG91dHB1dCA0wqB0b8KgMjDCoG1BIGZvciBSVEQgdGVtcGVyYXR1cmUgcHJvYmVzLCBhbmFsb2cgdHJhbnNtaXR0ZXIgb3V0cHV0IDDCoHRvwqAxMMKgViBmb3IgUlREIHRlbXBlcmF0dXJlIHByb2JlcywgcHJvZ3JhbW1hYmxlIHRyYW5zbWl0dGVyIG91dHB1dCA0wqB0b8KgMjDCoG1BLzIwwqB0b8KgNMKgbUEgZm9yIHRoZXJtb2NvdXBsZXMgb3IgUlREIHRlbXBlcmF0dXJlIHByb2JlcyIsInNvcnRObyI6N30seyJuYW1lIjoiT3B0aW9uIiwidmFsdWUiOiJUcmFuc21pdHRlcjsgdHdvLXdpcmUsIHRocmVlLXdpcmUsIG9yIGZvdXItd2lyZSBjaXJjdWl0OyBQdDUwMCBvciBQdDEwMDAgc2Vuc29ycyIsInNvcnRObyI6OH0seyJuYW1lIjoiTWVhc3VyaW5nIGluc2VydCBsZW5ndGgiLCJ2YWx1ZSI6IjMxNcKgdG/CoDgwMMKgbW0iLCJzb3J0Tm8iOjl9XSwiaGlnaGxpZ2h0cyI6W3siaWNvblRleHQiOiJpY29uLXRoZXJtb21ldGVyIiwiZGVzY3JpcHRpb24iOiJTaW5nbGUgYW5kIGRvdWJsZSBtZWFzdXJpbmcgaW5zZXJ0IiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi1hbnNjaGx1ZXNzZSIsImRlc2NyaXB0aW9uIjoiVHdvLXdpcmUsIHRocmVlLXdpcmUsIG9yIGZvdXItd2lyZSBjaXJjdWl0IiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi1jYXJ0IiwiZGVzY3JpcHRpb24iOiJUcmFuc21pdHRlciBhdmFpbGFibGUiLCJ0eXBlIjoiSUNPTiJ9XSwiZGlmZmVyZW50aWF0b3JzIjpbeyJ0ZXh0IjoiVGVtcC46IC0yMDDCoHRvwqArNjAwwqDCsEMiLCJzb3J0Tm8iOjB9LHsidGV4dCI6Ik1lYXN1cmluZyBpbnNlcnQgbGVuZ3RoIDMxNcKgdG/CoDgwMMKgbW0iLCJzb3J0Tm8iOjF9LHsidGV4dCI6IlNlbnNvcjogUHQxMDAsIFB0NTAwLCBvciBQdDEwMDAiLCJzb3J0Tm8iOjJ9XX0=
title
Icon
icon-thermometer
Description
Single and double measuring insert
Icon
icon-anschluesse
Description
Two-wire, three-wire, or four-wire circuit
Icon
icon-cart
Description
Transmitter available
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=4253
Temperature range
-200 to +600
Sensor
Pt100 (Pt500 or Pt1000 as optional extra)
Connection
Two-wire, three-wire, or four-wire circuit
Connection socket
Suitable for form B, BBK, and BUZ terminal heads
Protection tube
Stainless steel 1.4571
Sheath cable
Stainless steel 1.4571
Implementation options
Measuring insert for screw-in RTD temperature probes according to data sheet 901020, 902020, and 902820
Transmitter
Analog transmitter output 4 to 20 mA for RTD temperature probes, analog transmitter output 0 to 10 V for RTD temperature probes, programmable transmitter output 4 to 20 mA/20 to 4 mA for thermocouples or RTD temperature probes
Option
Transmitter; two-wire, three-wire, or four-wire circuit; Pt500 or Pt1000 sensors
Measuring insert length
315 to 800 mm
