Name

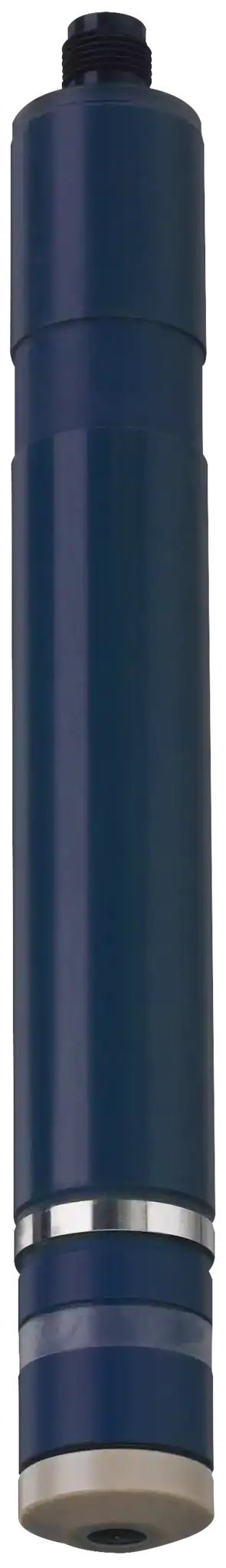

JUMO tecLine Br
Description
The membrane-covered, amperometric sensor works on the three-electrode principle; it is used for the online measurement of hypobromous acid (HOBr). The electronic components integrated in the sensors provide a temperature-compensated current signal (4 to 20 mA) or a Modbus RTU output signal.
Short Description
Sensor for bromine
Price
€0.00
Availability
In Stock
Images
State
LIVE
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9NDQzNjIwIiwiYmVuZWZpdHMiOltdLCJiZW5lZml0c0ludHJvZHVjdGlvbiI6IiIsInRlY2huaWNhbERhdGEiOlt7Im5hbWUiOiJNZWFzdXJpbmcgcmFuZ2UiLCJ2YWx1ZSI6IjAuMDXCoHRvwqAyMMKgbWcvbCAocHBtKSIsInNvcnRObyI6MH0seyJuYW1lIjoiTWVhc3VyaW5nIHByaW5jaXBsZSIsInZhbHVlIjoiTWVtYnJhbmUtY292ZXJlZCwgYW1wZXJvbWV0cmljLCBwb3RlbnRpb3N0YXRpYyB0aHJlZS1lbGVjdHJvZGUgc3lzdGVtIHdpdGggaW50ZWdyYXRlZCBlbGVjdHJvbmljIGNvbXBvbmVudHMiLCJzb3J0Tm8iOjF9LHsibmFtZSI6IkluZmxvdyBzcGVlZCIsInZhbHVlIjoiQXBwcm94LiAxNcKgY20vcyIsInNvcnRObyI6Mn0seyJuYW1lIjoiUmVzcG9uc2UgdGltZSB0OTAiLCJ2YWx1ZSI6IkFwcHJveC4gMsKgbWludXRlcyIsInNvcnRObyI6M30seyJuYW1lIjoiT3BlcmF0aW5nIHRlbXBlcmF0dXJlIiwidmFsdWUiOiIwwqB0b8KgNDXCoMKwQyIsInNvcnRObyI6NH0seyJuYW1lIjoiU2V0dGxpbmcgdGltZSIsInZhbHVlIjoiQXBwcm94LiAywqBocnMgZm9yIGluaXRpYWwgc3RhcnR1cCIsInNvcnRObyI6NX0seyJuYW1lIjoicEggdmFsdWUgYXJlYSBvZiBhcHBsaWNhdGlvbiIsInZhbHVlIjoicEjCoDYuNcKgdG/CoHBIwqA5LjUiLCJzb3J0Tm8iOjZ9LHsibmFtZSI6IkFwcGxpY2F0aW9uIGFyZWFzIiwidmFsdWUiOiJEaXNpbmZlY3Rpb24gb2YgZHJpbmtpbmcgd2F0ZXIsIHN3aW1taW5nIHBvb2wgd2F0ZXIsIHNlcnZpY2Ugd2F0ZXIsIHByb2Nlc3Mgd2F0ZXIsIGFuZCBzZWF3YXRlciIsInNvcnRObyI6N31dLCJoaWdobGlnaHRzIjpbeyJpY29uVGV4dCI6Imljb24tYW5zY2hsdWVzc2UiLCJkZXNjcmlwdGlvbiI6IlRocmVlLWVsZWN0cm9kZSBwcmluY2lwbGUiLCJ0eXBlIjoiSUNPTiJ9LHsiaWNvblRleHQiOiJpY29uLXRoZXJtb21ldGVyIiwiZGVzY3JpcHRpb24iOiJJbnRlZ3JhdGVkIHRlbXBlcmF0dXJlIGNvbXBlbnNhdGlvbiIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24tY2hlY2siLCJkZXNjcmlwdGlvbiI6IkVhc3kgY2FsaWJyYXRpb24iLCJ0eXBlIjoiSUNPTiJ9XSwiZGlmZmVyZW50aWF0b3JzIjpbeyJ0ZXh0IjoiTWVhc3VyaW5nIHJhbmdlOiAwLjA1wqB0b8KgMjDCoG1nL2wiLCJzb3J0Tm8iOjB9LHsidGV4dCI6IlJlc3BvbnNlIHRpbWU6IGFwcHJveC4gMsKgbWluIiwic29ydE5vIjoxfSx7InRleHQiOiJBbmFsb2cgYW5kIGRpZ2l0YWwgb3V0cHV0cyIsInNvcnRObyI6Mn1dfQ==
title
Icon
icon-anschluesse
Description
Three-electrode principle
Icon
icon-thermometer
Description
Integrated temperature compensation
Icon
icon-check
Description
Easy calibration
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=443620
Measuring range
0.05 to 20 mg/l (ppm)
Measuring principle
Membrane-covered, amperometric, potentiostatic three-electrode system with integrated electronic components
Inflow speed
Approx. 15 cm/s
Response time t90
Approx. 2 minutes
Operating temperature
0 to 45 °C
Settling time
Approx. 2 hrs for initial startup
pH value area of application
pH 6.5 to pH 9.5
Application areas
Disinfection of drinking water, swimming pool water, service water, process water, and seawater
