Produkt Details
SKU
404312
Name

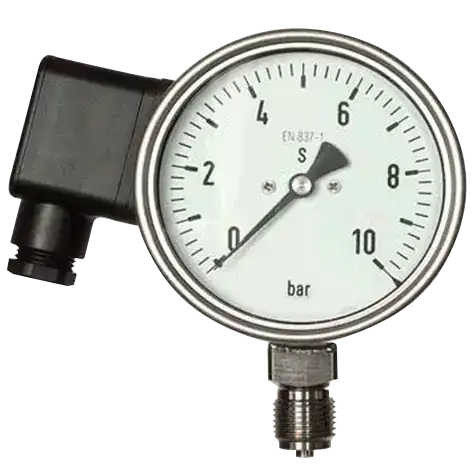

Pressure transmitter
Description
The product acquires measuring ranges from -1 to +400 bar. It is mainly used in the chemical and process engineering industry as a combination between an on-site analog display with an analog standard output signal for remote transmission.
Short Description
With analog actual value display
Price
€0.00
Availability
In Stock
Images
State
LIVE
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9Njk4NyIsImJlbmVmaXRzIjpbXSwiYmVuZWZpdHNJbnRyb2R1Y3Rpb24iOiIiLCJ0ZWNobmljYWxEYXRhIjpbeyJuYW1lIjoiVGVtcGVyYXR1cmUiLCJ2YWx1ZSI6Ii0yMCB0byArNjDCoMKwQyIsInNvcnRObyI6MH0seyJuYW1lIjoiTWVhc3VyaW5nIHJhbmdlIiwidmFsdWUiOiItMSB0byArNDAwwqBiYXIiLCJzb3J0Tm8iOjF9LHsibmFtZSI6IkFyZWFzIG9mIGFwcGxpY2F0aW9uIiwidmFsdWUiOiJDaGVtaWNhbHMgYW5kIHByb2Nlc3MgZW5naW5lZXJpbmciLCJzb3J0Tm8iOjJ9LHsibmFtZSI6IlNwZWNpYWwgZmVhdHVyZXMiLCJ2YWx1ZSI6IldlbGRlZCBtZWFzdXJpbmcgc3lzdGVtIHdpdGhvdXQgc2VhbCwgcGFydHMgaW4gY29udGFjdCB3aXRoIHRoZSBtZWRpdW0gbWFkZSBmcm9tIHN0YWlubGVzcyBzdGVlbCwgcHJlc3N1cmUgZ2F1Z2UgZnVuY3Rpb24gZXZlbiBpZiB0aGUgdm9sdGFnZSBzdXBwbHkgZmFpbHMiLCJzb3J0Tm8iOjN9LHsibmFtZSI6IlByb3RlY3Rpb24gdHlwZSIsInZhbHVlIjoiSVA1NCIsInNvcnRObyI6NH0seyJuYW1lIjoiRGV2aWF0aW9uIGZyb20gY2hhcmFjdGVyaXN0aWMgbGluZSIsInZhbHVlIjoi4omkIDAuNcKgJSIsInNvcnRObyI6NX0seyJuYW1lIjoiU2Vuc29yIiwidmFsdWUiOiJTaWxpY29uIHNlbnNvciB3aXRoIHN0YWlubGVzcyBzdGVlbCBzZXBhcmF0aW5nIG1lbWJyYW5lIiwic29ydE5vIjo2fSx7Im5hbWUiOiJQcmVzc3VyZSB0cmFuc2ZlciBtZWRpdW0iLCJ2YWx1ZSI6IlN5bnRoZXRpYyBvaWwiLCJzb3J0Tm8iOjd9LHsibmFtZSI6Ik91dHB1dCBzaWduYWwiLCJ2YWx1ZSI6IjAgdG8gMTDCoFYgLyAwKDQpIHRvIDIwwqBtQSAodGhyZWUtd2lyZSksIDQgdG8gMjDCoG1BICh0d28td2lyZSkiLCJzb3J0Tm8iOjh9LHsibmFtZSI6IlByb2Nlc3MgY29ubmVjdGlvbiIsInZhbHVlIjoiU3RhaW5sZXNzIHN0ZWVswqAzMTYiLCJzb3J0Tm8iOjl9XSwiaGlnaGxpZ2h0cyI6W3siaWNvblRleHQiOiJpY29uLXN1Y2Nlc3MiLCJkZXNjcmlwdGlvbiI6IkZhaWwtc2FmZSBwcmVzc3VyZSBnYXVnZSBmdW5jdGlvbiIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24tZGlhbW9uZCIsImRlc2NyaXB0aW9uIjoiUGFydHMgaW4gY29udGFjdCB3aXRoIG1lZGl1bSBtYWRlIG9mIHN0YWlubGVzcyBzdGVlbCIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24tc2hpZWxkIiwiZGVzY3JpcHRpb24iOiJXZWxkZWQgbWVhc3VyaW5nIHN5c3RlbSB3aXRob3V0IHNlYWwiLCJ0eXBlIjoiSUNPTiJ9XSwiZGlmZmVyZW50aWF0b3JzIjpbeyJ0ZXh0IjoiTWVhc3VyaW5nIHJhbmdlOiAtMSB0byArNDAwwqBiYXIiLCJzb3J0Tm8iOjB9LHsidGV4dCI6IlByb3RlY3Rpb24gdHlwZSBJUDU0Iiwic29ydE5vIjoxfSx7InRleHQiOiJEZXZpYXRpb24gZnJvbSBjaGFyYWN0ZXJpc3RpYyBsaW5lIOKJpMKgMC41wqAlIiwic29ydE5vIjoyfV19
title
Icon
icon-success
Description
Fail-safe pressure gauge function
Icon
icon-diamond
Description
Parts in contact with medium made of stainless steel
Icon
icon-shield
Description
Welded measuring system without seal
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=6987
Temperature
-20 to +60 °C
Measuring range
-1 to +400 bar
Areas of application
Chemicals and process engineering
Special features
Welded measuring system without seal, parts in contact with the medium made from stainless steel, pressure gauge function even if the voltage supply fails
Protection type
IP54
Deviation from characteristic line
≤ 0.5 %
Sensor
Silicon sensor with stainless steel separating membrane
Pressure transfer medium
Synthetic oil
Output signal
0 to 10 V / 0(4) to 20 mA (three-wire), 4 to 20 mA (two-wire)
Process connection
Stainless steel 316
