Overview
title
Produkt Details
SKU
406012
Name

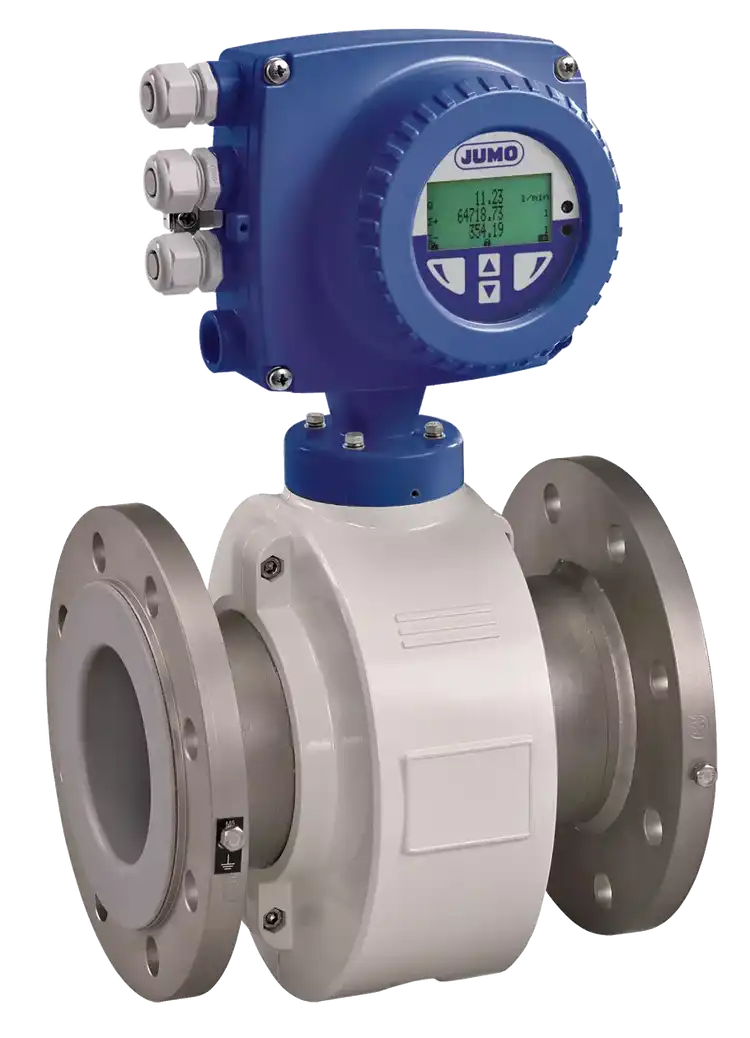

JUMO flowTRANS MAG S01
Description
The device is used in the process industry which includes branches such as chemical, energy, water/wastewater, oil and gas, pulp and paper, metal industry, and mechanical engineering. It has a large number of nominal widths, measuring pipe linings, materials, and process connections.
Short Description
Electromagnetic flowmeter
Price
€0.00
Availability
In Stock
Images
State
ARCHIVE
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9MjY0Mzk2IiwiYmVuZWZpdHMiOltdLCJiZW5lZml0c0ludHJvZHVjdGlvbiI6IiIsInRlY2huaWNhbERhdGEiOlt7Im5hbWUiOiJMaW5pbmcgbWF0ZXJpYWxzIiwidmFsdWUiOiJQVEZFOyBoYXJkIHJ1YmJlcjsgc29mdCBydWJiZXI7IFBGQTsgRVRGRTsgY2VyYW1pYyBjYXJiaWRlIChtb3JlIHVwb24gcmVxdWVzdCkiLCJzb3J0Tm8iOjB9LHsibmFtZSI6IkVsZWN0cm9kZSBtYXRlcmlhbCIsInZhbHVlIjoiU3RhaW5sZXNzIHN0ZWVsOiAxLjQ1MzksIDEuNDU3MTsgSEFTVEVMTE9Zwq4gQi0zICgyLjQ2MDApLCBIQVNURUxMT1nCriBDLTQgKDIuNDYxMCk7IHRpdGFuaXVtOyB0YW50YWx1bTsgcGxhdGludW0taXJpZGl1bTsgZG91YmxlIGxheWVyOyB3b2xmcmFtIGNhcmJpZGUiLCJzb3J0Tm8iOjF9LHsibmFtZSI6Ik5vbWluYWwgcHJlc3N1cmUiLCJ2YWx1ZSI6IlBOIDYgdG8gUE4gMTAwIiwic29ydE5vIjoyfSx7Im5hbWUiOiJNZWRpdW0gdGVtcGVyYXR1cmUiLCJ2YWx1ZSI6IjE4MCDCsEMiLCJzb3J0Tm8iOjN9LHsibmFtZSI6Ik5vbWluYWwgcGlwZSB3aWR0aCIsInZhbHVlIjoiRE4gMyB0byBETiAyMDAwIiwic29ydE5vIjo0fSx7Im5hbWUiOiJJbnB1dHMvb3V0cHV0cyIsInZhbHVlIjoiNCB0byAyMCBtQSAoYWN0aXZlL3Bhc3NpdmUpIEhBUlTCriBvciBQUk9GSUJVUyBQQTsgaW1wdWxzZSBmcmVxdWVuY3kgb3V0cHV0OyBzd2l0Y2hpbmcgb3V0cHV0OyBkaWdpdGFsIGlucHV0Iiwic29ydE5vIjo1fSx7Im5hbWUiOiJNZWFzdXJpbmcgYWNjdXJhY3kiLCJ2YWx1ZSI6IjAuM8KgJSAob3B0aW9uYWw6IDAuMsKgJSkgb2YgdGhlIG1lYXN1cmVkIHZhbHVlIiwic29ydE5vIjo2fSx7Im5hbWUiOiJQcm9jZXNzIGNvbm5lY3Rpb24iLCJ2YWx1ZSI6IkZsYW5nZSBhY2NvcmRpbmcgdG8gRElOLCBBU01FLCBKSVMiLCJzb3J0Tm8iOjd9LHsibmFtZSI6IlByb2Nlc3MgY29ubmVjdGlvbiBtYXRlcmlhbCIsInZhbHVlIjoiU3RlZWwsIHN0YWlubGVzcyBzdGVlbCIsInNvcnRObyI6OH0seyJuYW1lIjoiUHJvdGVjdGlvbiByYXRpbmdzIiwidmFsdWUiOiJJUDY3OyBJUDY4Iiwic29ydE5vIjo5fSx7Im5hbWUiOiJWb2x0YWdlIHN1cHBseSIsInZhbHVlIjoiQUMgMTAwIHRvIDIzMMKgVjsgQUMvREMgMjTCoFYiLCJzb3J0Tm8iOjEwfV0sImhpZ2hsaWdodHMiOlt7Imljb25UZXh0IjoiaWNvbi1jaGVjay1hbGwtYWx0IiwiZGVzY3JpcHRpb24iOiJDb21wYWN0IGFzIHdlbGwgYXMgcmVtb3RlIG1vdW50IGRlc2lnbiIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24tbW9uaXRvciIsImRlc2NyaXB0aW9uIjoiRGlhZ25vc3RpY3MgZnVuY3Rpb25zIiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi13cmVuY2giLCJkZXNjcmlwdGlvbiI6IkluZGl2aWR1YWwgYWRhcHRhdGlvbnMiLCJ0eXBlIjoiSUNPTiJ9XSwiZGlmZmVyZW50aWF0b3JzIjpbeyJ0ZXh0IjoiTm9taW5hbCB3aWR0aHMgRE4gMyB0byBETiAyMDAwIiwic29ydE5vIjowfSx7InRleHQiOiJOb21pbmFsIHByZXNzdXJlIFBOwqA2IHRvIFBOIDEwMCIsInNvcnRObyI6MX0seyJ0ZXh0IjoiTWVkaXVtIHRlbXAuIDE4MCDCsEMiLCJzb3J0Tm8iOjJ9XX0=
title
Icon
icon-check-all-alt
Description
Compact as well as remote mount design
Icon
icon-monitor
Description
Diagnostics functions
Icon
icon-wrench
Description
Individual adaptations
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=264396
Lining materials
PTFE; hard rubber; soft rubber; PFA; ETFE; ceramic carbide (more upon request)
Electrode material
Stainless steel: 1.4539, 1.4571; HASTELLOY® B-3 (2.4600), HASTELLOY® C-4 (2.4610); titanium; tantalum; platinum-iridium; double layer; wolfram carbide
Nominal pressure
PN 6 to PN 100
Medium temperature
180 °C
Nominal pipe width
DN 3 to DN 2000
Inputs/outputs
4 to 20 mA (active/passive) HART® or PROFIBUS PA; impulse frequency output; switching output; digital input
Measuring accuracy
0.3 % (optional: 0.2 %) of the measured value
Process connection
Flange according to DIN, ASME, JIS
Process connection material
Steel, stainless steel
Protection ratings
IP67; IP68
Voltage supply
AC 100 to 230 V; AC/DC 24 V
