Produkt Details
SKU
603051
Name

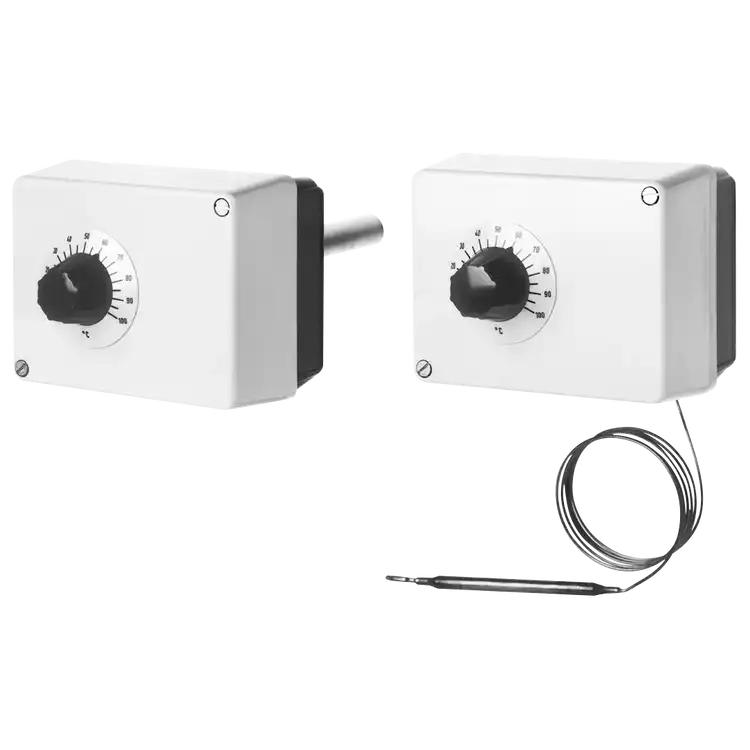

Surface-mounted thermostats
Description
The devices of AMTHF series are available with 2, 3, or 4 switching steps as temperature controllers (TR) and temperature monitors (TW). The sequence contact gap of the individual switching steps in Kelvin is adjusted in a fixed manner according to customer requirements per default.
Short Description
AMTHF series
Price
€0.00
Availability
In Stock
Images
State
LIVE
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9NDgwMSIsImJlbmVmaXRzIjpbXSwiYmVuZWZpdHNJbnRyb2R1Y3Rpb24iOiIiLCJ0ZWNobmljYWxEYXRhIjpbeyJuYW1lIjoiVmVyc2lvbnMiLCJ2YWx1ZSI6IlRlbXBlcmF0dXJlIG1vbml0b3IgKFRXKSwgdGVtcGVyYXR1cmUgY29udHJvbGxlciIsInNvcnRObyI6MH0seyJuYW1lIjoiU3dpdGNoaW5nIGVsZW1lbnQiLCJ2YWx1ZSI6IldpdGggMiwgMywgb3IgNCBzaW5nbGUtcG9sZSBzbmFwLWFjdGlvbiBzd2l0Y2hlcyIsInNvcnRObyI6MX0seyJuYW1lIjoiU3dpdGNoaW5nIGNhcGFjaXR5IiwidmFsdWUiOiI2wqBBLCAyMzDCoFYiLCJzb3J0Tm8iOjJ9LHsibmFtZSI6Ik1heGltdW0gY29udHJvbCByYW5nZS9saW1pdCB2YWx1ZSIsInZhbHVlIjoiMzAwwqDCsEMiLCJzb3J0Tm8iOjN9LHsibmFtZSI6IlByb3RlY3Rpb24gdHlwZSIsInZhbHVlIjoiSVA1NCIsInNvcnRObyI6NH0seyJuYW1lIjoiQXBwcm92YWxzIiwidmFsdWUiOiItIiwic29ydE5vIjo1fSx7Im5hbWUiOiJBcmVhcyBvZiBhcHBsaWNhdGlvbiIsInZhbHVlIjoiQ29udHJvbCBhbmQgbW9uaXRvcmluZyBvZiB0aGVybWFsIHByb2Nlc3NlcyBpbiBhcHBhcmF0dXMgZW5naW5lZXJpbmcsIGluIGZ1cm5hY2UgY29uc3RydWN0aW9uLCBpbiBoZWF0aW5nIGFuZCBhaXItY29uZGl0aW9uaW5nIHRlY2hub2xvZ3ksIGluIGxhYm9yYXRvcnkgYW5kIGNvbmRpdGlvbmluZyBjYWJpbmV0cywgYW5kIGluIHJhaWx3YXkgdGVjaG5vbG9neSIsInNvcnRObyI6Nn0seyJuYW1lIjoiRmVhdHVyZXMiLCJ2YWx1ZSI6IkRvdWJsZSB0aGVybW9zdGF0Iiwic29ydE5vIjo3fV0sImhpZ2hsaWdodHMiOlt7Imljb25UZXh0IjoiaWNvbi1jaGVjay1kYXJrIiwiZGVzY3JpcHRpb24iOiJGb3IgdW5pdmVyc2FsIHVzZSIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24tc3Rhci1vdXRsaW5lIiwiZGVzY3JpcHRpb24iOiJJbXBlcnZpb3VzIHRvIGVudmlyb25tZW50YWwgaW5mbHVlbmNlcyIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24tYmF0dGVyeS1mdWxsIiwiZGVzY3JpcHRpb24iOiJXaXRob3V0IGF1eGlsaWFyeSBlbmVyZ3kiLCJ0eXBlIjoiSUNPTiJ9XSwiZGlmZmVyZW50aWF0b3JzIjpbeyJ0ZXh0IjoiTWF0ZXJpYWw6IHN0YWlubGVzcyBzdGVlbC9jb3BwZXIiLCJzb3J0Tm8iOjB9LHsidGV4dCI6Ik1heC4gY2FwaWxsYXJ5OiA1MDAwwqBtbSIsInNvcnRObyI6MX0seyJ0ZXh0IjoiTWF4LiBjb250cm9sIHJhbmdlOiA1MCB0byAzMDDCoMKwQyIsInNvcnRObyI6Mn1dfQ==
title
Icon
icon-check-dark
Description
For universal use
Icon
icon-star-outline
Description
Impervious to environmental influences
Icon
icon-battery-full
Description
Without auxiliary energy
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=4801
Versions
Temperature monitor (TW), temperature controller
Switching element
With 2, 3, or 4 single-pole snap-action switches
Switching capacity
6 A, 230 V
Maximum control range/limit value
300 °C
Protection type
IP54
Approvals
-
Areas of application
Control and monitoring of thermal processes in apparatus engineering, in furnace construction, in heating and air-conditioning technology, in laboratory and conditioning cabinets, and in railway technology
Features
Double thermostat
