Produkt Details
SKU
902044
Name

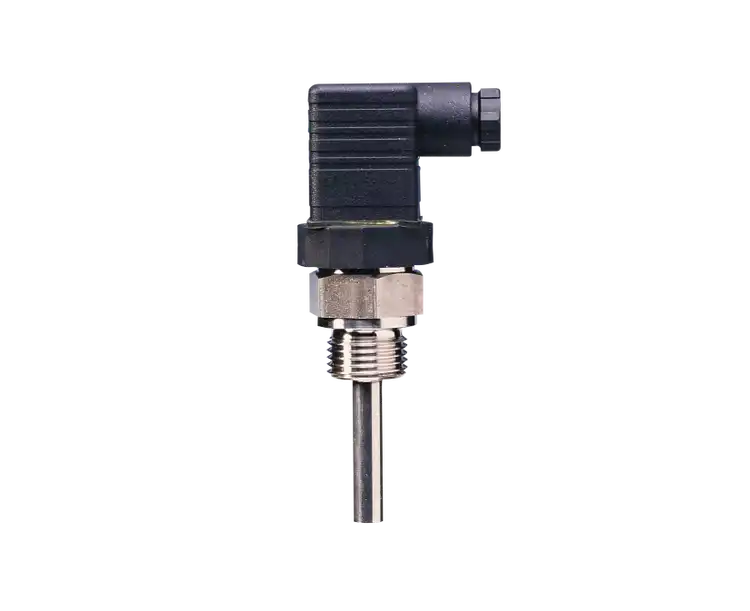

Screw-in RTD temperature probe
Description
Vibration-resistant screw-in RTD temperature probes allow temperatures to be measured under pressure in engines and compressors as well as in plant engineering and shipbuilding.
Short Description
With plug connector according to DIN EN 175301
Availability
In Stock
Images
State
LIVE
Variants
Diameter prot. tube (mm)
Insertion length (mm)
Basic type
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9NzEyMCIsImJlbmVmaXRzIjpbXSwiYmVuZWZpdHNJbnRyb2R1Y3Rpb24iOiIiLCJ0ZWNobmljYWxEYXRhIjpbeyJuYW1lIjoiQ29ubmVjdGlvbiIsInZhbHVlIjoiQ29ubmVjdG9yIiwic29ydE5vIjowfSx7Im5hbWUiOiJBcmVhcyBvZiBhcHBsaWNhdGlvbiIsInZhbHVlIjoiU2hpcGJ1aWxkaW5nLCBlbmdpbmUgbWFudWZhY3R1cmluZywgaW5kdXN0cmlhbCBib2lsZXIgcGxhbnRzLCBwdW1wIGVuZ2luZWVyaW5nIiwic29ydE5vIjoxfSx7Im5hbWUiOiJPcGVyYXRpbmcgdGVtcGVyYXR1cmUiLCJ2YWx1ZSI6Ii01MCB0byArMjYwwqDCsEMiLCJzb3J0Tm8iOjJ9LHsibmFtZSI6IkFwcHJvdmFscyIsInZhbHVlIjoiR0wiLCJzb3J0Tm8iOjN9LHsibmFtZSI6IlByb2Nlc3MgY29ubmVjdGlvbiIsInZhbHVlIjoiVGhyZWFkIiwic29ydE5vIjo0fSx7Im5hbWUiOiJQcm90ZWN0aW9uIHR5cGUiLCJ2YWx1ZSI6IklQNjUiLCJzb3J0Tm8iOjV9LHsibmFtZSI6IlByb3RlY3Rpb24gZml0dGluZyIsInZhbHVlIjoiU3RhaW5sZXNzIHN0ZWVsIDEuNDU3MSIsInNvcnRObyI6Nn0seyJuYW1lIjoiU3BlY2lhbCBmZWF0dXJlcyIsInZhbHVlIjoiUmVwbGFjZWFibGUgbWVhc3VyaW5nIGluc2VydCBmb3IgdmFyaWFudHMgd2l0aG91dCB0cmFuc21pdHRlciIsInNvcnRObyI6N30seyJuYW1lIjoiT3B0aW9uIiwidmFsdWUiOiJIZWFkIHRyYW5zbWl0dGVyIiwic29ydE5vIjo4fSx7Im5hbWUiOiJNZWFzdXJpbmcgY2lyY3VpdHMiLCJ2YWx1ZSI6IjEiLCJzb3J0Tm8iOjl9LHsibmFtZSI6IkZlYXR1cmVzIiwidmFsdWUiOiJIaWdobHkgc2hha2Vwcm9vZiwgcGx1ZyBjb25uZWN0b3IgYWNjb3JkaW5nIHRvIERJTiBFTiAxNzUzMDEtODAzIiwic29ydE5vIjoxMH0seyJuYW1lIjoiU2Vuc29yIiwidmFsdWUiOiJQdDEwMCIsInNvcnRObyI6MTF9XSwiaGlnaGxpZ2h0cyI6W3siaWNvblRleHQiOiJpY29uLWxvY2siLCJkZXNjcmlwdGlvbiI6IlRoZSBwbHVnIGNvbm5lY3Rpb24gaXMgbG9ja2VkIHRvIGVuc3VyZSBjb250YWN0IiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi1jYXJ0IiwiZGVzY3JpcHRpb24iOiJUcmFuc21pdHRlciBhdmFpbGFibGUiLCJ0eXBlIjoiSUNPTiJ9LHsiaWNvblRleHQiOiJpY29uLWZpbGUtY2hlY2tlZCIsImRlc2NyaXB0aW9uIjoiR0wgYXBwcm92YWwgZm9yIGJhc2ljIHR5cGUiLCJ0eXBlIjoiSUNPTiJ9XSwiZGlmZmVyZW50aWF0b3JzIjpbeyJ0ZXh0IjoiUHQxMDAgdGVtcGVyYXR1cmUgc2Vuc29yIiwic29ydE5vIjowfSx7InRleHQiOiJUZW1wLjogLTUwIHRvICsyNjDCoMKwQyIsInNvcnRObyI6MX0seyJ0ZXh0IjoiVHdvLXdpcmUgb3IgZm91ci13aXJlIGNpcmN1aXQiLCJzb3J0Tm8iOjJ9XX0=
title
Icon
icon-lock
Description
The plug connection is locked to ensure contact
Icon
icon-cart
Description
Transmitter available
Icon
icon-file-checked
Description
GL approval for basic type
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=7120
Connection
Connector
Areas of application
Shipbuilding, engine manufacturing, industrial boiler plants, pump engineering
Operating temperature
-50 to +260 °C
Approvals
GL
Process connection
Thread
Protection type
IP65
Protection fitting
Stainless steel 1.4571
Special features
Replaceable measuring insert for variants without transmitter
Option
Head transmitter
Measuring circuits
1
Features
Highly shakeproof, plug connector according to DIN EN 175301-803
Sensor
Pt100
