Produkt Details
SKU
409778
Name

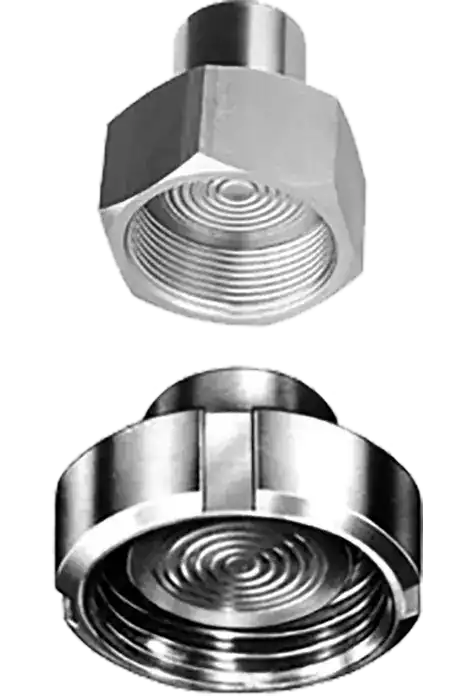

Diaphragm seal
Description
Diaphragm seals protect the pressure measuring device from contaminated, hot, highly viscous, stagnant, crystallizing, and especially corrosive media.
Short Description
With ISS/SMS/RJT socket and union nut
Price
€0.00
Availability
In Stock
Images
State
LIVE
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9MzA3NiIsImJlbmVmaXRzIjpbXSwiYmVuZWZpdHNJbnRyb2R1Y3Rpb24iOiIiLCJ0ZWNobmljYWxEYXRhIjpbeyJuYW1lIjoiRmlsbGluZyBtZWRpdW0iLCJ2YWx1ZSI6IlNpbGljb25lIG9pbCwgaGFsb2dlbmF0ZWQgb2lsLCB2ZWdldGFibGUgb2lsIiwic29ydE5vIjowfSx7Im5hbWUiOiJDYXBpbGxhcnkgdHViZSIsInZhbHVlIjoiMcKgbSwgMS41wqBtLCAywqBtLCAzwqBtLCA1wqBtIiwidG9vbHRpcCI6IkFsc28gYXZhaWxhYmxlIHdpdGhvdXQgY2FwaWxsYXJ5IHR1YmUgb3Igd2l0aCBjb29saW5nIGVsZW1lbnQiLCJzb3J0Tm8iOjF9LHsibmFtZSI6IkNvbm5lY3Rpb24gdHlwZSIsInZhbHVlIjoiSVNTIHNvY2tldCBvciB3aXRoIFNNUyBzb2NrZXQgb3Igd2l0aCBSSlQgc29ja2V0IGFuZCB1bmlvbiBudXQiLCJzb3J0Tm8iOjJ9LHsibmFtZSI6Ik1hdGVyaWFsIiwidmFsdWUiOiJTdGFpbmxlc3Mgc3RlZWwiLCJ0b29sdGlwIjoiU3BlY2lhbCBtYXRlcmlhbHMgdXBvbiByZXF1ZXN0Iiwic29ydE5vIjozfSx7Im5hbWUiOiJQcm9jZXNzIGNvbm5lY3Rpb25zIiwidmFsdWUiOiJJU1MgRE7CoDFcIiwgSVNTIEROwqAxwqAxLzJcIiwgSVNTIEROwqAyXCIsIFNNUyBETsKgMVwiLCBTTVMgRE7CoDHCoDEvMlwiLCBTTVMgRE7CoDJcIiwgUkpUIEROwqAxXCIsIFJKVCBETsKgMcKgMS8yXCIsIFJKVCBETsKgMlwiIiwic29ydE5vIjo0fV0sImhpZ2hsaWdodHMiOlt7Imljb25UZXh0IjoiaWNvbi1mbG93LXRyZWUiLCJkZXNjcmlwdGlvbiI6IlZhcmlvdXMgcHJvY2VzcyBjb25uZWN0aW9ucyIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24tZmxvdy1saW5lIiwiZGVzY3JpcHRpb24iOiJPcHRpb25hbGx5IHdpdGggY2FwaWxsYXJ5IHR1YmUiLCJ0eXBlIjoiSUNPTiJ9LHsiaWNvblRleHQiOiJpY29uLW1lcmdlIiwiZGVzY3JpcHRpb24iOiJJU1MsIFNNUywgUkpUIHNvY2tldCIsInR5cGUiOiJJQ09OIn1dLCJkaWZmZXJlbnRpYXRvcnMiOlt7InRleHQiOiJQcm9jZXNzIGNvbm5lY3Rpb246IElTUywgU01TLCBSSlQgc29ja2V0Iiwic29ydE5vIjowfSx7InRleHQiOiJOb21pbmFsIHdpZHRoczogRE7CoDFcIiwgRE7CoDEuNVwiLCBETsKgMlwiIiwic29ydE5vIjoxfSx7InRleHQiOiJOb21pbmFsIHByZXNzdXJlOiBtYXguIFBOwqA0MCIsInNvcnRObyI6Mn1dfQ==
title
Icon
icon-flow-tree
Description
Various process connections
Icon
icon-flow-line
Description
Optionally with capillary tube
Icon
icon-merge
Description
ISS, SMS, RJT socket
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=3076
Filling medium
Silicone oil, halogenated oil, vegetable oil
Capillary tube
1 m, 1.5 m, 2 m, 3 m, 5 m
Connection type
ISS socket or with SMS socket or with RJT socket and union nut
Material
Stainless steel
Process connections
ISS DN 1", ISS DN 1 1/2", ISS DN 2", SMS DN 1", SMS DN 1 1/2", SMS DN 2", RJT DN 1", RJT DN 1 1/2", RJT DN 2"
