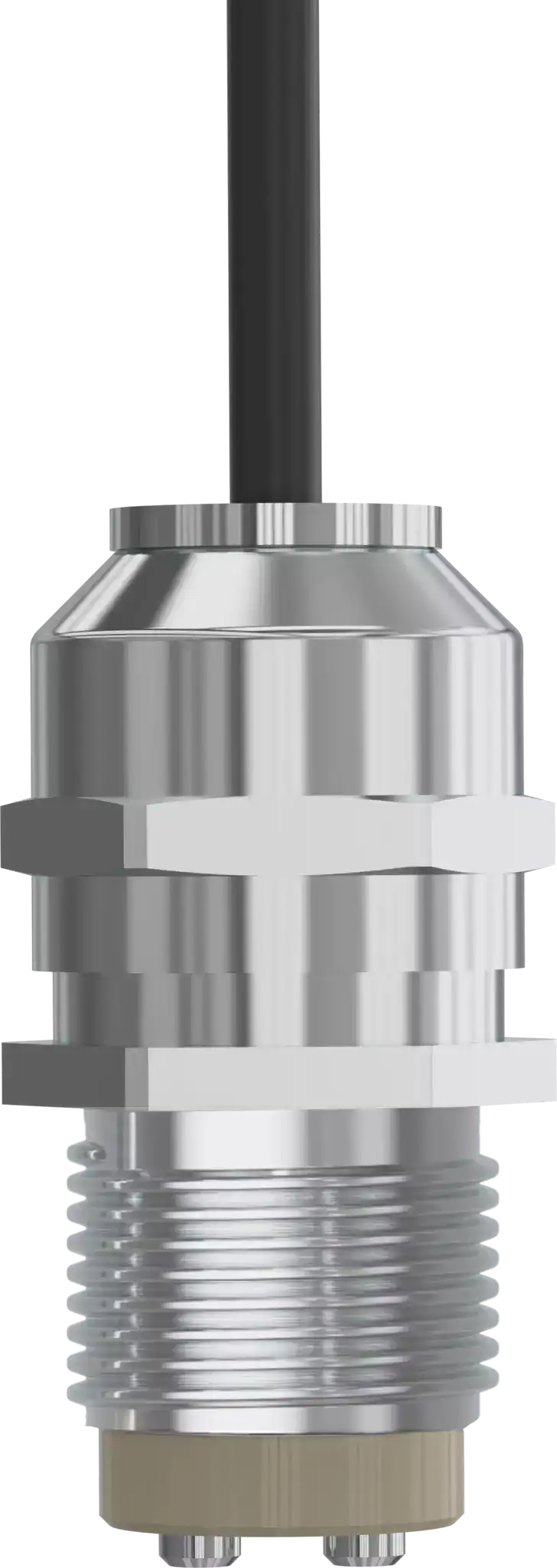

JUMO tecLine CR S01
Description
The compact design type of the conductive two-electrode conductivity sensor enables space-saving installation. Due to its wide measuring range and resistance to cold, heat, and pressure, it is ideally suited for many applications in water treatment and monitoring.
Short Description
Conductive two-electrode conductivity sensor
Price
€317.72
Availability
In Stock
Images
State
LIVE
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9ODE5NDMxIiwiYmVuZWZpdHMiOltdLCJiZW5lZml0c0ludHJvZHVjdGlvbiI6IiIsInRlY2huaWNhbERhdGEiOlt7Im5hbWUiOiJNZWFzdXJpbmcgcmFuZ2UgYW5kIGNlbGwgY29uc3RhbnQiLCJ2YWx1ZSI6IjAuMSB0byAxMDAwwqDCtVMvY20gKEs9MC4xKSBvciAxIHRvIDUwMDDCoMK1Uy9jbSAoSz0xLjApIiwic29ydE5vIjowfSx7Im5hbWUiOiJPcGVyYXRpbmcgdGVtcGVyYXR1cmUiLCJ2YWx1ZSI6Ii00MCB0byArMTAwIMKwQyIsInNvcnRObyI6MX0seyJuYW1lIjoiTWF4aW11bSBwcmVzc3VyZSIsInZhbHVlIjoiNiBiYXIgYXQgMjUgwrBDIiwic29ydE5vIjoyfSx7Im5hbWUiOiJJbnRlZ3JhdGVkIHRlbXBlcmF0dXJlIHByb2JlIiwidmFsdWUiOiJQdDEwMCBvciBQdDEwMDAsIGNsYXNzIEIiLCJzb3J0Tm8iOjN9LHsibmFtZSI6IkVsZWN0cmljYWwgY29ubmVjdGlvbiIsInZhbHVlIjoiRml4ZWQgY2FibGUgNcKgbSAoZGlnaUxpbmUgY2FwYWJsZSkiLCJzb3J0Tm8iOjR9LHsibmFtZSI6IkNhYmxlIGZpdHRpbmciLCJ2YWx1ZSI6IkJyYXNzIG5pY2tlbC1wbGF0ZWQsIHN0YWlubGVzcyBzdGVlbCAxLjQ0MDQgb3IgUEE2Iiwic29ydE5vIjo1fSx7Im5hbWUiOiJJbnNlcnRpb24gbGVuZ3RoIChkZXBlbmRpbmcgb24gdHlwZSkiLCJ2YWx1ZSI6IjIyLjUgdG8gMzQuNSBtbSIsInNvcnRObyI6Nn0seyJuYW1lIjoiTWF0ZXJpYWxzIGluIGNvbnRhY3Qgd2l0aCB0aGUgbWVkaXVtIiwidmFsdWUiOiJJbnN1bGF0b3I6IFBFRUs7IGVsZWN0cm9kZTogc3RhaW5sZXNzIHN0ZWVsIDEuNDQwNCIsInNvcnRObyI6N30seyJuYW1lIjoiUHJvY2VzcyBjb25uZWN0aW9uIiwidmFsdWUiOiJUaHJlYWQgwr1cIiBOUFQgb3IgTTIwIMOXIDEuNSBtbSIsInNvcnRObyI6OH0seyJuYW1lIjoiQXBwbGljYXRpb24gYXJlYXMiLCJ2YWx1ZSI6IlJlZnJpZ2VyYXRpb24sIGFpci1jb25kaXRpb25pbmcgYW5kIGNvb2xpbmcgcGxhbnRzOyBsZWFrYWdlIGRldGVjdGlvbjsgcmV2ZXJzZSBvc21vc2lzIHBsYW50czsgZHJpbmtpbmcgYW5kIHN3aW1taW5nIHBvb2wgd2F0ZXI7IGxpZ2h0bHkgY29udGFtaW5hdGVkIGluZHVzdHJpYWwgcmluc2luZyBhbmQgcHJvY2VzcyB3YXRlcjsgZ2VuZXJhbCB3YXRlciB0ZWNobm9sb2d5Iiwic29ydE5vIjo5fSx7Im5hbWUiOiJTcGVjaWFsIGZlYXR1cmVzIiwidmFsdWUiOiJVbmNvbXBsaWNhdGVkIGFuZCBzcGFjZS1zYXZpbmcgaW5zdGFsbGF0aW9uIGR1ZSB0byBjb21wYWN0IGRlc2lnbiB0eXBlLCBpZGVhbCBmb3IgcGlwZXMgd2l0aCBzbWFsbCBub21pbmFsIHdpZHRoczsgcmVzaXN0YW50IHRvIGNvbGQsIGhlYXQsIGFuZCBwcmVzc3VyZTsgY29ycm9zaW9uLXJlc2lzdGFudCBtYXRlcmlhbHMsIHJlc2lzdGFudCB0byBhY2lkLCBiYXNpYywgYW5kIGNobG9yaW5hdGVkIG1lZGlhOyBwcmVjaXNlIG1lYXN1cmVtZW50IHdpdGhpbiBhIHdpZGUgbWVhc3VyaW5nIHJhbmdlOyBlYXN5IHRvIGNsZWFuIiwic29ydE5vIjoxMH1dLCJoaWdobGlnaHRzIjpbeyJpY29uVGV4dCI6Imljb24tZGlhbW9uZCIsImRlc2NyaXB0aW9uIjoiUmVzaXN0YW50IHRvIGNvbGQsIGhlYXQsIGFuZCBwcmVzc3VyZSIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24tbWF4aW1pemUtYWx0IiwiZGVzY3JpcHRpb24iOiJQcmVjaXNlIG1lYXN1cmVtZW50IGluIHdpZGUgbWVhc3VyaW5nIHJhbmdlcyIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24tc2hpZWxkIiwiZGVzY3JpcHRpb24iOiJSZXNpc3RhbnQgdG8gYWNpZCwgYmFzZSwgY2hsb3JpbmUiLCJ0eXBlIjoiSUNPTiJ9XSwiZGlmZmVyZW50aWF0b3JzIjpbeyJ0ZXh0IjoiTWVhc3VyaW5nIHJhbmdlOiAwLjEgdG8gNTAwMMKgwrVTL2NtIiwic29ydE5vIjowfSx7InRleHQiOiJQcm9jZXNzIHByZXNzdXJlIHVwIHRvIDbCoGJhciIsInNvcnRObyI6MX0seyJ0ZXh0IjoiQ2VsbCBjb25zdGFudDogSyA9IDAuMSBvciAxLjAiLCJzb3J0Tm8iOjJ9XX0=
title
Icon
icon-diamond
Description
Resistant to cold, heat, and pressure
Icon
icon-maximize-alt
Description
Precise measurement in wide measuring ranges
Icon
icon-shield
Description
Resistant to acid, base, chlorine
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=819431
Measuring range and cell constant
0.1 to 1000 µS/cm (K=0.1) or 1 to 5000 µS/cm (K=1.0)
Operating temperature
-40 to +100 °C
Maximum pressure
6 bar at 25 °C
Integrated temperature probe
Pt100 or Pt1000, class B
Electrical connection
Fixed cable 5 m (digiLine capable)
Cable fitting
Brass nickel-plated, stainless steel 1.4404 or PA6
Insertion length (depending on type)
22.5 to 34.5 mm
Materials in contact with the medium
Insulator: PEEK; electrode: stainless steel 1.4404
Process connection
Thread ½" NPT or M20 × 1.5 mm
Application areas
Refrigeration, air-conditioning and cooling plants; leakage detection; reverse osmosis plants; drinking and swimming pool water; lightly contaminated industrial rinsing and process water; general water technology
Special features
Uncomplicated and space-saving installation due to compact design type, ideal for pipes with small nominal widths; resistant to cold, heat, and pressure; corrosion-resistant materials, resistant to acid, basic, and chlorinated media; precise measurement within a wide measuring range; easy to clean
