Produkt Details
SKU
202931
Name

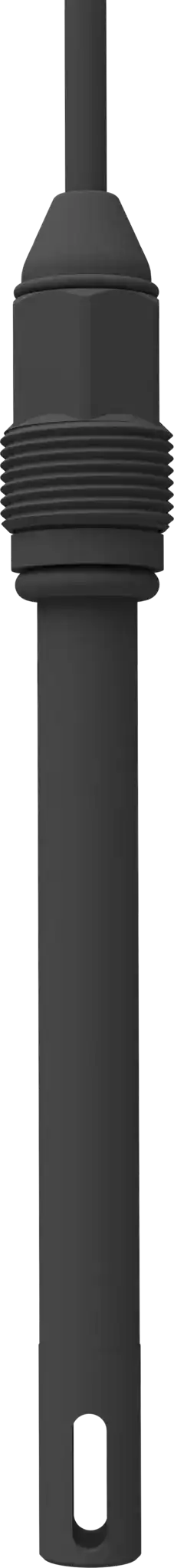

JUMO BlackLine CR 4P
Description
The conductivity sensor has 4 electrodes made of robust special graphite and is characterized by a wide measuring range. It is therefore predestined for determining the conductivity of high salt concentrations. This is why it can be used in salt and sea water applications, among others.
Short Description
Conductive 4 Electrode Conductivity Sensor
Price
€0.00
Availability
In Stock
Images
State
LIVE
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9ODQ4Mjc1IiwiYmVuZWZpdHMiOltdLCJiZW5lZml0c0ludHJvZHVjdGlvbiI6IiIsInRlY2huaWNhbERhdGEiOlt7Im5hbWUiOiJNZWFzdXJpbmcgY2VsbCIsInZhbHVlIjoiNCBwb2xlIiwic29ydE5vIjowfSx7Im5hbWUiOiJNZWFzdXJpbmcgcmFuZ2UiLCJ2YWx1ZSI6IjHCoM68Uy9jbSB0byAzMDDCoG1TL2NtIiwic29ydE5vIjoxfSx7Im5hbWUiOiJDZWxsIGNvbnN0YW50IiwidmFsdWUiOiJLID0gMC4yNSIsInNvcnRObyI6Mn0seyJuYW1lIjoiT3BlcmF0aW5nIHRlbXBlcmF0dXJlIiwidmFsdWUiOiItNSB0byArODAgwrBDIiwic29ydE5vIjozfSx7Im5hbWUiOiJNYXhpbXVtIHByZXNzdXJlIiwidmFsdWUiOiI2wqBiYXIgYXQgMjXCoMKwQyIsInNvcnRObyI6NH0seyJuYW1lIjoiVGVtcGVyYXR1cmUgbWVhc3VyZW1lbnQiLCJ2YWx1ZSI6IlB0MTAwIG9yIFB0MTAwMCwgY2xhc3MgQiIsInNvcnRObyI6NX0seyJuYW1lIjoiRWxlY3RyaWNhbCBjb25uZWN0aW9uIiwidmFsdWUiOiJGaXhlZCBjYWJsZSBvciBNMTIgY29ubmVjdG9yIChkaWdpTGluZSBjYXBhYmxlKSIsInNvcnRObyI6Nn0seyJuYW1lIjoiSW5zZXJ0aW9uIGxlbmd0aCIsInZhbHVlIjoiMTIwwqBtbSIsInNvcnRObyI6N30seyJuYW1lIjoiRGlhbWV0ZXIiLCJ2YWx1ZSI6IjEywqBtbSIsInNvcnRObyI6OH0seyJuYW1lIjoiTWF0ZXJpYWxzIGluIGNvbnRhY3Qgd2l0aCB0aGUgbWVkaXVtIiwidmFsdWUiOiJDZWxsIGhvdXNpbmc6IFBQRTsgRWxlY3Ryb2RlOiBncmFwaGl0ZSIsInNvcnRObyI6OX0seyJuYW1lIjoiUHJvY2VzcyBjb25uZWN0aW9uIiwidmFsdWUiOiJTY3JldyBoZWFkIFBnMTMuNSIsInNvcnRObyI6MTB9LHsibmFtZSI6IkFwcGxpY2F0aW9uIGFyZWFzIiwidmFsdWUiOiJTYWx0IHdhdGVyIGFuZCBzZWEgd2F0ZXIgYXBwbGljYXRpb25zOyBzbGlnaHRseSBjb250YW1pbmF0ZWQgcmluc2luZyBhbmQgcHVyaWZpY2F0aW9uIGJhdGhzOyBmZXJ0aWxpemVyIHNvbHV0aW9uczsgZHJpbmtpbmcgYW5kIHdlbGwgd2F0ZXI7IGdlbmVyYWwgd2F0ZXIgdGVjaG5vbG9neSIsInNvcnRObyI6MTF9XSwiaGlnaGxpZ2h0cyI6W3siaWNvblRleHQiOiJpY29uLW1heGltaXplLWFsdCIsImRlc2NyaXB0aW9uIjoiV2lkZSBtZWFzdXJpbmcgcmFuZ2UiLCJ0eXBlIjoiSUNPTiJ9LHsiaWNvblRleHQiOiJpY29uLXNoaWVsZCIsImRlc2NyaXB0aW9uIjoiUm9idXN0IGFuZCBkdXJhYmxlIHNlbnNvciBtYXRlcmlhbCIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24td3JhbmNoIiwiZGVzY3JpcHRpb24iOiJGaXRzIGFsbCBmaXR0aW5ncyB3aXRoIFBHIDEzLjUiLCJ0eXBlIjoiSUNPTiJ9XSwiZGlmZmVyZW50aWF0b3JzIjpbeyJ0ZXh0IjoiTWVhc3VyaW5nIHJhbmdlOiAxwqDCtVMvY20gdG8gMzAwwqBtUy9jbSIsInNvcnRObyI6MH0seyJ0ZXh0IjoiUHJvY2VzcyBwcmVzc3VyZSB1cCB0byA2IGJhciIsInNvcnRObyI6MX0seyJ0ZXh0IjoiQ2VsbCBjb25zdGFudDogSyA9IDAuMjUiLCJzb3J0Tm8iOjJ9XX0=
title
Icon
icon-maximize-alt
Description
Wide measuring range
Icon
icon-shield
Description
Robust and durable sensor material
Icon
icon-wranch
Description
Fits all fittings with PG 13.5
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=848275
Measuring cell
4 pole
Measuring range
1 μS/cm to 300 mS/cm
Cell constant
K = 0.25
Operating temperature
-5 to +80 °C
Maximum pressure
6 bar at 25 °C
Temperature measurement
Pt100 or Pt1000, class B
Electrical connection
Fixed cable or M12 connector (digiLine capable)
Insertion length
120 mm
Diameter
12 mm
Materials in contact with the medium
Cell housing: PPE; Electrode: graphite
Process connection
Screw head Pg13.5
Application areas
Salt water and sea water applications; slightly contaminated rinsing and purification baths; fertilizer solutions; drinking and well water; general water technology
