Produkt Details
SKU
705031
Name

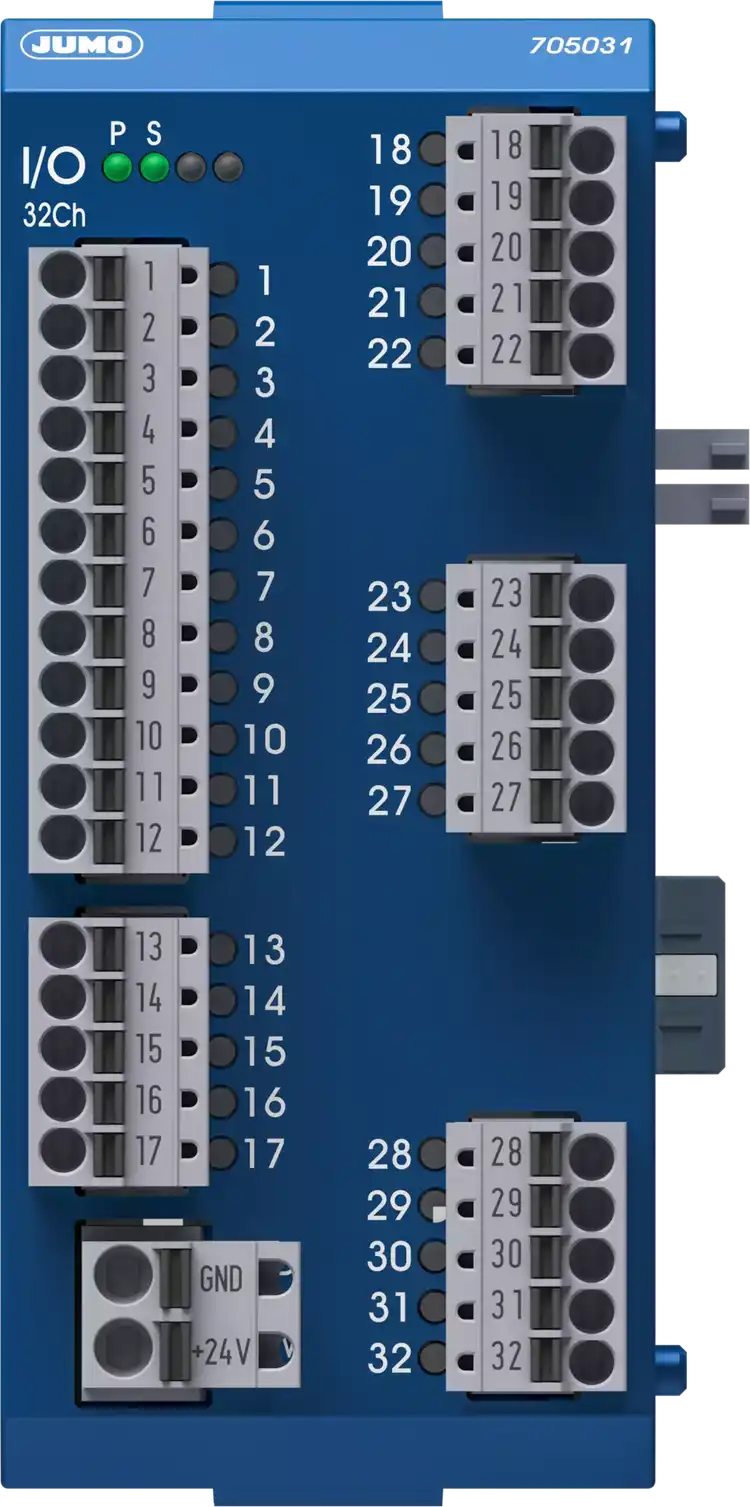

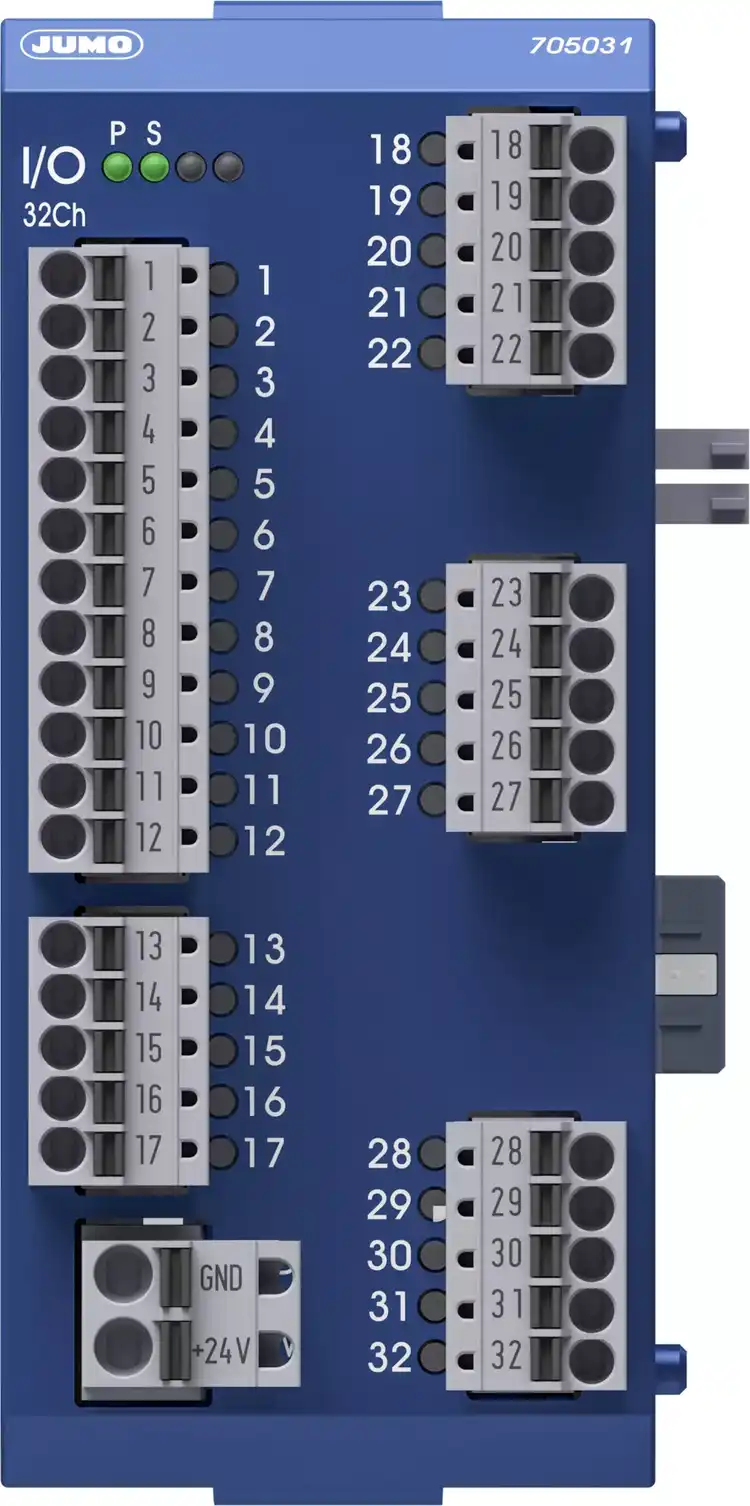

Digital input/output module 32-channel
Description
The module offers 32 channels. Of these, 17 are configured as digital outputs by default. Up to 3 option cards with 5 channels each can be used to add digital inputs and outputs. The digital input signals can be further processed in the JUMO variTRON central unit. The digital outputs forward signals that are transmitted by the system bus.
Short Description
Module for JUMO variTRON automation system
Price
€400.48
Availability
In Stock
Images
State
LIVE
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9NjkxMjA4IiwiYmVuZWZpdHMiOltdLCJiZW5lZml0c0ludHJvZHVjdGlvbiI6IiIsInRlY2huaWNhbERhdGEiOlt7Im5hbWUiOiJOdW1iZXIgb2YgY2hhbm5lbHMiLCJ2YWx1ZSI6IjMyIiwic29ydE5vIjowfSx7Im5hbWUiOiJNZWFzdXJlbWVudCBpbnB1dHMiLCJ2YWx1ZSI6InVwIHRvIDE1IGRpZ2l0YWwgaW5wdXRzIERDIDI0IFYgKG9wdGlvbmFsKSIsInRvb2x0aXAiOiJ1cCB0byAzIGV4cGFuc2lvbiBzbG90cyB3aXRoIDUgZGlnaXRhbCBpbnB1dHMgZWFjaCIsInNvcnRObyI6MX0seyJuYW1lIjoiT3V0cHV0cyIsInZhbHVlIjoiMTcgZml4ZWQgYW5kIG9wdGlvbmFsbHkgdXAgdG8gMTUgYWRkaXRpb25hbCBkaWdpdGFsIG91dHB1dHMgREMgMjQgViwgbWF4LiA1MDAgbUEiLCJ0b29sdGlwIjoidXAgdG8gMyBleHBhbnNpb24gc2xvdHMgd2l0aCA1IGRpZ2l0YWwgaW5wdXRzIGVhY2giLCJzb3J0Tm8iOjJ9LHsibmFtZSI6IlNwZWNpYWwgZmVhdHVyZXMiLCJ2YWx1ZSI6IjMgb3B0aW9uYWwgZXhwYW5zaW9uIHNsb3RzIGZvciA1IGRpZ2l0YWwgaW5wdXRzIG9yIG91dHB1dHMgZWFjaCwgc3dpdGNoaW5nIHN0YXR1c2VzIGFyZSB2aXN1YWxpemVkIHdpdGggTEVEcywgZXh0ZXJuYWwgdm9sdGFnZSBzdXBwbHkgZm9yIGRpZ2l0YWwgaW5wdXRzL291dHB1dHMgdmlhIHRlcm1pbmFsIG9uIHRoZSBmcm9udCwgYXV0b21hdGljIGNvbmZpZ3VyYXRpb24gYWZ0ZXIgcmVwbGFjZW1lbnQgb2YgdGhlIG1vZHVsZSBpbnNlcnQgKFBsdWcgYW5kIFBsYXkpLCBjb25uZWN0aW9uIG9mIGlucHV0cyBvbiB0aGUgZnJvbnQsIHJlbW92YWJsZSB0ZXJtaW5hbCBzdHJpcHMgd2l0aCBQVVNIIElOIHRlY2hub2xvZ3ksIGZhc3Qgd2lyaW5nIG9mIG9wZXJhdGluZyB2b2x0YWdlIGFuZCBzeXN0ZW0gYnVzIHByb3ZpZGVkIGJ5IHNpbXBsZSBtb2R1bGUgY29ubmVjdGlvbiBwcmluY2lwbGUiLCJzb3J0Tm8iOjN9LHsibmFtZSI6IkNvbm5lY3Rpb24iLCJ2YWx1ZSI6IlJlbW92YWJsZSB0ZXJtaW5hbCBzdHJpcHMgd2l0aCBQVVNIIElOIHRlY2hub2xvZ3kgb24gdGhlIGZyb250Iiwic29ydE5vIjo0fSx7Im5hbWUiOiJWb2x0YWdlIHN1cHBseSIsInZhbHVlIjoiQyAyNCBWICsyNS8tMjAgJSwgZXh0ZXJuYWwgdm9sdGFnZSBzdXBwbHkgZm9yIG91dHB1dHMgb24gdGhlIGZyb250IHBhbmVsOiBEQyAyNCBWICsyNS8tMjAgJSBTRUxWIiwic29ydE5vIjo1fSx7Im5hbWUiOiJIb3VzaW5nIiwidmFsdWUiOiJQbGFzdGljIGhvdXNpbmcgZm9yIERJTi1yYWlsIG1vdW50aW5nIGluIHRoZSBjb250cm9sIGNhYmluZXQiLCJzb3J0Tm8iOjZ9LHsibmFtZSI6IlByb3RlY3Rpb24gdHlwZSIsInZhbHVlIjoiSVAyMCIsInNvcnRObyI6N30seyJuYW1lIjoiQW1iaWVudCB0ZW1wZXJhdHVyZSByYW5nZSIsInZhbHVlIjoiLTIwIHRvICs1NSDCsEMiLCJzb3J0Tm8iOjh9LHsibmFtZSI6IkRpbWVuc2lvbnMgKFcgw5cgSCDDlyBEKSIsInZhbHVlIjoiNDUgbW0gw5cgMTAzLjYgbW0gw5cgMTAxLjUgbW0gKHdpdGhvdXQgY29ubmVjdGlvbiBlbGVtZW50cykiLCJzb3J0Tm8iOjl9XSwiaGlnaGxpZ2h0cyI6W3siaWNvblRleHQiOiJpY29uLWZsb3ctdHJlZSIsImRlc2NyaXB0aW9uIjoiRmxleGlibHkgY29uZmlndXJhYmxlIGlucHV0cyBhbmQgb3V0cHV0cyIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24tc2hpZWxkIiwiZGVzY3JpcHRpb24iOiJIaWdoIGxvYWQgY2FwYWNpdHkgcGVyIGRpZ2l0YWwgb3V0cHV0IiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi1jb21wb3NlIiwiZGVzY3JpcHRpb24iOiJDb252ZW5pZW50LCBmbGV4aWJsZSBwbGFubmluZyBvZiBhIHBsYW50IiwidHlwZSI6IklDT04ifV0sImRpZmZlcmVudGlhdG9ycyI6W3sidGV4dCI6IjMyIGNoYW5uZWxzLCB0aGVyZW9mIDE3IGRpZ2l0YWwgb3V0cHV0cyIsInNvcnRObyI6MH0seyJ0ZXh0IjoidXAgdG8gMTUgYWRkaXRpb25hbCBpbnB1dHMgb3Igb3V0cHV0cyIsInNvcnRObyI6MX0seyJ0ZXh0IjoiU2lnbmFsczogREMgMC8yNCBWOyBPdXRwdXQ6IG1heC4gNTAwIG1BIiwic29ydE5vIjoyfV19
title
Icon
icon-flow-tree
Description
Flexibly configurable inputs and outputs
Icon
icon-shield
Description
High load capacity per digital output
Icon
icon-compose
Description
Convenient, flexible planning of a plant
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=691208
Number of channels
32
Measurement inputs
up to 15 digital inputs DC 24 V (optional)
Outputs
17 fixed and optionally up to 15 additional digital outputs DC 24 V, max. 500 mA
Special features
3 optional expansion slots for 5 digital inputs or outputs each, switching statuses are visualized with LEDs, external voltage supply for digital inputs/outputs via terminal on the front, automatic configuration after replacement of the module insert (Plug and Play), connection of inputs on the front, removable terminal strips with PUSH IN technology, fast wiring of operating voltage and system bus provided by simple module connection principle
Connection
Removable terminal strips with PUSH IN technology on the front
Voltage supply
C 24 V +25/-20 %, external voltage supply for outputs on the front panel: DC 24 V +25/-20 % SELV
Housing
Plastic housing for DIN-rail mounting in the control cabinet
Protection type
IP20
Ambient temperature range
-20 to +55 °C
Dimensions (W × H × D)
45 mm × 103.6 mm × 101.5 mm (without connection elements)
