Produkt Details
SKU
401020
Name

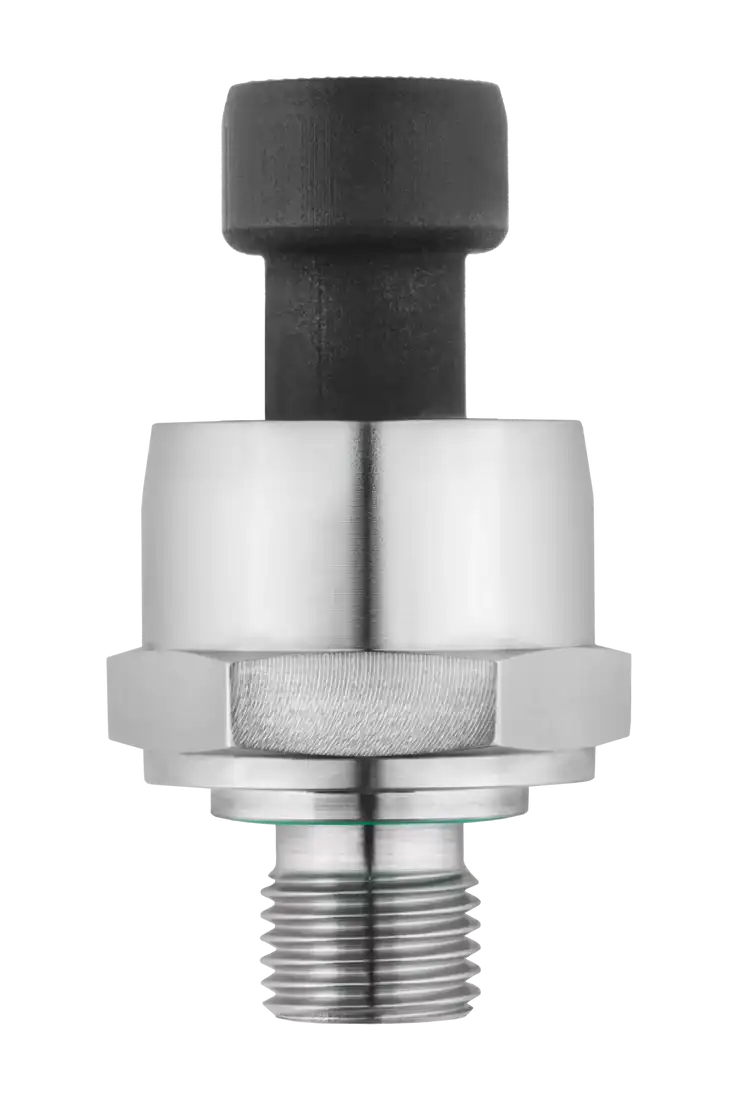

JUMO MIDAS H20 HP
Description
This pressure transmitter is used for measuring the pressure of liquid and gaseous media. The product works on the basis of the thin-film measuring principle and transforms the pressure into a voltage or current-based electrical standard signal. It is mainly used for high-pressure applications in commercial vehicles.
Short Description
OEM pressure transmitter for high pressure applications
Availability
In Stock
Images
State
LIVE
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9MjgzOTQyIiwiYmVuZWZpdHMiOltdLCJiZW5lZml0c0ludHJvZHVjdGlvbiI6IiIsInRlY2huaWNhbERhdGEiOlt7Im5hbWUiOiJQcm9jZXNzIGNvbm5lY3Rpb24iLCJ2YWx1ZSI6IkFsbCBzY3JldyBjb25uZWN0aW9ucyB0aGF0IGFyZSBzdGFuZGFyZCBpbiB0aGUgaW5kdXN0cnkiLCJzb3J0Tm8iOjB9LHsibmFtZSI6IkFjY3VyYWN5IChsaW5lYXJpdHkpIiwidmFsdWUiOiIwLjXCoHRvwqAxwqAlIiwic29ydE5vIjoxfSx7Im5hbWUiOiJJbnB1dCIsInZhbHVlIjoiMMKgdG/CoDEwMDDCoGJhciByZWxhdGl2ZSBwcmVzc3VyZSIsInNvcnRObyI6Mn0seyJuYW1lIjoiT3V0cHV0IiwidmFsdWUiOiI0wqB0b8KgMjDCoG1BIHR3by13aXJlOyBEQ8KgMC41wqB0b8KgMTDCoFbCoHRocmVlLXdpcmUiLCJzb3J0Tm8iOjN9LHsibmFtZSI6Ik1lZGl1bSB0ZW1wZXJhdHVyZSIsInZhbHVlIjoiLTQwwqB0b8KgKzEyNcKgwrBDIiwic29ydE5vIjo0fSx7Im5hbWUiOiJNZWFzdXJpbmcgc3lzdGVtIiwidmFsdWUiOiJUaGluLWZpbG0gdGVjaG5vbG9neSIsInNvcnRObyI6NX1dLCJoaWdobGlnaHRzIjpbeyJpY29uVGV4dCI6Imljb24tcGx1ZyIsImRlc2NyaXB0aW9uIjoiVmFyaW91cyBwbHVnIHZhcmlhbnRzIiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi1zaGllbGQiLCJkZXNjcmlwdGlvbiI6IkhpZ2ggaW5zdWxhdGlvbiB2b2x0YWdlIiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi1waG9uZS1zaGFrZSIsImRlc2NyaXB0aW9uIjoiVmlicmF0aW9uIGFuZCBzaG9jayByZXNpc3RhbmNlIiwidHlwZSI6IklDT04ifV0sImRpZmZlcmVudGlhdG9ycyI6W3sidGV4dCI6Ik1lYXN1cmluZyByYW5nZTogMTAwwqB0b8KgMTAwMCBiYXIgcmVsYXRpdmUiLCJzb3J0Tm8iOjB9LHsidGV4dCI6IlByb3RlY3Rpb24gdHlwZSBJUDY1IHRvIElQNjlLIiwic29ydE5vIjoxfSx7InRleHQiOiJFQ0UgdHlwZSBhcHByb3ZhbCIsInNvcnRObyI6Mn1dfQ==
title
Icon
icon-plug
Description
Various plug variants
Icon
icon-shield
Description
High insulation voltage
Icon
icon-phone-shake
Description
Vibration and shock resistance
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=283942
Process connection
All screw connections that are standard in the industry
Accuracy (linearity)
0.5 to 1 %
Input
0 to 1000 bar relative pressure
Output
4 to 20 mA two-wire; DC 0.5 to 10 V three-wire
Medium temperature
-40 to +125 °C
Measuring system
Thin-film technology
