Produkt Details
SKU
406020
Name

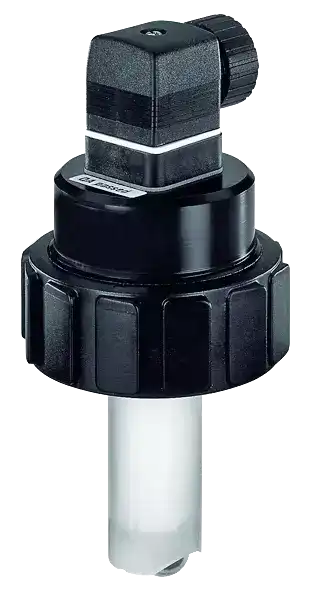

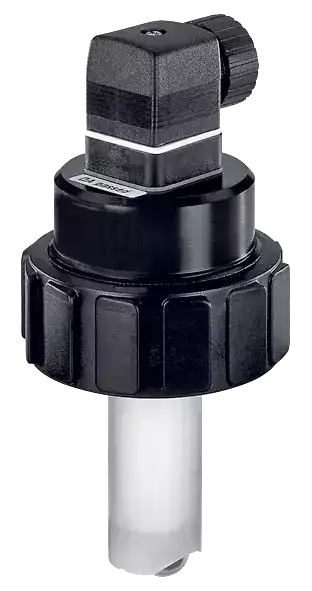

JUMO flowTRANS PW I01
Description
The product continuously measures the flow velocity of neutral or slightly aggressive liquids that have low solid content Flow velocities of 0.3 to 10 m/s can be measured. The measured value appears as a pulse frequency.
Short Description
Plug-in paddlewheel flow sensor
Availability
In Stock
Images
State
LIVE
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9Njg0MSIsImJlbmVmaXRzIjpbXSwiYmVuZWZpdHNJbnRyb2R1Y3Rpb24iOiIiLCJ0ZWNobmljYWxEYXRhIjpbeyJuYW1lIjoiTWVhc3VyaW5nIHJhbmdlIiwidmFsdWUiOiIwLjMgdG8gMTAgbS9zIiwic29ydE5vIjowfSx7Im5hbWUiOiJOb21pbmFsIHByZXNzdXJlIiwidmFsdWUiOiJQTiAxMCIsInNvcnRObyI6MX0seyJuYW1lIjoiTWVkaXVtIHRlbXBlcmF0dXJlIiwidmFsdWUiOiI4MMKgwrBDIiwic29ydE5vIjoyfSx7Im5hbWUiOiJOb21pbmFsIHBpcGUgd2lkdGgiLCJ2YWx1ZSI6IkROIDE1IHRvIEROIDQwMCIsInNvcnRObyI6M30seyJuYW1lIjoiT3V0cHV0IiwidmFsdWUiOiJQdWxzZSBmcmVxdWVuY3ksIDAgdG8gMzAwIEh6LCBkdXR5IGN5Y2xlIDUwwqAlIiwic29ydE5vIjo0fSx7Im5hbWUiOiJNZWFzdXJpbmcgYWNjdXJhY3kiLCJ2YWx1ZSI6IuKJpCDCscKgMi41wqAlIG9mIHRoZSBtZWFzdXJlZCB2YWx1ZSAoc3RhbmRhcmQgY2FsaWJyYXRpb24gZmFjdG9yKTsg4omkIMKxIDEgJSBvZiB0aGUgbWVhc3VyZWQgdmFsdWUgKFRlYWNoLUluKSIsInNvcnRObyI6NX0seyJuYW1lIjoiUGFydHMgaW4gY29udGFjdCB3aXRoIG1lZGl1bSIsInZhbHVlIjoiUFZERiwgY2VyYW1pYywgRktNLCBvciBFUERNIiwic29ydE5vIjo2fSx7Im5hbWUiOiJQcm90ZWN0aW9uIHR5cGUiLCJ2YWx1ZSI6IklQNjUiLCJzb3J0Tm8iOjd9LHsibmFtZSI6IlZvbHRhZ2Ugc3VwcGx5IiwidmFsdWUiOiJEQyAxMiB0byAzNiBWIiwic29ydE5vIjo4fSx7Im5hbWUiOiJNZWRpdW0iLCJ2YWx1ZSI6IkxpcXVpZHMg4oCTIGxvdyB2aXNjb3NpdHksIHNsaWdodGx5IGFnZ3Jlc3NpdmUsIGxvdyBzb2xpZCBjb250ZW50Iiwic29ydE5vIjo5fSx7Im5hbWUiOiJBY2Nlc3NvcmllcyIsInZhbHVlIjoiVC1waWVjZXM7IHdlbGRlZCBzb2NrZXRzOyBwaXBlIGNsYW1wczsgUENWLCBvciBzdGFpbmxlc3Mgc3RlZWwiLCJzb3J0Tm8iOjEwfV0sImhpZ2hsaWdodHMiOlt7Imljb25UZXh0IjoiaWNvbi13cmVuY2giLCJkZXNjcmlwdGlvbiI6Ik1pbmltYWwgaW5zdGFsbGF0aW9uIGVmZm9ydCIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24tc3VjY2VzcyIsImRlc2NyaXB0aW9uIjoiU3RhbmRhcmRpemVkIGZpdHRpbmdzIiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi1jYWxjdWxhdG9yIiwiZGVzY3JpcHRpb24iOiJMb3cgwqBpbnZlc3RtZW50wqBjb3N0cyIsInR5cGUiOiJJQ09OIn1dLCJkaWZmZXJlbnRpYXRvcnMiOlt7InRleHQiOiJQdWxzZSBmcmVxdWVuY3kgc2lnbmFsIiwic29ydE5vIjowfSx7InRleHQiOiJQcmVzc3VyZXMgdXAgdG8gUE4gMTAiLCJzb3J0Tm8iOjF9LHsidGV4dCI6IlRlbXBlcmF0dXJlcyB1cCB0byA3MMKgwrBDIiwic29ydE5vIjoyfV19
title
Icon
icon-wrench
Description
Minimal installation effort
Icon
icon-success
Description
Standardized fittings
Icon
icon-calculator
Description
Low investment costs
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=6841
Measuring range
0.3 to 10 m/s
Nominal pressure
PN 10
Medium temperature
80 °C
Nominal pipe width
DN 15 to DN 400
Output
Pulse frequency, 0 to 300 Hz, duty cycle 50 %
Measuring accuracy
≤ ± 2.5 % of the measured value (standard calibration factor); ≤ ± 1 % of the measured value (Teach-In)
Parts in contact with medium
PVDF, ceramic, FKM, or EPDM
Protection type
IP65
Voltage supply
DC 12 to 36 V
Medium
Liquids – low viscosity, slightly aggressive, low solid content
Accessories
T-pieces; welded sockets; pipe clamps; PCV, or stainless steel
