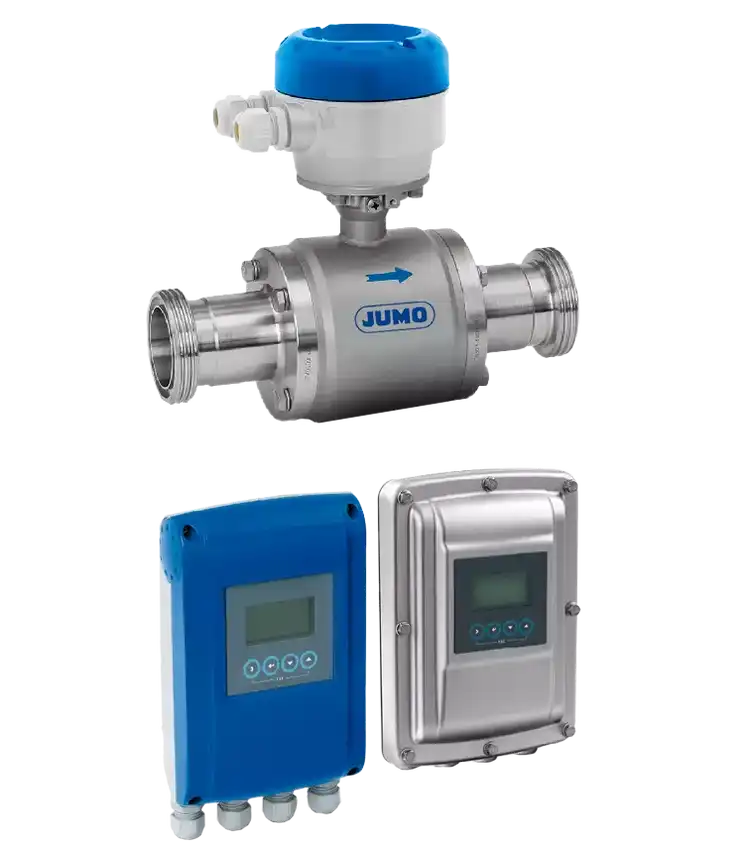

OPTIFLUX 6000
Description
The OPTIFLUX 6000 is an electromagnetic flowmeter (EMF) for hygienic applications in the food sector. The 3A and EHEDG certified flowmeter has industry-specific insertion lengths to meet the stringent requirements of the food and beverage industry.
Short Description
Electromagnetic flowmeter
Price
€0.00
Availability
In Stock
Images
State
NEW
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9MTExMzkwMyIsImJlbmVmaXRzIjpbXSwiYmVuZWZpdHNJbnRyb2R1Y3Rpb24iOiIiLCJ0ZWNobmljYWxEYXRhIjpbeyJuYW1lIjoiTWVhc3VyaW5nIHByaW5jaXBsZSIsInZhbHVlIjoiTWFnbmV0aWMtaW5kdWN0aXZlIiwic29ydE5vIjowfSx7Im5hbWUiOiJOb21pbmFsIHdpZHRocyIsInZhbHVlIjoiRE4gMi41IHRvIEROIDE1MCIsInNvcnRObyI6MX0seyJuYW1lIjoiQWNjdXJhY3kiLCJ2YWx1ZSI6IlVwIHRvIDAuMyAlIG9mIHRoZSBtZWFzdXJlZCB2YWx1ZSIsInNvcnRObyI6Mn0seyJuYW1lIjoiTWVkaXVtIHRlbXBlcmF0dXJlIiwidmFsdWUiOiJVcCB0byAxNDAgwrBDIiwic29ydE5vIjozfSx7Im5hbWUiOiJQcm9jZXNzIGNvbm5lY3Rpb24iLCJ2YWx1ZSI6IkRJTiAxMTg1MSwgVHJpLUNsYW1wIiwic29ydE5vIjo0fSx7Im5hbWUiOiJMaW5pbmciLCJ2YWx1ZSI6IlBGQSIsInNvcnRObyI6NX0seyJuYW1lIjoiQW1iaWVudCB0ZW1wZXJhdHVyZSIsInZhbHVlIjoiVXAgdG8gNjUgwrBDIiwic29ydE5vIjo2fSx7Im5hbWUiOiJQcm90ZWN0aW9uIHR5cGUiLCJ2YWx1ZSI6IklQNjYvSVA2NywgSVA2OSBmb3Igc3RhaW5sZXNzIHN0ZWVsIGNhc2UiLCJzb3J0Tm8iOjd9LHsibmFtZSI6Ik91dHB1dHMiLCJ2YWx1ZSI6IkFuYWxvZyBvdXRwdXQgKDQgdG8gMjAgbUEpIHdpdGggSEFSVCBhbmQgcHVsc2UvZnJlcXVlbmN5L3N0YXR1cyIsInNvcnRObyI6OH0seyJuYW1lIjoiRGlzcGxheSIsInZhbHVlIjoiTENEIGRpc3BsYXksIHdoaXRlIGJhY2tsaWdodCBmb3IgZGlzcGxheWluZyB1cCB0byAzIG1lYXN1cmVkIHZhbHVlcyIsInNvcnRObyI6OX0seyJuYW1lIjoiU3BlY2lhbCBmZWF0dXJlcyIsInZhbHVlIjoiRUhFREcgYW5kIDNBIGFwcHJvdmFsOyBvcHRpb25hbCBzdGFpbmxlc3Mgc3RlZWwgY2FzZSIsInNvcnRObyI6MTB9XSwiaGlnaGxpZ2h0cyI6W3siaWNvblRleHQiOiJpY29uLXNoaWVsZCIsImRlc2NyaXB0aW9uIjoiM0EsIEVIRURHLCBGREEgJiBFQzE5MzUvMjAwNCBjb21wbGlhbnQiLCJ0eXBlIjoiSUNPTiJ9LHsiaWNvblRleHQiOiJpY29uLXN1Y2Nlc3MiLCJkZXNjcmlwdGlvbiI6Ik9wdC4gc3RhaW5sZXNzIHN0ZWVsIGNhc2Uvc2VwYXJhdGVkL2NvbXBhY3QiLCJ0eXBlIjoiSUNPTiJ9LHsiaWNvblRleHQiOiJpY29uLWJhc2ljcyIsImRlc2NyaXB0aW9uIjoiRXh0ZW5zaXZlIGVycm9yIGRpYWdub3N0aWNzIiwidHlwZSI6IklDT04ifV0sImRpZmZlcmVudGlhdG9ycyI6W3sidGV4dCI6IkFzIG9mIEROIDIuNSIsInNvcnRObyI6MH0seyJ0ZXh0IjoiM0EgYW5kIEVIRURHIGNlcnRpZmllZCIsInNvcnRObyI6MX0seyJ0ZXh0IjoiT3B0aW9uYWwgc3RhaW5sZXNzIHN0ZWVsIGNhc2UiLCJzb3J0Tm8iOjJ9XX0=
title
Icon
icon-shield
Description
3A, EHEDG, FDA & EC1935/2004 compliant
Icon
icon-success
Description
Opt. stainless steel case/separated/compact
Icon
icon-basics
Description
Extensive error diagnostics
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=1113903
Measuring principle
Magnetic-inductive
Nominal widths
DN 2.5 to DN 150
Accuracy
Up to 0.3 % of the measured value
Medium temperature
Up to 140 °C
Process connection
DIN 11851, Tri-Clamp
Lining
PFA
Ambient temperature
Up to 65 °C
Protection type
IP66/IP67, IP69 for stainless steel case
Outputs
Analog output (4 to 20 mA) with HART and pulse/frequency/status
Display
LCD display, white backlight for displaying up to 3 measured values
Special features
EHEDG and 3A approval; optional stainless steel case
