Name

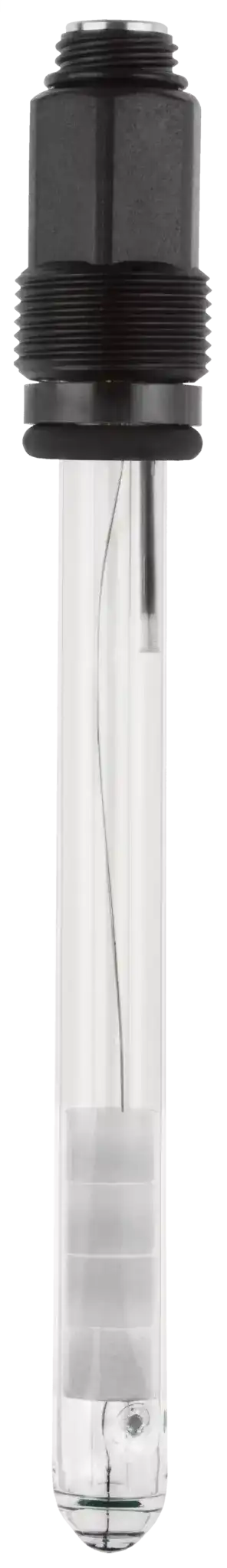

JUMO tecLine
Description
The product acquires the redox value of water and aqueous-based media. This high-quality industrial electrode is mainly used in swimming pools and for drinking water disinfection.
Short Description
Redox combination electrodes
Availability
In Stock
Images
State
LIVE
Variants
Active component
Diaphragm
- 1 x glass fiber diaphragm ✓
- 1 x zirconium dioxide diaphragm ✓
- Annular-gap diaphragm, gel of polymerized solid electrolyte (diaphragm-free) ✓
- PTFE ring diaphragm ✓
Insertion length
Basic type
- Industrial Redox electrode, glass shaft, gel-sealed, cartridge-style conduction system ✓
- Redox electrode, PEI plastic shaft, with protection basket, gel-sealed, glass filament diaphragm, cartridge ✓
Extra code 838
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9NDcxNCIsImJlbmVmaXRzIjpbXSwiYmVuZWZpdHNJbnRyb2R1Y3Rpb24iOiIiLCJ0ZWNobmljYWxEYXRhIjpbeyJuYW1lIjoiQWN0aXZlIHBhcnQiLCJ2YWx1ZSI6IlBsYXRpbnVtIG9yIGdvbGQgY29uZSAowrEgMjAwMCBtVikiLCJzb3J0Tm8iOjB9LHsibmFtZSI6IkRpYXBocmFnbSIsInZhbHVlIjoiQ2VyYW1pYyBkaWFwaHJhZ20sIGdsYXNzIGZpYmVyIGRpYXBocmFnbSwgUFRGRSByaW5nIGRpYXBocmFnbSwgYW5udWxhciBnYXAgb3IgaG9sZSBkaWFwaHJhZ20iLCJzb3J0Tm8iOjF9LHsibmFtZSI6IkVsZWN0cm9kZSBoZWFkIiwidmFsdWUiOiJQbHVnIGhlYWQ7IHBsdWcgaGVhZCB3aXRoIGZpeGVkIGNhYmxlOyBzY3JldyBoZWFkIFBnMTMuNTsgc2NyZXcgaGVhZCBQZzEzLjUgd2l0aCBmaXhlZCBjYWJsZSIsInNvcnRObyI6Mn0seyJuYW1lIjoiUHJlc3N1cmUgcmFuZ2UiLCJ2YWx1ZSI6IjAgdG8gMTAgYmFyIiwic29ydE5vIjozfSx7Im5hbWUiOiJUZW1wZXJhdHVyZSByYW5nZSIsInZhbHVlIjoiLTEwIHRvICsxMzXCoMKwQyIsInNvcnRObyI6NH0seyJuYW1lIjoiRmVhdHVyZXMiLCJ2YWx1ZSI6IkZvciBpbmR1c3RyaWFsIGFwcGxpY2F0aW9ucywgaGlnaCBsZXZlbCBvZiBtZWNoYW5pY2FsIHJvYnVzdG5lc3MsIHdpdGggcGxhc3RpYyBzaGFmdCIsInNvcnRObyI6NX0seyJuYW1lIjoiQXJlYXMgb2YgYXBwbGljYXRpb24iLCJ2YWx1ZSI6IlN3aW1taW5nIHBvb2wgYW5kIGRyaW5raW5nIHdhdGVyIGRpc2luZmVjdGlvbjsgY2hyb21hdGUgcmVkdWN0aW9uLCBuaXRyaXRlIG94aWRhdGlvbiwgY3lhbmlkZSBveGlkYXRpb24sIHdhdGVyIGRpc2luZmVjdGlvbiIsInNvcnRObyI6Nn1dLCJoaWdobGlnaHRzIjpbeyJpY29uVGV4dCI6Imljb24tZGlhbW9uZCIsImRlc2NyaXB0aW9uIjoiSGlnaC1xdWFsaXR5IGluZHVzdHJpYWwgZWxlY3Ryb2RlIiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi1tb25pdG9yIiwiZGVzY3JpcHRpb24iOiJDb25zaXN0ZW50IGNoYXJhY3RlcmlzdGljcyIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24tY29tcG9zZSIsImRlc2NyaXB0aW9uIjoiQ29tYmluZWQgbWVhc3VyaW5nIGNoYWlucyBpbiBvbmUgc2hhZnQiLCJ0eXBlIjoiSUNPTiJ9XSwiZGlmZmVyZW50aWF0b3JzIjpbeyJ0ZXh0IjoiTWVhc3VyaW5nIHJhbmdlOiDCsSAyMDAwIG1WIiwic29ydE5vIjowfSx7InRleHQiOiJUZW1wZXJhdHVyZTogLTEwIHRvICsxMzXCoMKwQyIsInNvcnRObyI6MX0seyJ0ZXh0IjoiUHJvY2VzcyBwcmVzc3VyZSB1cCB0byAxMCBiYXIiLCJzb3J0Tm8iOjJ9XX0=
title
Icon
icon-diamond
Description
High-quality industrial electrode
Icon
icon-monitor
Description
Consistent characteristics
Icon
icon-compose
Description
Combined measuring chains in one shaft
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=4714
Active part
Platinum or gold cone (± 2000 mV)
Diaphragm
Ceramic diaphragm, glass fiber diaphragm, PTFE ring diaphragm, annular gap or hole diaphragm
Electrode head
Plug head; plug head with fixed cable; screw head Pg13.5; screw head Pg13.5 with fixed cable
Pressure range
0 to 10 bar
Temperature range
-10 to +135 °C
Features
For industrial applications, high level of mechanical robustness, with plastic shaft
Areas of application
Swimming pool and drinking water disinfection; chromate reduction, nitrite oxidation, cyanide oxidation, water disinfection
