ps-1
Overview
title
Produkt Details
SKU
201027
Name

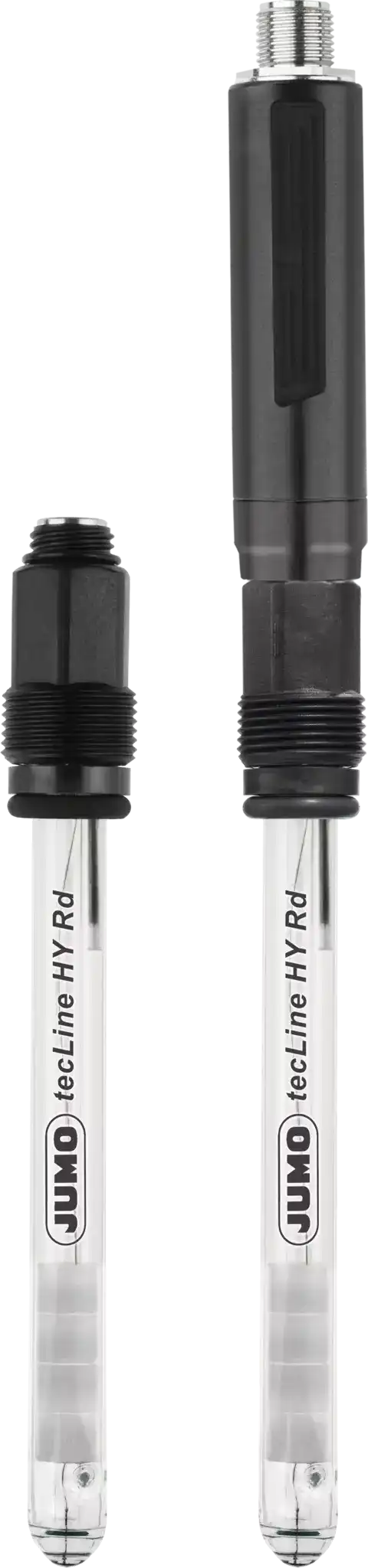

JUMO tecLine HY
Description
The electrode acquires the redox potential of water and aqueous-based media. This robust electrode is suitable for demanding and hygienic applications in the process industry. JUMO tecLine HY redox electrodes have a high-quality zirconium dioxide diaphragm.
Short Description
Redox combination electrodes
Price
€2,643.38
Availability
In Stock
Images
State
LIVE
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9MzE3NzY4IiwiYmVuZWZpdHMiOltdLCJiZW5lZml0c0ludHJvZHVjdGlvbiI6IiIsInRlY2huaWNhbERhdGEiOlt7Im5hbWUiOiJBY3RpdmUgcGFydCIsInZhbHVlIjoiUGxhdGludW0gb3IgZ29sZCB0aXAgKMKxIDE1MDAgbVYpIiwic29ydE5vIjowfSx7Im5hbWUiOiJEaWFwaHJhZ20iLCJ2YWx1ZSI6IkNlcmFtaWMgZGlhcGhyYWdtLCBnbGFzcyBmaWJlciBkaWFwaHJhZ20sIFBURkUgcmluZyBkaWFwaHJhZ20sIGFubnVsYXIgZ2FwIG9yIGhvbGUgZGlhcGhyYWdtIiwic29ydE5vIjoxfSx7Im5hbWUiOiJGZWF0dXJlcyIsInZhbHVlIjoiRm9yIGluZHVzdHJpYWwgYXBwbGljYXRpb25zLCBhbHNvIGF2YWlsYWJsZSBpbiBoZWF2eS1kdXR5IGFuZCBoeWdpZW5pYyB2ZXJzaW9uIGZvciBkZW1hbmRpbmcgcHJvY2Vzc2VzOyBpbnRlZ3JhdGVkIHRlbXBlcmF0dXJlIHNlbnNvciAob3B0aW9uYWwgZm9yIHBIIGVsZWN0cm9kZSkiLCJzb3J0Tm8iOjJ9LHsibmFtZSI6IkVsZWN0cm9kZSBoZWFkIiwidmFsdWUiOiJQbHVnIGhlYWQ7IHBsdWcgaGVhZCB3aXRoIGZpeGVkIGNhYmxlOyBzY3JldyBoZWFkIFBnMTMuNTsgc2NyZXcgaGVhZCBQZzEzLjUgd2l0aCBmaXhlZCBjYWJsZSIsInNvcnRObyI6M30seyJuYW1lIjoiUHJlc3N1cmUgcmFuZ2UiLCJ2YWx1ZSI6IjAgdG8gNiBiYXIiLCJzb3J0Tm8iOjR9LHsibmFtZSI6IlRlbXBlcmF0dXJlIHJhbmdlIiwidmFsdWUiOiIwIHRvIDEzNcKgwrBDIiwic29ydE5vIjo1fSx7Im5hbWUiOiJBcmVhcyBvZiBhcHBsaWNhdGlvbiIsInZhbHVlIjoiUHJvY2Vzc2VzIHdpdGggaGlnaGVyIGNvbnRpbnVvdXMgdGVtcGVyYXR1cmVzIHVwIHRvIDEzNSDCsEMgYW5kIHByZXNzdXJlcyB1cCB0byA2IGJhciwgaHlnaWVuaWMgYXBwbGljYXRpb25zLCBzdGVyaWxpemF0aW9uIGFuZCBmZXJtZW50YXRpb24gcHJvY2Vzc2VzIGluIHRoZSBmb29kIGFuZCBwaGFybWFjZXV0aWNhbCBpbmR1c3RyeSwgdW5pdmVyc2FsIHVzZSBpbiB1bnBvbGx1dGVkIGFuZCBzbGlnaHRseSBwb2xsdXRlZCBhcXVlb3VzIG1lZGlhOyBkcmlua2luZywgc2FsdCwgYW5kIHNlYXdhdGVyIGFwcGxpY2F0aW9ucyIsInNvcnRObyI6Nn1dLCJoaWdobGlnaHRzIjpbeyJpY29uVGV4dCI6Imljb24tY29tcG9zZSIsImRlc2NyaXB0aW9uIjoiQ2VydGlmaWVkIGJpb2NvbXBhdGliaWxpdHkiLCJ0eXBlIjoiSUNPTiJ9LHsiaWNvblRleHQiOiJpY29uLXBsYXliYWNrLW5leHQiLCJkZXNjcmlwdGlvbiI6IkxvdyBkaWZmdXNpb24gcG90ZW50aWFscyIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24tYm9vay1kb3dubG9hZCIsImRlc2NyaXB0aW9uIjoiSW50ZXJuYWwgcHJlc3N1cmUgYnVmZmVyIiwidHlwZSI6IklDT04ifV0sImRpZmZlcmVudGlhdG9ycyI6W3sidGV4dCI6Ik1lYXN1cmluZyByYW5nZTogwrEgMTUwMCBtViIsInNvcnRObyI6MH0seyJ0ZXh0IjoiVGVtcGVyYXR1cmU6IDAgdG8gMTM1wqDCsEMiLCJzb3J0Tm8iOjF9LHsidGV4dCI6IlByb2Nlc3MgcHJlc3N1cmUgdXAgdG8gNiBiYXIiLCJzb3J0Tm8iOjJ9XX0=
title
Icon
icon-compose
Description
Certified biocompatibility
Icon
icon-playback-next
Description
Low diffusion potentials
Icon
icon-book-download
Description
Internal pressure buffer
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=317768
Active part
Platinum or gold tip (± 1500 mV)
Diaphragm
Ceramic diaphragm, glass fiber diaphragm, PTFE ring diaphragm, annular gap or hole diaphragm
Features
For industrial applications, also available in heavy-duty and hygienic version for demanding processes; integrated temperature sensor (optional for pH electrode)
Electrode head
Plug head; plug head with fixed cable; screw head Pg13.5; screw head Pg13.5 with fixed cable
Pressure range
0 to 6 bar
Temperature range
0 to 135 °C
Areas of application
Processes with higher continuous temperatures up to 135 °C and pressures up to 6 bar, hygienic applications, sterilization and fermentation processes in the food and pharmaceutical industry, universal use in unpolluted and slightly polluted aqueous media; drinking, salt, and seawater applications
