Produkt Details
SKU
202767
Name

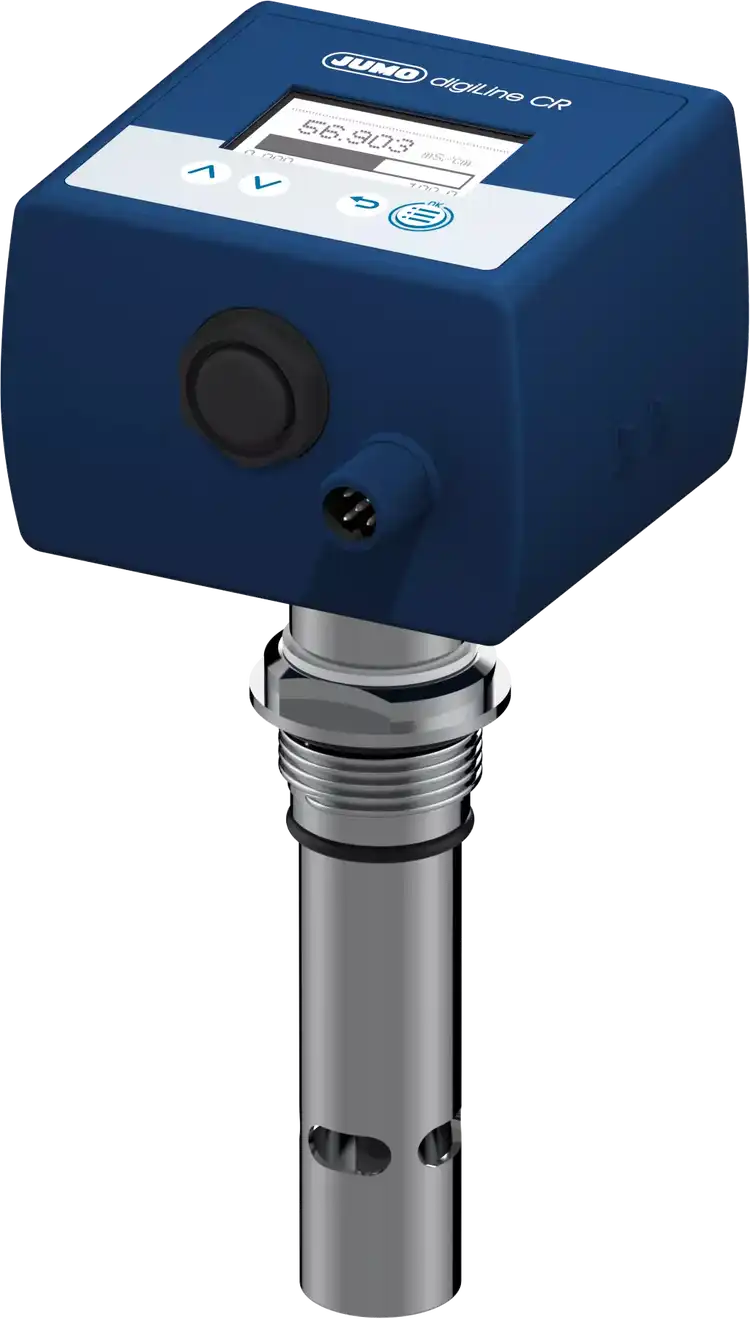

JUMO digiLine CR HT50
Description
JUMO digiLine CR now enables conductive conductivity sensors to be connected to the intelligent, bus-compatible JUMO digiLine system. System integration can now also take place via an IO-Link interface. The sensor is firmly connected to the head transmitter.
Short Description
Head transmitter with conductive two-electrode conductivity sensor type PK
Price
€0.00
Availability
In Stock
Images
State
LIVE
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9NzAzMzkyIiwiYmVuZWZpdHMiOltdLCJiZW5lZml0c0ludHJvZHVjdGlvbiI6IiIsInRlY2huaWNhbERhdGEiOlt7Im5hbWUiOiJNZWFzdXJpbmcgcHJpbmNpcGxlIiwidmFsdWUiOiJDb25kdWN0aXZlIiwic29ydE5vIjowfSx7Im5hbWUiOiJTZW5zb3IgY29ubmVjdGlvbiIsInZhbHVlIjoiQ29tcGFjdCBkZXNpZ24gdHlwZSIsInNvcnRObyI6MX0seyJuYW1lIjoiU2Vuc29yIG1hdGVyaWFsIiwidmFsdWUiOiJTdGFpbmxlc3Mgc3RlZWwgMS40NDM1Iiwic29ydE5vIjoyfSx7Im5hbWUiOiJNZWFzdXJpbmcgcmFuZ2UiLCJ2YWx1ZSI6IjAuMDXCoMK1Uy9jbSB0byAxwqBtUy9jbSIsInNvcnRObyI6M30seyJuYW1lIjoiVGVtcGVyYXR1cmUgY29tcGVuc2F0aW9uIiwidmFsdWUiOiJMaW5lYXIsIEFTVE0sIFVTUCA8NjQ1PiIsInNvcnRObyI6NH0seyJuYW1lIjoiVGVtcGVyYXR1cmUiLCJ2YWx1ZSI6Ik1heC4gMTM1wqDCsEMgKHRlbXBvcmFyaWx5IDE1MMKgwrBDKSIsInNvcnRObyI6NX0seyJuYW1lIjoiUHJlc3N1cmUiLCJ2YWx1ZSI6Ik1heC4gOcKgYmFyIiwic29ydE5vIjo2fSx7Im5hbWUiOiJJbnRlcmZhY2VzIiwidmFsdWUiOiJKVU1PIGRpZ2lMaW5lIG9yIElPLUxpbmsiLCJzb3J0Tm8iOjd9LHsibmFtZSI6IkFyZWFzIG9mIGFwcGxpY2F0aW9uIiwidmFsdWUiOiJVbHRyYS1wdXJlIHdhdGVyIGFwcGxpY2F0aW9uczsgcmV2ZXJzZSBvc21vc2lzOyBpb24gZXhjaGFuZ2VyczsgcGhhcm1hY2V1dGljYWwgYXBwbGljYXRpb25zIiwic29ydE5vIjo4fV0sImhpZ2hsaWdodHMiOlt7Imljb25UZXh0IjoiaWNvbi13cmFuY2giLCJkZXNjcmlwdGlvbiI6IlByZWRpY3RpdmUgbWFpbnRlbmFuY2UgdGhhbmtzIHRvIEpVTU8gRFNNIiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi1hbnNjaGx1ZXNzZSIsImRlc2NyaXB0aW9uIjoiRmxleGlibGUgY29ubmVjdGlvbiBvcHRpb25zIiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi1hbGFybSIsImRlc2NyaXB0aW9uIjoiT3B0aW11bSBwcm9jZXNzIG1vbml0b3JpbmciLCJ0eXBlIjoiSUNPTiJ9XSwiZGlmZmVyZW50aWF0b3JzIjpbeyJ0ZXh0IjoiQ29tcGFjdCBkZXNpZ24gdHlwZSB3aXRoIGNvbmR1Y3RpdmUgc2Vuc29yIiwic29ydE5vIjowfSx7InRleHQiOiJNZWFzdXJpbmcgcmFuZ2U6IDAuMDXCoMK1Uy9jbSB0b8KgMcKgbVMvY20iLCJzb3J0Tm8iOjF9LHsidGV4dCI6IkpVTU8gZGlnaUxpbmUgb3IgSU8tTGluayBpbnRlcmZhY2UiLCJzb3J0Tm8iOjJ9XX0=
title
Icon
icon-wranch
Description
Predictive maintenance thanks to JUMO DSM
Icon
icon-anschluesse
Description
Flexible connection options
Icon
icon-alarm
Description
Optimum process monitoring
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=703392
Measuring principle
Conductive
Sensor connection
Compact design type
Sensor material
Stainless steel 1.4435
Measuring range
0.05 µS/cm to 1 mS/cm
Temperature compensation
Linear, ASTM, USP <645>
Temperature
Max. 135 °C (temporarily 150 °C)
Pressure
Max. 9 bar
Interfaces
JUMO digiLine or IO-Link
Areas of application
Ultra-pure water applications; reverse osmosis; ion exchangers; pharmaceutical applications
