ps-1
Overview
title
Produkt Details
SKU
405101
Name

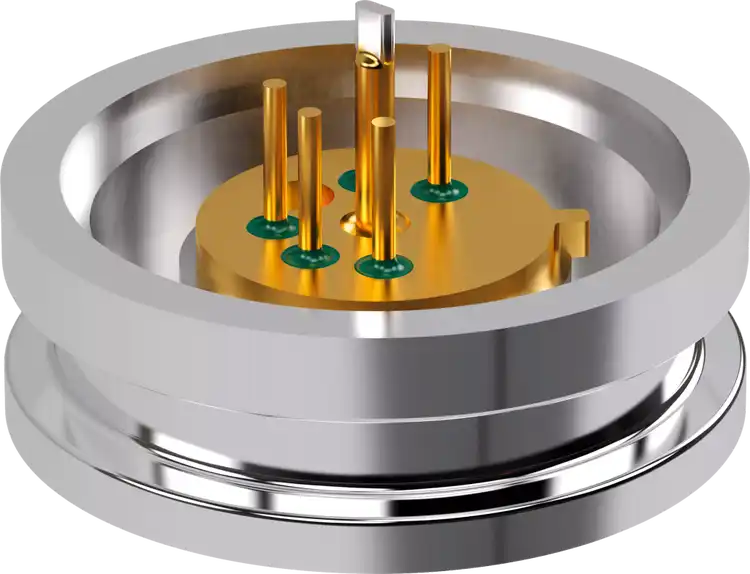

JUMO CEROS S01 M
Description
The pressure measuring cell provides a temperature compensated and calibrated digital/analog output signal. The piezoresistive sensing element with integrated signal processing is hermetically encapsulated. It ensures stable, precise linearity and accuracy values even under adverse conditions.
Short Description
Digital pressure measuring cell
Price
€0.00
Availability
In Stock
Images
State
LIVE
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9NTg0ODc4IiwiYmVuZWZpdHMiOltdLCJiZW5lZml0c0ludHJvZHVjdGlvbiI6IiIsInRlY2huaWNhbERhdGEiOlt7Im5hbWUiOiJNZWFzdXJpbmcgcmFuZ2UiLCJ2YWx1ZSI6IkFzIG9mIDEwMCBtYmFyIHRvIDEwMCBiYXIiLCJzb3J0Tm8iOjB9LHsibmFtZSI6Ik9wZXJhdGluZyB0ZW1wZXJhdHVyZSIsInZhbHVlIjoiLTQwwqB0b8KgKzEyNcKgwrBDIiwic29ydE5vIjoxfSx7Im5hbWUiOiJMaW5lYXJpdHkiLCJ2YWx1ZSI6IkFzIG9mIDAuMiAlIE1TUCIsInNvcnRObyI6Mn0seyJuYW1lIjoiU2lnbmFsIG91dHB1dCIsInZhbHVlIjoiMC41wqB0b8KgNC41wqBWwqByYXRpb21ldHJpYzsgScKyQywgREMgNSBWLCBmb3VyLXdpcmUiLCJzb3J0Tm8iOjN9LHsibmFtZSI6IlZpYnJhdGlvbiByZXNpc3RhbmNlIiwidmFsdWUiOiIyMCBnIGZvciA1IHRvIDIwMDAgSHoiLCJzb3J0Tm8iOjR9LHsibmFtZSI6IlN1cmZhY2Ugcm91Z2huZXNzIiwidmFsdWUiOiJSYSA8IDAuOCDOvG0iLCJzb3J0Tm8iOjV9LHsibmFtZSI6IkZpbGxpbmcgb2lsIiwidmFsdWUiOiJTaWxpY29uIG9pbCAoRkRBIGNvbXBsaWFudCkiLCJzb3J0Tm8iOjZ9LHsibmFtZSI6IkRpYW1ldGVyIiwidmFsdWUiOiJWYXJpb3VzIGZyb20gMTEgdG8gMTkgbW0iLCJzb3J0Tm8iOjd9XSwiaGlnaGxpZ2h0cyI6W3siaWNvblRleHQiOiJpY29uLW1pbmltaXplLWFsdCIsImRlc2NyaXB0aW9uIjoiQ29tcGFjdCBkZXNpZ24gdHlwZSIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24tbW9uaXRvciIsImRlc2NyaXB0aW9uIjoiQ29uZmlndXJhdGlvbiB0aHJvdWdoIEnCskMgaW50ZXJmYWNlIiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi1idWxsZXRzIiwiZGVzY3JpcHRpb24iOiJQcmVzc3VyZSBhbmQgdGVtcGVyYXR1cmUgYXMgYSBkaWdpdGFsIHNpZ25hbCIsInR5cGUiOiJJQ09OIn1dLCJkaWZmZXJlbnRpYXRvcnMiOlt7InRleHQiOiJNZWFzdXJpbmcgcmFuZ2UgZnJvbSAxMDAgbWJhciB0byAxMDAgYmFyIiwic29ydE5vIjowfSx7InRleHQiOiJmb3IgaW5zdGFsbGF0aW9uIGluIG9uZSdzIG93biBkZXZpY2VzIiwic29ydE5vIjoxfSx7InRleHQiOiJJbmRpdmlkdWFsIGNvbm5lY3Rpb24gcG9zc2liaWxpdGllcyIsInNvcnRObyI6Mn1dfQ==
title
Icon
icon-minimize-alt
Description
Compact design type
Icon
icon-monitor
Description
Configuration through I²C interface
Icon
icon-bullets
Description
Pressure and temperature as a digital signal
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=584878
Measuring range
As of 100 mbar to 100 bar
Operating temperature
-40 to +125 °C
Linearity
As of 0.2 % MSP
Signal output
0.5 to 4.5 V ratiometric; I²C, DC 5 V, four-wire
Vibration resistance
20 g for 5 to 2000 Hz
Surface roughness
Ra < 0.8 μm
Filling oil
Silicon oil (FDA compliant)
Diameter
Various from 11 to 19 mm
