Produkt Details
SKU
901120
Name

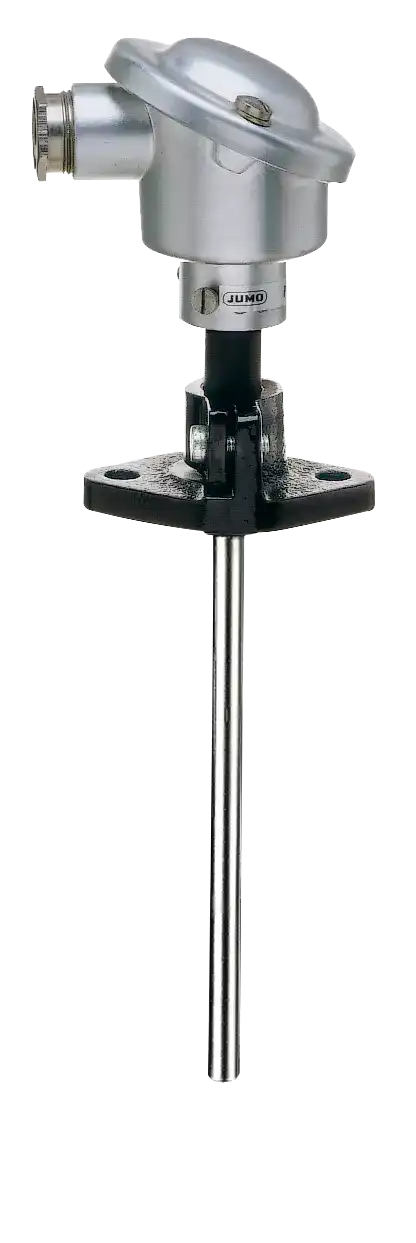

Push-in thermocouples
Description
Push-in thermocouples are predominantly used for measuring temperatures in liquid and gaseous media. Thermowells made of various ceramic materials and heat-resistant steels protect the measuring insert against chemical influences and mechanical damage.
Short Description
With terminal head form B
Availability
In Stock
Images
State
LIVE
Variants
Diameter prot. tube (mm)
Nominal length (mm)
Basic type
Protection tube material
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9NTE4OSIsImJlbmVmaXRzIjpbXSwiYmVuZWZpdHNJbnRyb2R1Y3Rpb24iOiIiLCJ0ZWNobmljYWxEYXRhIjpbeyJuYW1lIjoiQXJlYXMgb2YgYXBwbGljYXRpb24iLCJ2YWx1ZSI6IkZ1cm5hY2UgY29uc3RydWN0aW9uLCBpbmR1c3RyaWFsIGhlYXRpbmcgcGxhbnRzLCBmb3VuZHJ5IGluZHVzdHJ5Iiwic29ydE5vIjowfSx7Im5hbWUiOiJQcm90ZWN0aW9uIGZpdHRpbmciLCJ2YWx1ZSI6IkhpZ2gtdGVtcGVyYXR1cmUgc3RlZWwsIGNlcmFtaWMiLCJzb3J0Tm8iOjF9LHsibmFtZSI6Ik9wZXJhdGluZyB0ZW1wZXJhdHVyZSIsInZhbHVlIjoiLTIwMMKgdG/CoCsxNjAwwqDCsEMiLCJzb3J0Tm8iOjJ9LHsibmFtZSI6IlByb3RlY3Rpb24gdHlwZSIsInZhbHVlIjoiSVA2NSIsInNvcnRObyI6M30seyJuYW1lIjoiQ29ubmVjdGlvbiIsInZhbHVlIjoiSGVhZCIsInNvcnRObyI6NH0seyJuYW1lIjoiUHJvY2VzcyBjb25uZWN0aW9uIiwidmFsdWUiOiJGbGFuZ2UsIGNvbXByZXNzaW9uIGZpdHRpbmciLCJzb3J0Tm8iOjV9LHsibmFtZSI6IkZlYXR1cmVzIiwidmFsdWUiOiJTdHJhaWdodCB0aGVybW9jb3VwbGVzIGFjY29yZGluZyB0byBESU4gRU4gNTA0NDciLCJzb3J0Tm8iOjZ9LHsibmFtZSI6IlRoZXJtb3BhaXJzIiwidmFsdWUiOiJKLCBMLCBLLCBTLCBCIiwic29ydE5vIjo3fSx7Im5hbWUiOiJPcHRpb24iLCJ2YWx1ZSI6IkhlYWQgdHJhbnNtaXR0ZXIiLCJzb3J0Tm8iOjh9LHsibmFtZSI6Ik1lYXN1cmluZyBjaXJjdWl0cyIsInZhbHVlIjoiMS8yIiwic29ydE5vIjo5fSx7Im5hbWUiOiJBcHByb3ZhbHMiLCJ2YWx1ZSI6Ik1ldHJvbG9naWNhbCByZWdpc3RyYXRpb24iLCJzb3J0Tm8iOjEwfSx7Im5hbWUiOiJTcGVjaWFsIGZlYXR1cmVzIiwidmFsdWUiOiJDb21wbGllcyB3aXRoIHNwZWNpZmljYXRpb24gYWNjb3JkaW5nIHRvIEFNUzI3NTAgRSBhbmQgQ1FJLTkiLCJzb3J0Tm8iOjExfV0sImhpZ2hsaWdodHMiOlt7Imljb25UZXh0IjoiaWNvbi10aGVybW9tZXRlciIsImRlc2NyaXB0aW9uIjoiU2luZ2xlIG9yIGRvdWJsZSB0aGVybW9jb3VwbGUiLCJ0eXBlIjoiSUNPTiJ9LHsiaWNvblRleHQiOiJpY29uLXNoaWVsZCIsImRlc2NyaXB0aW9uIjoiSW5zdGFsbGF0aW9uIGxvY2F0aW9uIHNlYWxlZCB1cCB0byAxwqBiYXIiLCJ0eXBlIjoiSUNPTiJ9LHsiaWNvblRleHQiOiJpY29uLWNhcnQiLCJkZXNjcmlwdGlvbiI6IlRyYW5zbWl0dGVyIGF2YWlsYWJsZSIsInR5cGUiOiJJQ09OIn1dLCJkaWZmZXJlbnRpYXRvcnMiOlt7InRleHQiOiJUZW1wLjogLTIwMCB0byArMTIwMMKgwrBDIiwic29ydE5vIjowfSx7InRleHQiOiJJbnNlcnRpb24gbGVuZ3RoIDEwMCB0byA5NjDCoG1tIiwic29ydE5vIjoxfSx7InRleHQiOiJUaGVybW9jb3VwbGVzIHR5cGUgQiwgSiwgSywgTCwgYW5kIFMiLCJzb3J0Tm8iOjJ9XX0=
title
Icon
icon-thermometer
Description
Single or double thermocouple
Icon
icon-shield
Description
Installation location sealed up to 1 bar
Icon
icon-cart
Description
Transmitter available
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=5189
Areas of application
Furnace construction, industrial heating plants, foundry industry
Protection fitting
High-temperature steel, ceramic
Operating temperature
-200 to +1600 °C
Protection type
IP65
Connection
Head
Process connection
Flange, compression fitting
Features
Straight thermocouples according to DIN EN 50447
Thermopairs
J, L, K, S, B
Option
Head transmitter
Measuring circuits
1/2
Approvals
Metrological registration
Special features
Complies with specification according to AMS2750 E and CQI-9
