Produkt Details

SKU

603026

Name

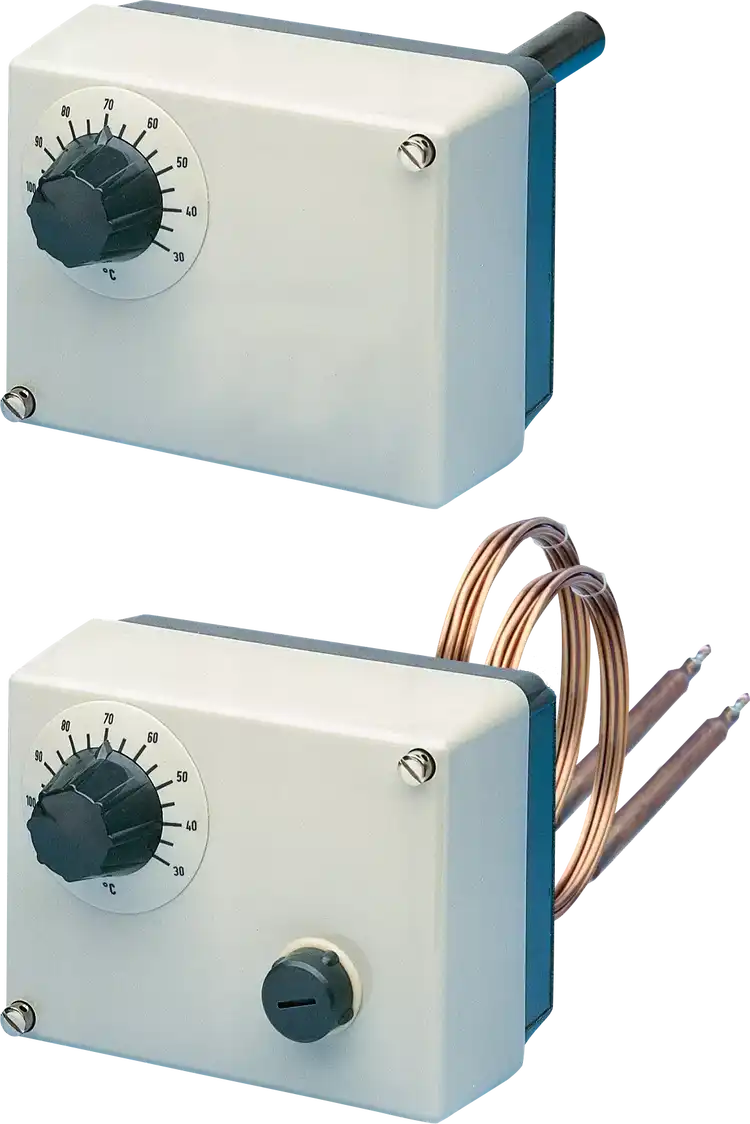

Doppio termostato da parete

Description

I doppi termostati da parete della serie ATH sono costituiti da due sistemi di misurazione e commutazione separati. I dispositivi sono disponibili come regolatori di temperatura (TR), limitatori di temperatura (TB), termostati di temperatura (TW), termostati di temperatura di sicurezza (STW) e limitatori di temperatura di sicurezza (STB).

Short Description

Serie ATH

Availability

In Stock

Images

•

State

LIVE

Variants

Attacco al processo

• Gambo rigido ad avvitare ✓
• Pozzetto ad avvitare con dissipatore ✓
• Senza ✓

Forma costruttiva

• Con capillare ✓
• Con gambo rigido ✓

Diametro pozzetto

• 15 mm ✓
• Senza pozzetto ✓

Lunghezza di inserzione

• 100 mm ✓
• 120 mm ✓
• 150 mm ✓
• 200 mm ✓
• Senza pozzetto (ATHf-) ✓

Lunghezza capillare

• 1000mm ✓
• Senza capillare ✓

Lunghezza capillare 2

• 1000mm ✓
• senza capillare ✓

Esecuzione

• ATH.-11 TR/TR ✓
• ATH.-12 TR/TW ✓
• ATH.-120 TR/STW (STB) ✓
• ATH.-22 TW/TW ✓
• ATH.-220 TW/STW (STB) ✓

Filettatura dell' attacco al processo

• G 1/2 ✓
• senza filettatura ✓

Campo scala 2

• 0..100°C ✓
• 0..50°C ✓
• 20..120°C ✓
• 20..150°C ✓
• 20..500°C ✓
• 20..90°C ✓
• 30..110°C ✓
• 60..130°C ✓

Campo scala

• 0..100°C ✓
• 0..50°C ✓
• 20..120°C ✓
• 20..150°C ✓
• 20..500°C ✓
• 20..90°C ✓
• 30..110°C ✓
• 60..130°C ✓

Isteresi 2

• 1,5% del campo scala solo TW ✓
• 3% del campo scala solo TW ✓
• 5% del campo scala solo TW+STW(STB) ✓
• 7% del campo scala solo STW(STB) ✓

Isteresi

• 1,5 % ✓
• 3 % ✓
• 5 % ✓

Temperatura apertura di sicurezza

• -20 °C ✓
• ohne ✓

Materiale capillare 2

• CrNi (Acc. inox) ✓
• Cu (rame) ✓
• senza capillare ✓

Materiale capillare

• CrNi (Acc. inox) ✓
• Cu (rame) ✓
• senza capillare ✓

Materiale attacco al processo

• CrNi (Acc. inox) ✓
• CuZn (ottone) ✓
• Senza attacco al processo ✓
