Overview
title
Produkt Details
SKU
202825
Name

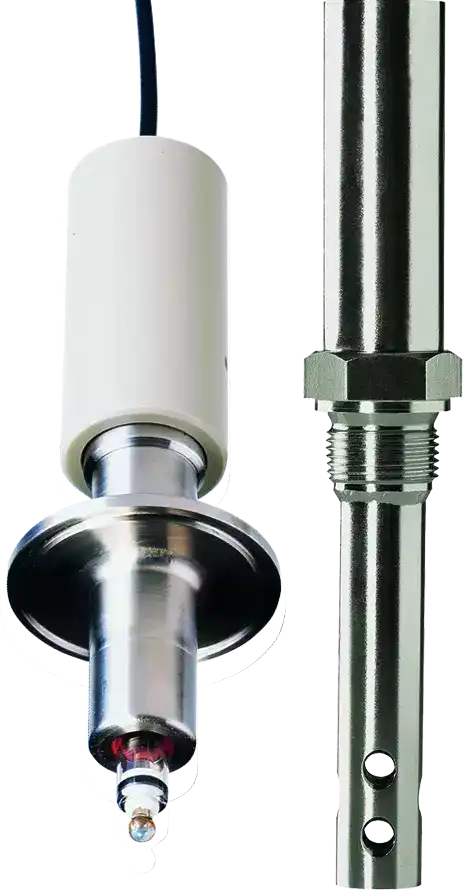

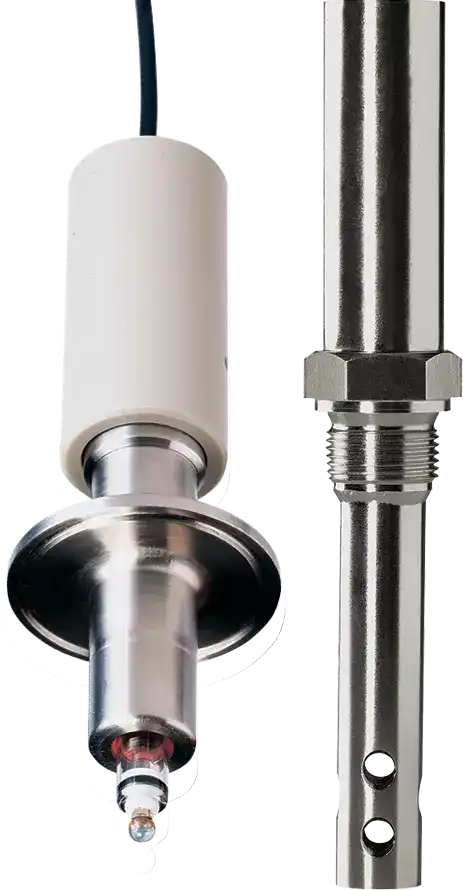

Stainless steel process fittings
Description
These fittings are intended to protect and fasten pH and redox electrodes. They can be mounted directly into existing stainless steel pipe systems or in container walls.
Short Description
For pH and redox electrodes
Availability
In Stock
Images
State
LIVE
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9NDU0NSIsImJlbmVmaXRzIjpbXSwiYmVuZWZpdHNJbnRyb2R1Y3Rpb24iOiIiLCJ0ZWNobmljYWxEYXRhIjpbeyJuYW1lIjoiUHJvY2VzcyBjb25uZWN0aW9uIiwidmFsdWUiOiJXZWxkIHNlYW07IHNjcmV3LWluIHRocmVhZCBHwr5BOyB0YXBlciBzb2NrZXQgRE4yNS81MDsgaHlnaWVuaWMgcHJvY2VzcyBjb25uZWN0aW9uczogKGNsYW1wIEROMjUvNTAsIFZBUklWRU5Uwq4gRE40MC81MCk7IEluZ29sZCBzY3JldyBjb25uZWN0aW9uIiwic29ydE5vIjowfSx7Im5hbWUiOiJNYXRlcmlhbCIsInZhbHVlIjoiU3RhaW5sZXNzIHN0ZWVsICgxLjQ1NzEpIiwic29ydE5vIjoxfSx7Im5hbWUiOiJNYXguIHRlbXBlcmF0dXJlIiwidmFsdWUiOiIwwqB0b8KgMTM1wqDCsEMiLCJzb3J0Tm8iOjJ9LHsibmFtZSI6IlByZXNzdXJlIHJlc2lzdGFuY2UiLCJ2YWx1ZSI6IlVwIHRvIDEwwqBiYXIiLCJzb3J0Tm8iOjN9LHsibmFtZSI6IkltbWVyc2lvbiBsZW5ndGggKGZyb20gcHJvY2VzcyBjb25uZWN0aW9uKSIsInZhbHVlIjoiNcKgdG/CoDkwwqBtbSIsInNvcnRObyI6NH0seyJuYW1lIjoiRmVhdHVyZXMiLCJ2YWx1ZSI6IlByb3RlY3RzIGFuZCBmYXN0ZW5zIHRoZSBlbGVjdHJvZGU7IHN1aXRhYmxlIGZvciB1c2UgaW4gbWVkaWEgd2l0aCBpbmNyZWFzZWQgaHlnaWVuaWMgcmVxdWlyZW1lbnRzIiwic29ydE5vIjo1fV0sImhpZ2hsaWdodHMiOlt7Imljb25UZXh0IjoiaWNvbi1jaGVjay1hbGwtYWx0IiwiZGVzY3JpcHRpb24iOiJIeWdpZW5pYyBkZXNpZ24iLCJ0eXBlIjoiSUNPTiJ9LHsiaWNvblRleHQiOiJpY29uLWZsb3ctdHJlZSIsImRlc2NyaXB0aW9uIjoiVmFyaW91cyBwcm9jZXNzIGNvbm5lY3Rpb25zIiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi1zaGllbGQiLCJkZXNjcmlwdGlvbiI6IkZEQS1jb21wbGlhbnQgbWF0ZXJpYWxzIiwidHlwZSI6IklDT04ifV0sImRpZmZlcmVudGlhdG9ycyI6W3sidGV4dCI6IkZvciBwSCBhbmQgcmVkb3ggZWxlY3Ryb2RlcyIsInNvcnRObyI6MH0seyJ0ZXh0IjoiSW5zdGFsbGF0aW9uIG9mIHNlbnNvcnMgdXAgdG8gYSBtYXguIG9mIDEyMMKgw5fCoDEywqBtbSIsInNvcnRObyI6MX0seyJ0ZXh0IjoiRm9yIHNlbnNvcnMgd2l0aCBQZ8KgMTMuNSBjb25uZWN0aW9uIiwic29ydE5vIjoyfV19
title
Icon
icon-check-all-alt
Description
Hygienic design
Icon
icon-flow-tree
Description
Various process connections
Icon
icon-shield
Description
FDA-compliant materials
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=4545
Process connection
Weld seam; screw-in thread G¾A; taper socket DN25/50; hygienic process connections: (clamp DN25/50, VARIVENT® DN40/50); Ingold screw connection
Material
Stainless steel (1.4571)
Max. temperature
0 to 135 °C
Pressure resistance
Up to 10 bar
Immersion length (from process connection)
5 to 90 mm
Features
Protects and fastens the electrode; suitable for use in media with increased hygienic requirements
