Produkt Details
SKU
707530
Name

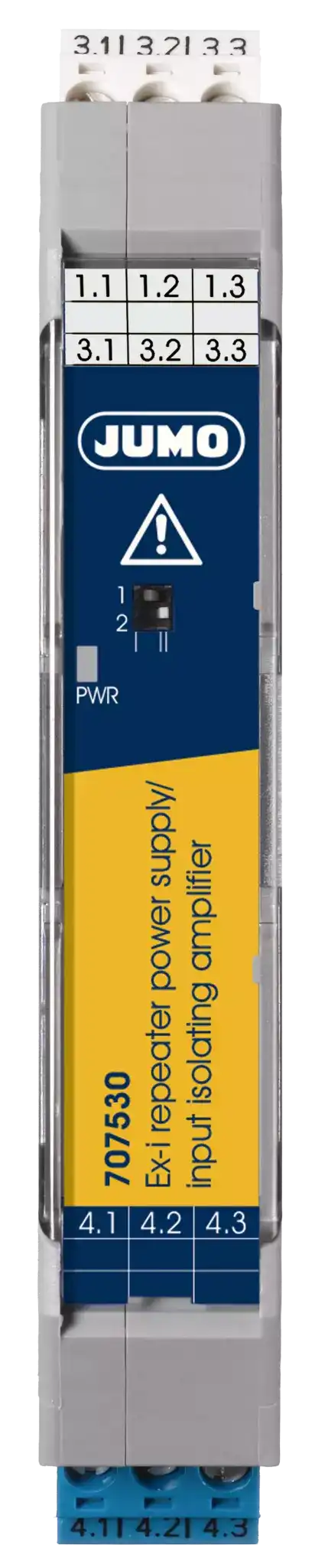

JUMO Ex-i repeater power supply and input isolating amplifier
Description
The device is designed for operation in intrinsically safe [Ex i] transmitters and mA current sources installed in Ex areas. The connected two-wire transmitters are supplied with energy and analog 0/4 to 20 mA measured values are transmitted from the Ex area to the non-Ex area.
Short Description
For intrinsically safe [Ex i] transmitters
Price
€353.49
Availability
In Stock
Images
State
LIVE
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9MjQyOTUiLCJiZW5lZml0cyI6W10sImJlbmVmaXRzSW50cm9kdWN0aW9uIjoiIiwidGVjaG5pY2FsRGF0YSI6W3sibmFtZSI6IkNhbGlicmF0aW9uIGFjY3VyYWN5IiwidmFsdWUiOiLCsSAwLjHCoCUiLCJzb3J0Tm8iOjB9LHsibmFtZSI6IkFtYmllbnQgdGVtcGVyYXR1cmUiLCJ2YWx1ZSI6Ii0yMMKgdG/CoCs2MMKgwrBDIiwic29ydE5vIjoxfSx7Im5hbWUiOiJHYWx2YW5pYyBpc29sYXRpb24iLCJ2YWx1ZSI6IjM3NeKAiVZwZWFrIiwic29ydE5vIjoyfSx7Im5hbWUiOiJTcGVjaWFsIGZlYXR1cmVzIiwidmFsdWUiOiJIQVJUwq4gY29tcGF0aWJsZSwgYWN0aXZlL3Bhc3NpdmUgY3VycmVudCBvdXRwdXQsIExFRCBmb3IgcG93ZXIgc3RhdHVzLCB3aWRlLXJhbmdlIHBvd2VyIHN1cHBseSIsInNvcnRObyI6M30seyJuYW1lIjoiT3V0cHV0IiwidmFsdWUiOiIwKDQpIHRvIDIwwqBtQSwgMCgxKSB0byA1wqBWIiwic29ydE5vIjo0fSx7Im5hbWUiOiJJbnN0YWxsYXRpb24iLCJ2YWx1ZSI6Ik9uIG1vdW50aW5nIHJhaWwvRElOIHJhaWwgMzUgw5cgNy41IG1tIiwic29ydE5vIjo1fSx7Im5hbWUiOiJBcHByb3ZhbCIsInZhbHVlIjoiQVRFWDogW0V4IGlhXSwgU0lMIDIsIFVMIiwic29ydE5vIjo2fSx7Im5hbWUiOiJWb2x0YWdlIHN1cHBseSIsInZhbHVlIjoiQUMvREMgMjQgdG8gMjMwwqBWIiwic29ydE5vIjo3fSx7Im5hbWUiOiJDb25maWd1cmF0aW9uIiwidmFsdWUiOiJWaWEgRElQIHN3aXRjaCIsInNvcnRObyI6OH0seyJuYW1lIjoiSW5wdXQiLCJ2YWx1ZSI6IjAoNCkgdG8gMjDCoG1BLCBzdXBwbHkgaXNvbGF0aW9uIGFtcGxpZmllciBvcGVyYXRpb24gb3IgaW5wdXQgaXNvbGF0aW5nIGFtcGxpZmllciBvcGVyYXRpb24iLCJzb3J0Tm8iOjl9XSwiaGlnaGxpZ2h0cyI6W3siaWNvblRleHQiOiJpY29uLWJhdHRlcnktZnVsbCIsImRlc2NyaXB0aW9uIjoiV2lkZS1yYW5nZSBwb3dlciBzdXBwbHkiLCJ0eXBlIjoiSUNPTiJ9LHsiaWNvblRleHQiOiJpY29uLWNoZWNrIiwiZGVzY3JpcHRpb24iOiJIQVJUwq4gY2FwYWJsZSIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24tc2hpZWxkIiwiZGVzY3JpcHRpb24iOiJTSUwgMiBhcHByb3ZhbCIsInR5cGUiOiJJQ09OIn1dLCJkaWZmZXJlbnRpYXRvcnMiOlt7InRleHQiOiJBbmFsb2cgMC80IHRvIDIwwqBtQSBtZWFzdXJlZCB2YWx1ZXMiLCJzb3J0Tm8iOjB9LHsidGV4dCI6IlN1cHBseSAyNCB0byAyMzDCoFYiLCJzb3J0Tm8iOjF9LHsidGV4dCI6IkdhbHZhbmljIHRocmVlLXdheSBpc29sYXRpb24iLCJzb3J0Tm8iOjJ9XX0=
title
Icon
icon-battery-full
Description
Wide-range power supply
Icon
icon-check
Description
HART® capable
Icon
icon-shield
Description
SIL 2 approval
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=24295
Calibration accuracy
± 0.1 %
Ambient temperature
-20 to +60 °C
Galvanic isolation
375 Vpeak
Special features
HART® compatible, active/passive current output, LED for power status, wide-range power supply
Output
0(4) to 20 mA, 0(1) to 5 V
Installation
On mounting rail/DIN rail 35 × 7.5 mm
Approval
ATEX: [Ex ia], SIL 2, UL
Voltage supply
AC/DC 24 to 230 V
Configuration
Via DIP switch
Input
0(4) to 20 mA, supply isolation amplifier operation or input isolating amplifier operation
