Produkt Details
SKU
902195
Name

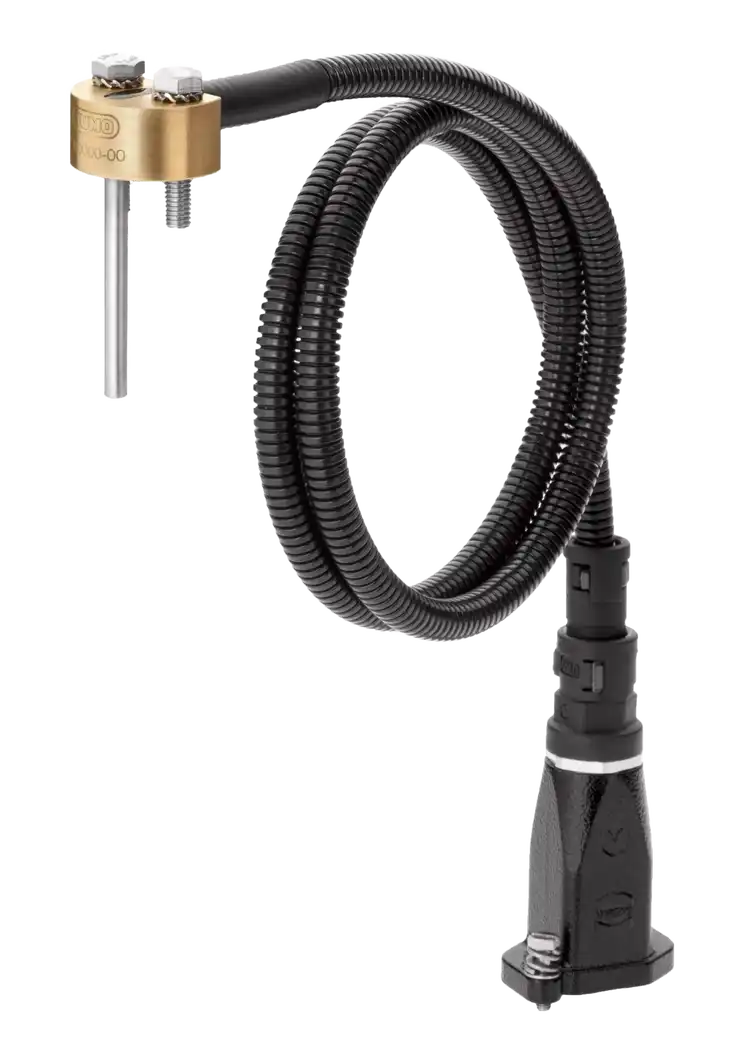

JUMO railTEMP
Description
JUMO railTEMP has a qualified measuring insert especially developed for railway applications with up to 2 sensing elements and can be equipped with different sensors. The firmly attached connection line is available with a variety of different connections or high-quality connectors. Halogen-free materials and cable protection ensure maximum safety in rail transport as well as reliable measurement results.
Short Description
Wheelset temperature probe
Price
€0.00
Availability
In Stock
Images
State
NEW
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9MTIxMzg3NyIsImJlbmVmaXRzIjpbXSwiYmVuZWZpdHNJbnRyb2R1Y3Rpb24iOiIiLCJ0ZWNobmljYWxEYXRhIjpbeyJuYW1lIjoiQXJlYXMgb2YgYXBwbGljYXRpb24iLCJ2YWx1ZSI6IlJhaWx3YXkgdGVjaG5vbG9neSwgcmFpbC1iYXNlZCB2ZWhpY2xlcyIsInNvcnRObyI6MH0seyJuYW1lIjoiQXBwcm92YWxzIiwidmFsdWUiOiJESU4gRU4gNTAxNTUsIERJTiBFTiA2MTM3MywgRU4gNDU1NDUiLCJzb3J0Tm8iOjF9LHsibmFtZSI6IlNwZWNpYWwgZmVhdHVyZXMiLCJ2YWx1ZSI6IlNoaWVsZGVkIGxpbmUsIGNhYmxlIHByb3RlY3Rpb24sIG11bHRpcGxlIGNvbm5lY3RvcnMgYXZhaWxhYmxlIiwic29ydE5vIjoyfSx7Im5hbWUiOiJPcGVyYXRpbmcgdGVtcGVyYXR1cmUiLCJ2YWx1ZSI6Ii01MCB0byArMjAwIMKwQyIsInNvcnRObyI6M30seyJuYW1lIjoiU2Vuc29yIiwidmFsdWUiOiJQdDEwMCwgUHQxMDAwLCBOVEMgNWvihKYiLCJzb3J0Tm8iOjR9LHsibmFtZSI6Ik1lYXN1cmluZyBjaXJjdWl0cyIsInZhbHVlIjoiMS8yIiwic29ydE5vIjo1fSx7Im5hbWUiOiJQcm90ZWN0aW9uIGZpdHRpbmciLCJ2YWx1ZSI6IlN0YWlubGVzcyBzdGVlbC9DdVpuIiwic29ydE5vIjo2fSx7Im5hbWUiOiJDb25uZWN0aW9uIGxpbmUiLCJ2YWx1ZSI6IkhhbG9nZW4tZnJlZSBjb25uZWN0aW9uIGxpbmUiLCJzb3J0Tm8iOjd9LHsibmFtZSI6IlByb3RlY3Rpb24gdHlwZSIsInZhbHVlIjoiSVA2OCwgSVA2OSIsInNvcnRObyI6OH1dLCJoaWdobGlnaHRzIjpbeyJpY29uVGV4dCI6Imljb24tZmlsZS1jaGVja2VkIiwiZGVzY3JpcHRpb24iOiJDZXJ0aWZpZWQgYWNjLiB0byBESU4gRU4gNTAxNTUvNjEzNzMiLCJ0eXBlIjoiSUNPTiJ9LHsiaWNvblRleHQiOiJpY29uLXBob25lLXNoYWtlIiwiZGVzY3JpcHRpb24iOiJWaWJyYXRpb24gYW5kIHNob2NrLXJlc2lzdGFudCIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24tYXJyb3ctbGVmdC1yaWdodCIsImRlc2NyaXB0aW9uIjoiRmxleGlibGUgc2Vuc29yIHRlY2hub2xvZ3kiLCJ0eXBlIjoiSUNPTiJ9XSwiZGlmZmVyZW50aWF0b3JzIjpbeyJ0ZXh0IjoiVGVtcC46IC01MCB0byArMjAwIMKwQyIsInNvcnRObyI6MH0seyJ0ZXh0IjoiUHJvdGVjdGlvbiB0eXBlOiBJUDY4IC8gSVA2OSIsInNvcnRObyI6MX0seyJ0ZXh0IjoiQ2VydGlmaWVkIGFjYy4gdG8gRElOIEVOIDUwMTU1LzYxMzczIiwic29ydE5vIjoyfV19
title
Icon
icon-file-checked
Description
Certified acc. to DIN EN 50155/61373
Icon
icon-phone-shake
Description
Vibration and shock-resistant
Icon
icon-arrow-left-right
Description
Flexible sensor technology
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=1213877
Areas of application
Railway technology, rail-based vehicles
Approvals
DIN EN 50155, DIN EN 61373, EN 45545
Special features
Shielded line, cable protection, multiple connectors available
Operating temperature
-50 to +200 °C
Sensor
Pt100, Pt1000, NTC 5kΩ
Measuring circuits
1/2
Protection fitting
Stainless steel/CuZn
Connection line
Halogen-free connection line
Protection type
IP68, IP69
