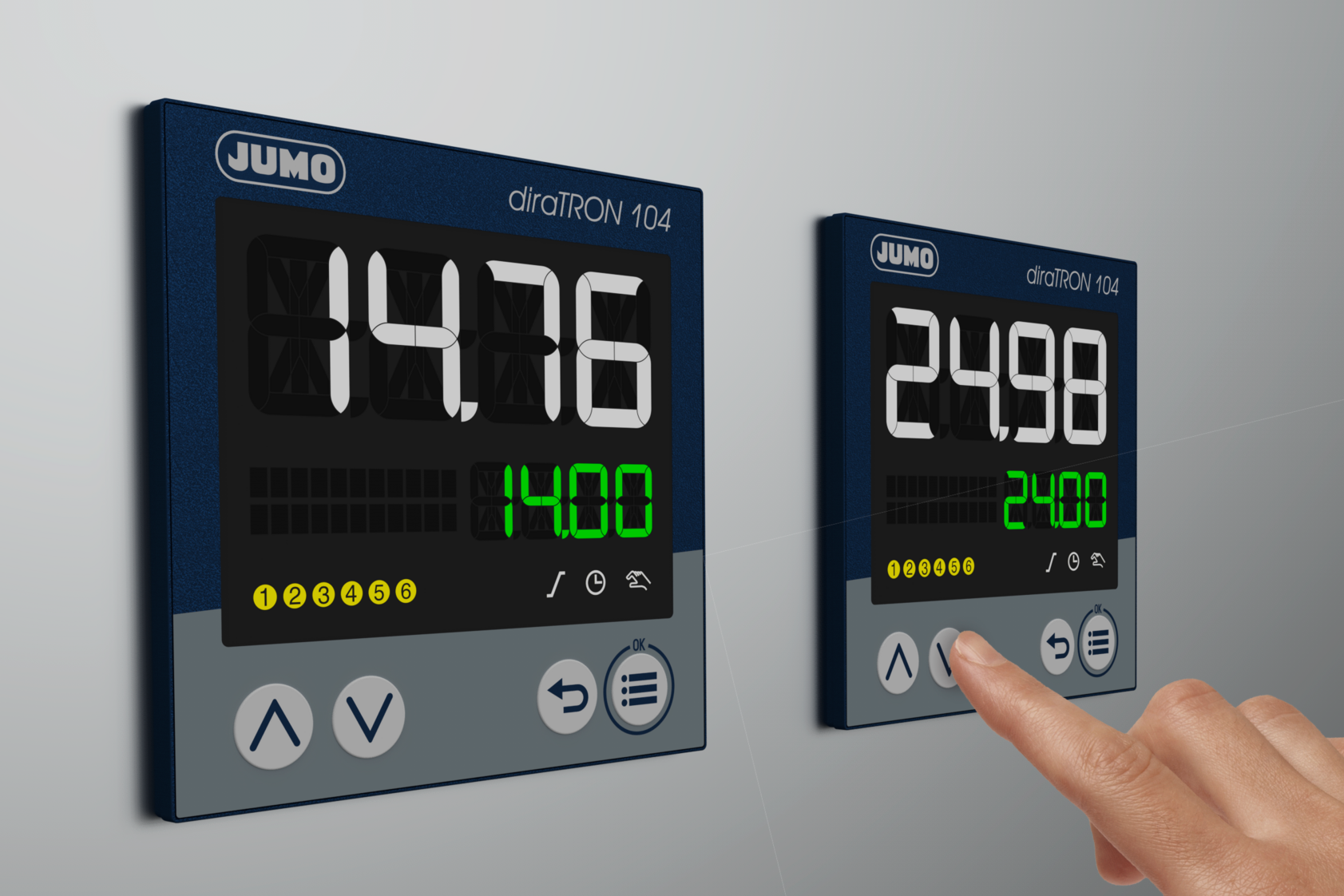

A compact controller can be adapted to a wide variety of applications and is usually used as a PID controller. It operates in a manner that is proportional, integrating, and differentiating (PID). Here the intensity of the individual components is adapted to the control process. This is done via the dimensioning of the control parameters
The principle of a PID controller is relatively simple to explain. No matter whether the controller is a PID temperature controller or a PID humidity controller, the controller always attempts to adjust a specific control variable to the setpoint value based on the actual value. In this case, the P component amplifies the control deviation, the I component increases its output level in case of existing control deviation, and the D component counteracts the movement of the actual value. Components that are not required for control can be deactivated. Depending on the application, they are then operated as PI controllers, P controllers, PD controllers, or I controllers.
The PID structure demonstrates the best control response for the majority of applications. As a result, PID compact controllers are very common in the field of temperature control. They also allow a direct connection of RTD temperature probes and thermocouples. Some controlled variables require certain components to be disabled, including speed and flow.
The P component reacts very quickly and amplifies the control difference; its permanent control deviation has a disadvantageous effect. The responsible control parameter is the proportional band Pb. With smaller dimensioned Pb the controller becomes faster and the control deviation smaller. However, the overall system tends to oscillate more and more.
The I component eliminates the control deviation. If the reset time rt is set smaller, the controller builds up its output level faster and also counteracts the control deviation faster. However, if the setting is too small, oscillatory behavior will also occur.
The D component counteracts the movement of the actual value. This means for a heating controller that the component is reduced when the actual value increases and is increased when the actual value decreases. The described behavior has a dampening effect. The responsible parameter is the derivative time dt. The larger dt is set, the greater the described effect.
The behavior of the control process always depends on the working point. Before tuning, the plant must therefore be set to an operating status for which favorable control parameters are expected later on. For example, a furnace should be loaded before tuning, or a demand must be generated for a flow heater. If a setpoint value needs to be specified during tuning, this should lie within the subsequent working range.
If comparable plants/control loops exist, the control parameters used in them can be used on a trial basis. If this approach does not lead to the goal, one of the following optimization methods can be used.
With the proportional band set relatively large, the actual value moves to the end value with little tendency to oscillation [Figure 52 (1)]. Due to the non-existent I structure a permanent control deviation is present.
The Pb is reduced (Figure 52 [2]): the actual value increases and moves to the end value with a greater tendency to oscillation. In certain circumstances the proportional band is reduced several times until the actual value is permanently oscillating (Figure 52 [3]). The proportional band required for this behavior is called Pbc (critical Pb) and must be determined as accurately as possible (do not reduce Pb in excessively large steps).
Example:
A controller with a PID structure is to be used for a laboratory furnace. The aim is to achieve good disturbance behavior, and the typical setpoint values are 200 °C. The output level is gradually increased in manual mode until the actual value is slightly below the future setpoint value (wait for the respective compensation processes). For example, a temperature of 180 °C is reached with an output level of 60 %. Starting from 60 %, the output level is suddenly increased to 80 % and the actual value is recorded.
The step change is specified again for the already mentioned laboratory furnace, whereby the subsequent working point is also 200 °C. Specifying an output level of 60 % in manual mode results in an actual value of 180 °C. The output level is suddenly increased to 80 %.
After specifying the step change, the actual value increases after a while. The recording continues until the actual value reaches its maximum slope. The inflectional tangent is also drawn and the delay time determined with this method as well. The second characterizing parameter is the maximum rate of rise, which corresponds to the slope of the inflectional tangent. The maximum rate of rise can be determined by applying a slope triangle to the inflectional tangent:
The P structure is activated for the controller. The proportional band is set relatively large (the dimensioning depends on the control process) and the setpoint value in the subsequent working range is specified. The actual value will move slowly toward the end value and a relatively large control deviation is produced. The setpoint value is then specified with an increasingly small proportional band Pb. The aim is to achieve a Pb with which the actual value reaches its stable end value after 2 to 3 complete oscillations (Figure 56a). For a smooth start-up, the structure needs to be switched from P to PD. Starting with a small setting for the derivative time, the setpoint is specified with an increasingly large dt. If the actual value reaches its end value with as small an oscillation as possible, dt is at its optimal setting (Figure 56b).
Note: as soon as the controller sets the output level to 0 % even just once during start-up, this means that dt is set too large.
The I component is activated when the structure is switched to PID. An optimal reset time rt is generally set at 4 times the value of the previously determined dt. Figure 56c shows the response for a setting of rt = 4 × dt.
On some processes it is not possible to activate all components. If, with a P structure, an unsettled response is already produced with a large Pb, it will not be possible to use the P or the D structure. The I controller needs to be used instead.
If the P controller was successfully tuned, but the introduction of the D component makes the control loop unstable, the PI structure is used.
Applying one of the tuning methods outlined in this chapter will most probably result in a stable, but not optimal control response. The control result can be further improved by manual retuning. If the response of a PID controller can be matched with one of the curves 62b to 62e, you will find information here for further tuning.
The diagram shows optimal behavior for a PID controller.
After specification of the setpoint value, the actual value increases steeply until it reaches the proportional band. If the actual value enters the proportional band, the P component is reduced and the I component ensures the value is adjusted to the setpoint value. The increase of the I component takes place slowly on account of the relatively large rt and the control deviation is slowly eliminated. For faster integration, rt must be set smaller; dt is also reduced in line with the ratio dt/rt = 1/4.
When the actual value enters the proportional band, the I component increases the output level. The increase continues until the actual value reaches the setpoint value. In the example shown, the I component builds up an excessive output level until the elimination of the control deviation, and the actual value surpasses the setpoint value. If there is a negative control deviation, the output level is reduced too quickly and the actual value falls below the setpoint value, and so on. The symmetrical oscillation of the actual value around the setpoint value is indicative of too small an rt. rt must be increased and dt also increased in line with the ratio dt / rt = 1/4.
The I component is formed from the time the actual value enters the proportional band until the elimination of the control deviation. Due to the large Pb, the I component already starts to form its output level when there is a large control deviation. Due to the large control deviation at the start, the I component forms its output level relatively quickly. When the control deviation is eliminated the I component is too large and the actual value surpasses the setpoint value. With a smaller setting for Pb, if there are smaller control deviations the I component starts to build up its output level at a correspondingly slower rate. The one-off overshoot depicted becomes more improbable.
With a Pb that is set too small, the output level of the P component is reduced shortly before the setpoint value is reached. When the actual value enters the proportional band, the P component is sharply reduced and the actual value decreases. Due to the larger control deviation the output level becomes larger and the actual value increases. In the proportional band, small changes in the actual value lead to large changes in the output level, resulting in a high tendency for oscillation. This is calmed by increasing the proportional band.
