ps-1
Overview
title
Produkt Details
SKU
401050
Name

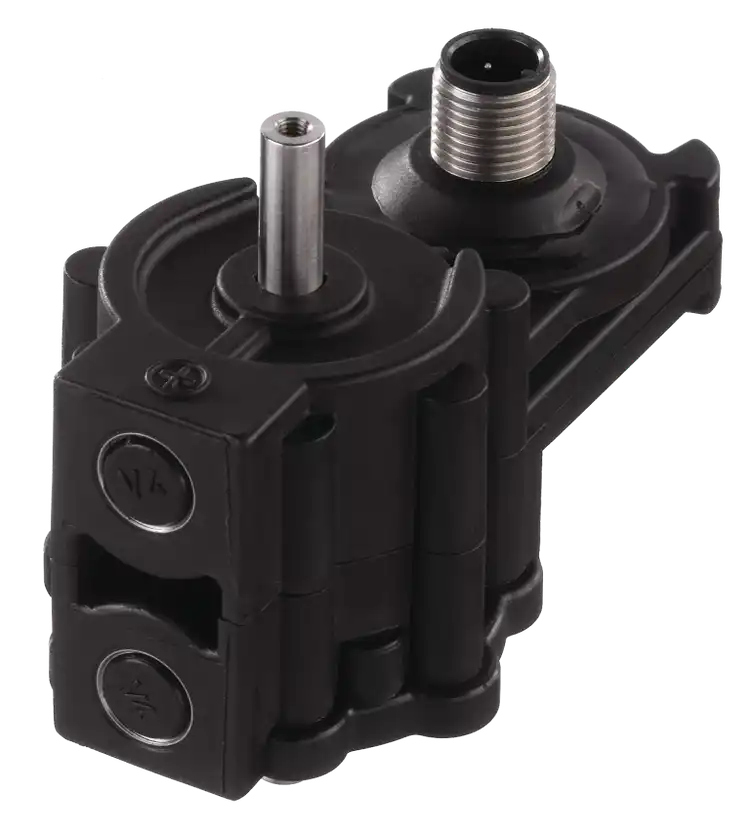

JUMO MIDAS DP10
Description
The product acquires the differential pressure in liquid as well as gaseous media and transforms it into an analog output signal. The transmitter is mainly used for filter monitoring.
Short Description
Differential pressure transmitter
Price
€630.05
Availability
In Stock
Images
State
LIVE
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9NTgxOCIsImJlbmVmaXRzIjpbXSwiYmVuZWZpdHNJbnRyb2R1Y3Rpb24iOiIiLCJ0ZWNobmljYWxEYXRhIjpbeyJuYW1lIjoiUHJvY2VzcyBjb25uZWN0aW9uIiwidmFsdWUiOiIywqB4wqBHwqAxLzggaW50ZXJuYWwgdGhyZWFkIiwic29ydE5vIjowfSx7Im5hbWUiOiJNZWRpdW0gdGVtcGVyYXR1cmUiLCJ2YWx1ZSI6Ii0xNcKgdG8gKzEwMMKgwrBDIiwic29ydE5vIjoxfSx7Im5hbWUiOiJJbnB1dCIsInZhbHVlIjoiMMKgdG/CoDQwMMKgbWJhciDigJMgMMKgdG/CoDE2wqBiYXIgZGlmZmVyZW50aWFsIHByZXNzdXJlIiwic29ydE5vIjoyfSx7Im5hbWUiOiJNZWFzdXJpbmcgc3lzdGVtIiwidmFsdWUiOiJTaWxpY29uIHNlbnNvciB3aXRoIHN0YWlubGVzcyBzdGVlbCBzZXBhcmF0aW5nIG1lbWJyYW5lIChwaWV6b3Jlc2lzdGl2ZSkiLCJzb3J0Tm8iOjN9LHsibmFtZSI6IlNwZWNpYWwgZmVhdHVyZXMiLCJ2YWx1ZSI6IkZvciBsaXF1aWQgYW5kIGdhc2VvdXMgbWVkaWEiLCJzb3J0Tm8iOjR9LHsibmFtZSI6Ik91dHB1dCIsInZhbHVlIjoiNMKgdG/CoDIwwqBtQSB0d28td2lyZTsgREPCoDAuNcKgdG/CoDEwwqBWwqB0aHJlZS13aXJlIiwic29ydE5vIjo1fSx7Im5hbWUiOiJBY2N1cmFjeSAobGluZWFyaXR5KSIsInZhbHVlIjoiMC40wqB0b8KgMC42wqAlIiwic29ydE5vIjo2fV0sImhpZ2hsaWdodHMiOlt7Imljb25UZXh0IjoiaWNvbi1lcXVhbGl6ZXIiLCJkZXNjcmlwdGlvbiI6IlZhcmlvdXMgb3V0cHV0IHNpZ25hbHMiLCJ0eXBlIjoiSUNPTiJ9LHsiaWNvblRleHQiOiJpY29uLWNoaXAiLCJkZXNjcmlwdGlvbiI6IlNpbGljb24gc2Vuc29yIiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi1jYWxjdWxhdG9yIiwiZGVzY3JpcHRpb24iOiJMb3cgaW52ZXN0bWVudCBjb3N0cyIsInR5cGUiOiJJQ09OIn1dLCJkaWZmZXJlbnRpYXRvcnMiOlt7InRleHQiOiI0MDDCoG1iYXLCoHRvwqAxNsKgYmFyIiwic29ydE5vIjowfSx7InRleHQiOiJESU7CoEVOwqA2MTM3MyBjYXRlZ29yecKgMUIgKyBESU7CoEVOwqA1MDE1NSIsInNvcnRObyI6MX0seyJ0ZXh0IjoiQ29tcGFjdCBkZXNpZ24gdHlwZSIsInNvcnRObyI6Mn1dfQ==
title
Icon
icon-equalizer
Description
Various output signals
Icon
icon-chip
Description
Silicon sensor
Icon
icon-calculator
Description
Low investment costs
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=5818
Process connection
2 x G 1/8 internal thread
Medium temperature
-15 to +100 °C
Input
0 to 400 mbar – 0 to 16 bar differential pressure
Measuring system
Silicon sensor with stainless steel separating membrane (piezoresistive)
Special features
For liquid and gaseous media
Output
4 to 20 mA two-wire; DC 0.5 to 10 V three-wire
Accuracy (linearity)
0.4 to 0.6 %
