Produkt Details
SKU
202769
Name

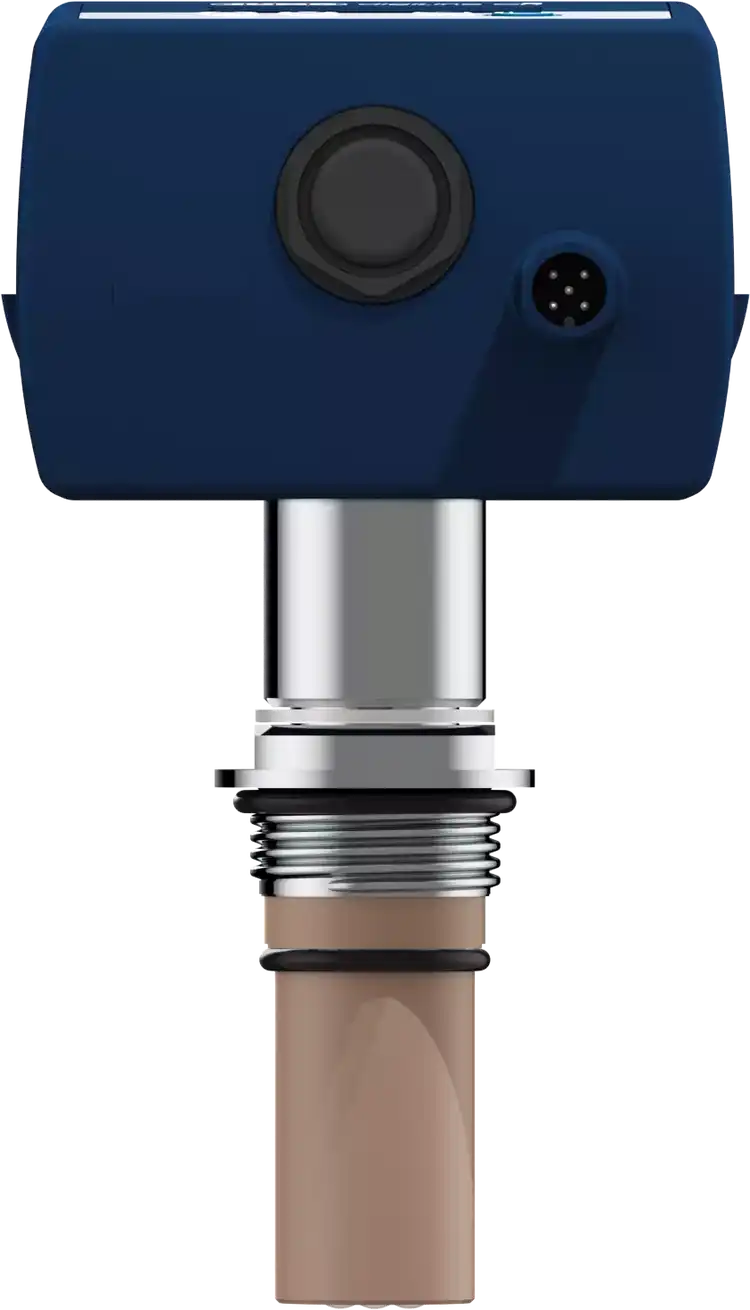

JUMO digiLine CR HT70
Description
JUMO digiLine CR now enables conductive conductivity sensors to be connected to the intelligent, bus-compatible JUMO digiLine system. System integration can now also take place via an IO-Link interface. The sensor is firmly connected to the head transmitter.
Short Description
Head transmitter with conductive four-electrode conductivity sensor type 4P
Price
€0.00
Availability
In Stock
Images
State
LIVE
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9NzAzMzkyIiwiYmVuZWZpdHMiOltdLCJiZW5lZml0c0ludHJvZHVjdGlvbiI6IiIsInRlY2huaWNhbERhdGEiOlt7Im5hbWUiOiJNZWFzdXJpbmcgcHJpbmNpcGxlIiwidmFsdWUiOiJDb25kdWN0aXZlIiwic29ydE5vIjowfSx7Im5hbWUiOiJTZW5zb3IgY29ubmVjdGlvbiIsInZhbHVlIjoiQ29tcGFjdCBkZXNpZ24gdHlwZSIsInNvcnRObyI6MX0seyJuYW1lIjoiU2Vuc29yIG1hdGVyaWFsIiwidmFsdWUiOiJTdGFpbmxlc3Mgc3RlZWwgMS40NDM1IGFuZCBQRUVLIiwic29ydE5vIjoyfSx7Im5hbWUiOiJNZWFzdXJpbmcgcmFuZ2UiLCJ2YWx1ZSI6IjUwwqDCtVMvY20gdG8gMjAwMMKgbVMvY20iLCJzb3J0Tm8iOjN9LHsibmFtZSI6IlRlbXBlcmF0dXJlIGNvbXBlbnNhdGlvbiIsInZhbHVlIjoiTGluZWFyLCBBU1RNLCBVU1AgPDY0NT4iLCJzb3J0Tm8iOjR9LHsibmFtZSI6IlRlbXBlcmF0dXJlIiwidmFsdWUiOiJNYXguIDEyMMKgwrBDICh0ZW1wb3JhcmlseSAxNDDCoMKwQykiLCJzb3J0Tm8iOjV9LHsibmFtZSI6IlByZXNzdXJlIiwidmFsdWUiOiJNYXguIDE2wqBiYXIiLCJzb3J0Tm8iOjZ9LHsibmFtZSI6IkludGVyZmFjZXMiLCJ2YWx1ZSI6IkpVTU8gZGlnaUxpbmUgb3IgSU8tTGluayIsInNvcnRObyI6N30seyJuYW1lIjoiQXJlYXMgb2YgYXBwbGljYXRpb24iLCJ2YWx1ZSI6IlJpbnNpbmcgcHJvY2Vzc2VzIGluIHRoZSBmb29kIGluZHVzdHJ5LCBiZXZlcmFnZSB0ZWNobm9sb2d5LCBwaGFybWFjZXV0aWNhbCB0ZWNobm9sb2d5LCBhbmQgYmlvdGVjaG5vbG9neSAoZS5nLiBDSVAgYW5kIFNJUCBwcm9jZXNzZXMsIGJhY2t3YXNoaW5nIHByb2Nlc3NlcyBmb3IgaW9uIGV4Y2hhbmdlcnMsIHBoYXNlIHNlcGFyYXRpb24pOyBwaGFybWFjZXV0aWNhbHM7IGNoZW1pc3RyeTsgZm9vZCB0ZWNobm9sb2d5OyBib3R0bGUgY2xlYW5pbmcgcGxhbnRzOyBwcm9jZXNzIHdhdGVyIiwic29ydE5vIjo4fV0sImhpZ2hsaWdodHMiOlt7Imljb25UZXh0IjoiaWNvbi13cmFuY2giLCJkZXNjcmlwdGlvbiI6IlByZWRpY3RpdmUgbWFpbnRlbmFuY2UgdGhhbmtzIHRvIEpVTU8gRFNNIiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi1hbnNjaGx1ZXNzZSIsImRlc2NyaXB0aW9uIjoiRmxleGlibGUgY29ubmVjdGlvbiBvcHRpb25zIiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi1hbGFybSIsImRlc2NyaXB0aW9uIjoiT3B0aW11bSBwcm9jZXNzIG1vbml0b3JpbmciLCJ0eXBlIjoiSUNPTiJ9XSwiZGlmZmVyZW50aWF0b3JzIjpbeyJ0ZXh0IjoiQ29tcGFjdCBkZXNpZ24gdHlwZSB3aXRoIGNvbmR1Y3RpdmUgc2Vuc29yIiwic29ydE5vIjowfSx7InRleHQiOiJNZWFzdXJpbmcgcmFuZ2U6IDHCoMK1Uy9jbSB0b8KgNjAwwqBtUy9jbSIsInNvcnRObyI6MX0seyJ0ZXh0IjoiSlVNTyBkaWdpTGluZSBvciBJTy1MaW5rIGludGVyZmFjZSIsInNvcnRObyI6Mn1dfQ==
title
Icon
icon-wranch
Description
Predictive maintenance thanks to JUMO DSM
Icon
icon-anschluesse
Description
Flexible connection options
Icon
icon-alarm
Description
Optimum process monitoring
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=703392
Measuring principle
Conductive
Sensor connection
Compact design type
Sensor material
Stainless steel 1.4435 and PEEK
Measuring range
50 µS/cm to 2000 mS/cm
Temperature compensation
Linear, ASTM, USP <645>
Temperature
Max. 120 °C (temporarily 140 °C)
Pressure
Max. 16 bar
Interfaces
JUMO digiLine or IO-Link
Areas of application
Rinsing processes in the food industry, beverage technology, pharmaceutical technology, and biotechnology (e.g. CIP and SIP processes, backwashing processes for ion exchangers, phase separation); pharmaceuticals; chemistry; food technology; bottle cleaning plants; process water
