Produkt Details
SKU
402050
Name

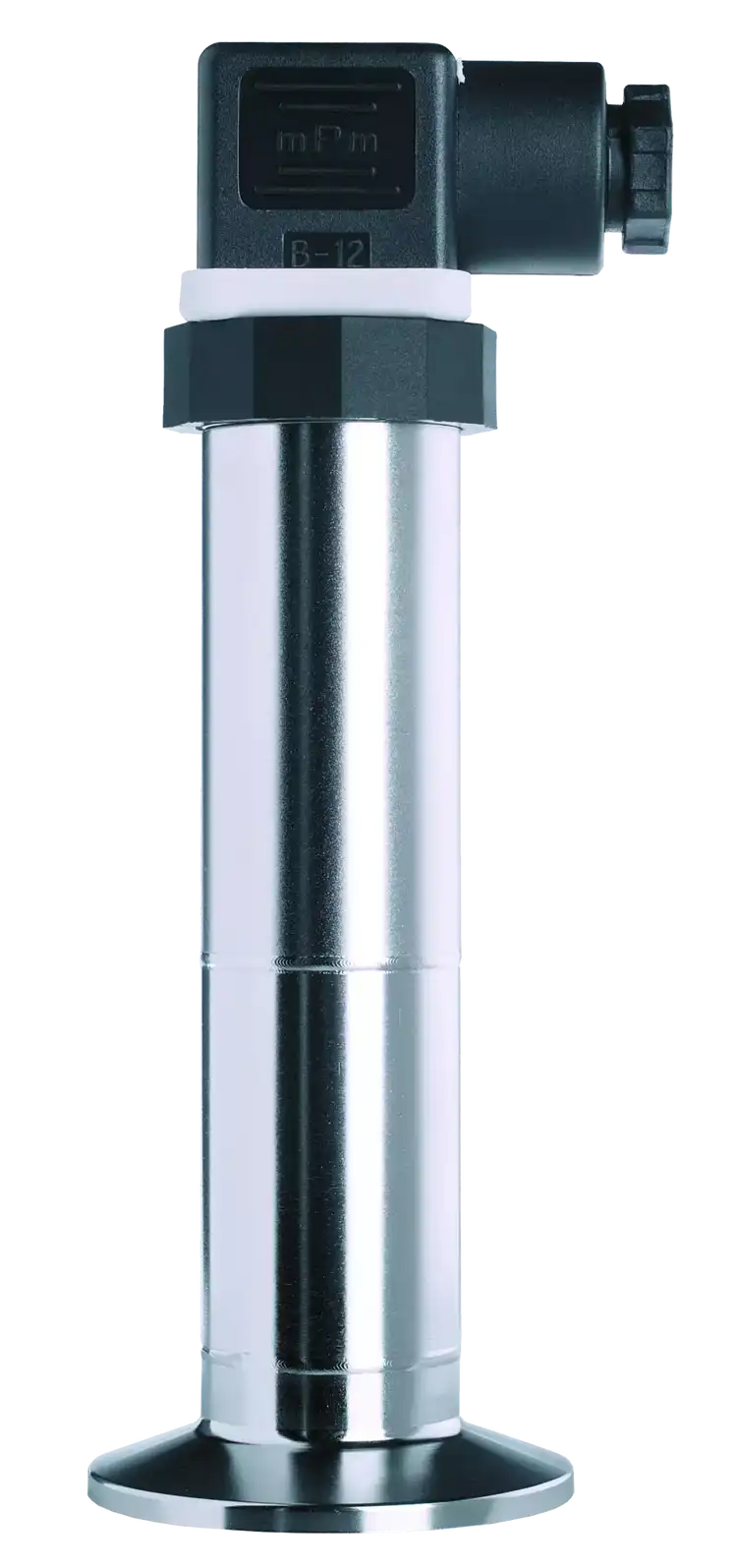

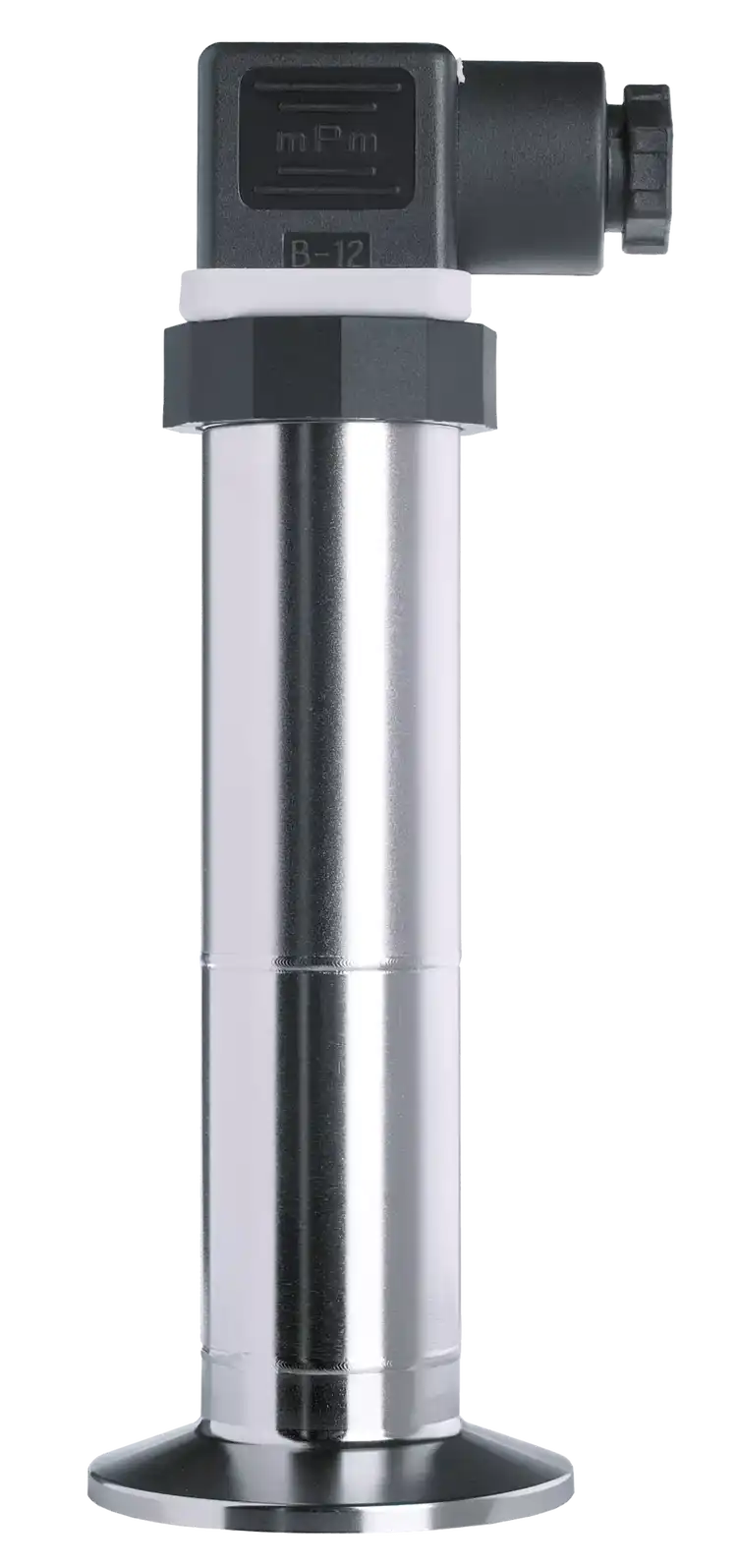

JUMO dTRANS p31
Description
The product acquires either the relative or absolute pressure of liquid and gaseous media and transforms it into an electrical signal. The transmitter is made entirely of stainless steel and has a hygienic design. It is mainly used in the food and pharmaceutical industry.
Short Description
Pressure transmitter for increased medium temperatures
Availability
In Stock
Images
State
LIVE
Variants
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbeyJzcmMiOiJodHRwczovL2RvMnAxcTliOTJzZ3AuY2xvdWRmcm9udC5uZXQvYXNzZXQvMzUzNjA0ODg0MzE5L3ZpZGVvX3E5ZWlxb3Yzc2Q2MnBjdWVodWVvMTVwMDUzP2NvbnRlbnQtZGlzcG9zaXRpb249aW5saW5lIiwiYWx0IjoiUEVLQV9Qcm96ZXNzYW5zY2hsdXNzX0RFLm1wNCIsInRodW1ibmFpbFVybCI6Imh0dHBzOi8vZG8ycDFxOWI5MnNncC5jbG91ZGZyb250Lm5ldC9yZW5kaXRpb24vMzUzNjA0ODg0MzE5L3ZpZGVvX3E5ZWlxb3Yzc2Q2MnBjdWVodWVvMTVwMDUzLy1GV0VCUCIsInNvcnQiOjB9XSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9MzQ5OCIsImJlbmVmaXRzIjpbXSwiYmVuZWZpdHNJbnRyb2R1Y3Rpb24iOiIiLCJ0ZWNobmljYWxEYXRhIjpbeyJuYW1lIjoiTWVkaXVtIHRlbXBlcmF0dXJlIiwidmFsdWUiOiItMzDCoHRvwqArMjAwwqDCsEMiLCJzb3J0Tm8iOjB9LHsibmFtZSI6Ik91dHB1dCIsInZhbHVlIjoiNMKgdG/CoDIwwqBtQSB0d28td2lyZSwgMCg0KcKgdG/CoDIwwqBtQSB0aHJlZS13aXJlLCBEQ8KgMC41wqB0b8KgNC41wqBWIHRocmVlLXdpcmUsIERDwqAwwqB0b8KgMTDCoFYgdGhyZWUtd2lyZSwgREPCoDHCoHRvwqA1KDYpwqBWIHRocmVlLXdpcmUiLCJzb3J0Tm8iOjF9LHsibmFtZSI6IkFjY3VyYWN5IChsaW5lYXJpdHkpIiwidmFsdWUiOiIwLjLCoHRvwqAwLjXCoCUiLCJzb3J0Tm8iOjJ9LHsibmFtZSI6IklucHV0IiwidmFsdWUiOiIxwqB0b8KgNjDCoGJhciByZWxhdGl2ZSwgYWJzb2x1dGUiLCJzb3J0Tm8iOjN9LHsibmFtZSI6IlByb2Nlc3MgY29ubmVjdGlvbiIsInZhbHVlIjoiVGhyZWFkOyBoeWdpZW5pYyBjb25uZWN0aW9uczsgSlVNTyBQRUtBOyBkaWFwaHJhZ20gc2VhbCIsInNvcnRObyI6NH1dLCJoaWdobGlnaHRzIjpbeyJpY29uVGV4dCI6Imljb24tZmxvdy10cmVlIiwiZGVzY3JpcHRpb24iOiJBIHdpZGUgcmFuZ2Ugb2YgcHJvY2VzcyBjb25uZWN0aW9ucyIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24tc2lnbmFsLWFsdCIsImRlc2NyaXB0aW9uIjoiUGllem9yZXNpc3RpdmUgaGlnaC10ZW1wZXJhdHVyZSBtZWFzdXJpbmcgY2VsbCIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24tdGhlcm1vbWV0ZXIiLCJkZXNjcmlwdGlvbiI6IkZvciB0ZW1wZXJhdHVyZXMgdXAgdG8gMjAwwqDCsEMiLCJ0eXBlIjoiSUNPTiJ9XSwiZGlmZmVyZW50aWF0b3JzIjpbeyJ0ZXh0IjoiUHJvdGVjdGlvbiB0eXBlOiBJUDY1L0lQNjciLCJzb3J0Tm8iOjB9LHsidGV4dCI6IjYwwqBiYXIgcmVsYXRpdmUgdG8gMjXCoGJhciBhYnNvbHV0ZSIsInNvcnRObyI6MX0seyJ0ZXh0IjoiTGluZWFyaXR5OiDiiaTCoDAuMsKgJcKgTVNQIiwic29ydE5vIjoyfV19
title
Icon
icon-flow-tree
Description
A wide range of process connections
Icon
icon-signal-alt
Description
Piezoresistive high-temperature measuring cell
Icon
icon-thermometer
Description
For temperatures up to 200 °C
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=3498
Medium temperature
-30 to +200 °C
Output
4 to 20 mA two-wire, 0(4) to 20 mA three-wire, DC 0.5 to 4.5 V three-wire, DC 0 to 10 V three-wire, DC 1 to 5(6) V three-wire
Accuracy (linearity)
0.2 to 0.5 %
Input
1 to 60 bar relative, absolute
Process connection
Thread; hygienic connections; JUMO PEKA; diaphragm seal
