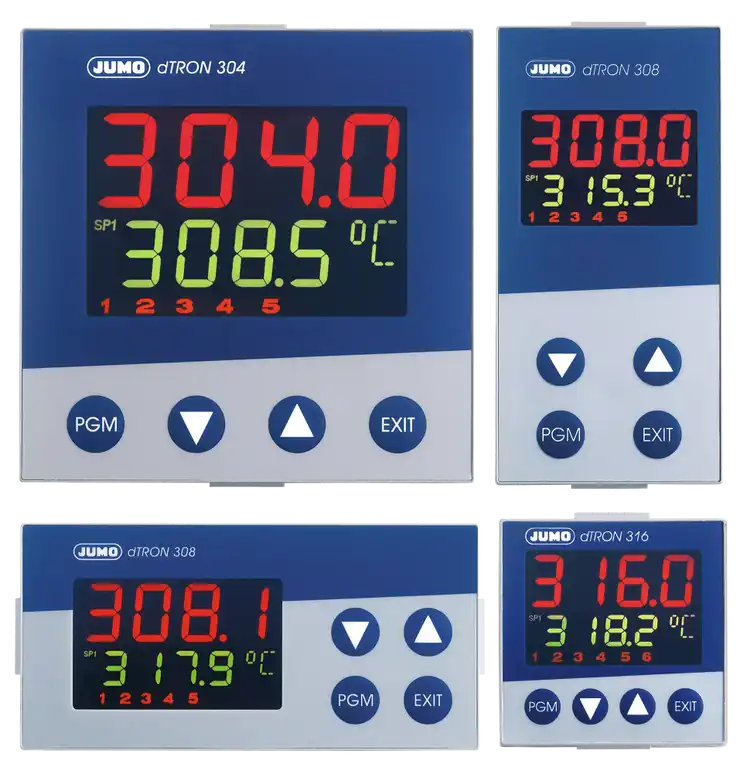

JUMO dTRON 304/308/316

Name: JUMO dTRON 304/308/316
SKU: 703041

Description

The controller series comprises 4 user programmable devices in various DIN formats to control temperatures, pressures, and other process variables.

Short Description

Compact controller with program function

Price

€0.00

Availability

In Stock

Images

State

ARCHIVE

cf-data

eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9MzM0MSIsImJlbmVmaXRzIjpbXSwiYmVuZWZpdHNJbnRyb2R1Y3Rpb24iOiIiLCJ0ZWNobmljYWxEYXRhIjpbeyJuYW1lIjoiQ29udHJvbGxlciBzdHJ1Y3R1cmUiLCJ2YWx1ZSI6IlA7IEk7IFBEOyBQSTsgUElEICgyIHNldHMgb2YgY29udHJvbCBwYXJhbWV0ZXJzKSIsInNvcnRObyI6MH0seyJuYW1lIjoiU3BlY2lhbCBmZWF0dXJlcyIsInZhbHVlIjoiTW9kdWxhciBzdHJ1Y3R1cmUgd2l0aCBwbHVnLWluIGNhcmRzIHRoYXQgY2FuIGJlIHNlbGVjdGVkIGluZGl2aWR1YWxseSBhbmQgcmV0cm9maXR0ZWQ7IGVhc3ktdG8tdXNlIFBDIHNldHVwIHByb2dyYW0gaW5jbHVkaW5nIHN0YXJ0dXAgc29mdHdhcmU7IG1pbi4gc2FtcGxpbmcgcmF0ZSA1MMKgbXM7IGF1dG90dW5pbmcgcHJvY2VkdXJlIGZvciBkZXRlcm1pbmluZyB0aGUgY29udHJvbGxlciBwYXJhbWV0ZXJzOyBwcm9ncmFtbWFibGUgb3BlcmF0aW5nIGxldmVsOyBtYXRoIGFuZCBsb2dpYyBmdW5jdGlvbnM7IE1vZGJ1cyBtYXN0ZXIgZnVuY3Rpb247IHByb2dyYW0gd2l0aCA4IHNlY3Rpb25zIiwic29ydE5vIjoxfSx7Im5hbWUiOiJBbGFybXMiLCJ2YWx1ZSI6IjQgbGltaXQgdmFsdWUgbW9uaXRvcmluZyBmdW5jdGlvbnMsIHdpdGggOCBhbGFybSBmdW5jdGlvbnMgZWFjaCIsInNvcnRObyI6Mn0seyJuYW1lIjoiQXBwcm92YWxzIiwidmFsdWUiOiJNZXRyb2xvZ2ljYWwgY2VydGlmaWNhdGU7IGNVTHVzIiwic29ydE5vIjozfSx7Im5hbWUiOiJNb3VudGluZyIsInZhbHVlIjoiUGxhc3RpYyBob3VzaW5nIGZvciBwYW5lbCBtb3VudGluZyIsInNvcnRObyI6NH0seyJuYW1lIjoiTWVhc3VyaW5nIGlucHV0cyIsInZhbHVlIjoiVXAgdG8gMiB1c2VyIGNvbmZpZ3VyYWJsZSBhbmFsb2cgaW5wdXRzIGZvcjogUlREIHRlbXBlcmF0dXJlIHByb2JlczsgcmVzaXN0YW5jZSB0cmFuc21pdHRlcnM7IHRoZXJtb2NvdXBsZXM7IGN1cnJlbnQgMCg0KSB0byAyMMKgbUE7IHZvbHRhZ2UgMCgyKSB0byAxMMKgVjsgaGVhdGVyIGN1cnJlbnQgMCB0byA1MMKgbUEgQUM7IGN1c3RvbWVyLXNwZWNpZmljIGxpbmVhcml6YXRpb24gcG9zc2libGUiLCJzb3J0Tm8iOjV9LHsibmFtZSI6Ik91dHB1dHMiLCJ2YWx1ZSI6IjIgcmVsYXlzIDPCoEEvMjMwwqBWIChub3JtYWxseSBvcGVuIGNvbnRhY3QpOyAyIGxvZ2ljIG91dHB1dHMgMC8xMsKgViAob3B0aW9uYWxseSAwLzE4wqBWKSIsInNvcnRObyI6Nn0seyJuYW1lIjoiSW50ZXJmYWNlcy9wcm90b2NvbHMiLCJ2YWx1ZSI6IlJTNDg1IChNb2RidXMpOyBQUk9GSUJVUyBEUDsgc2V0dXAgaW50ZXJmYWNlIiwic29ydE5vIjo3fSx7Im5hbWUiOiJQcm9ncmFtIGNvbnRyb2xsZXIiLCJ2YWx1ZSI6IjEgcHJvZ3JhbSB3aXRoIHVwIHRvIDggc2VjdGlvbnM7IDQgY29udHJvbCB0cmFja3MiLCJzb3J0Tm8iOjh9LHsibmFtZSI6IkRpZ2l0YWwgaW5wdXRzIiwidmFsdWUiOiJVcCB0byA0IGRpZ2l0YWwgaW5wdXRzIGZvciBwb3RlbnRpYWwtZnJlZSBjb250YWN0cyIsInNvcnRObyI6OX0seyJuYW1lIjoiQ29ubmVjdGlvbnMiLCJ2YWx1ZSI6IlNjcmV3IHRlcm1pbmFscyIsInNvcnRObyI6MTB9LHsibmFtZSI6IkZvcm1hdCIsInZhbHVlIjoiNDjCoG1tIMOXIDQ4wqBtbSwgNDjCoG1tIMOXIDk2wqBtbSwgOTbCoG1tIMOXIDQ4wqBtbSwgOTbCoG1tIMOXIDk2wqBtbSIsInNvcnRObyI6MTF9LHsibmFtZSI6IlZvbHRhZ2Ugc3VwcGx5IiwidmFsdWUiOiJBQyAxMTAgdG8gMjQwwqBWICsxMC8tMTXCoCUsIDQ4IHRvIDYzwqBIejsgQUMvREPCoDIwIHRvIDMwwqBWLCA0OCB0byA2M8KgSHoiLCJzb3J0Tm8iOjEyfSx7Im5hbWUiOiJQcm90ZWN0aW9uIHR5cGUiLCJ2YWx1ZSI6IkF0IHRoZSBmcm9udCBJUDY1OyBhdCB0aGUgcmVhciBJUDIwIiwic29ydE5vIjoxM30seyJuYW1lIjoiQ29udHJvbGxlciB0eXBlIiwidmFsdWUiOiJUd28tc3RhdGUgY29udHJvbGxlcjsgdGhyZWUtc3RhdGUgY29udHJvbGxlcjsgbW9kdWxhdGluZyBjb250cm9sbGVyOyBjb250aW51b3VzIGNvbnRyb2xsZXIiLCJzb3J0Tm8iOjE0fSx7Im5hbWUiOiJEaXNwbGF5IiwidmFsdWUiOiIyIGZvdXItZGlnaXQsIHNldmVuLXNlZ21lbnQgZGlzcGxheXMgKHJlZCwgZ3JlZW4pIGZvciBwcm9jZXNzIHZhbHVlcywgcGFyYW1ldGVycywgdGltZXJzOyBpY29ucyBmb3IgaW5kaWNhdGluZyBzd2l0Y2ggcG9zaXRpb25zLCByYW1wIG1vZGUsIG1hbnVhbCBtb2RlLCBhbmQgYWN0aXZlIHNldHBvaW50IHZhbHVlczsgMSB0d28tZGlnaXQgMTYtc2VnbWVudCBkaXNwbGF5IChncmVlbikgZm9yIHRoZSBkaXNwbGF5IG9mIHZhcmlvdXMgdW5pdHMiLCJzb3J0Tm8iOjE1fV0sImhpZ2hsaWdodHMiOlt7Imljb25UZXh0IjoiaWNvbi1jYWxjdWxhdG9yIiwiZGVzY3JpcHRpb24iOiJNYXRoIGFuZCBsb2dpYyBmdW5jdGlvbiIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24tbW9uaXRvciIsImRlc2NyaXB0aW9uIjoiUHJvZ3JhbSB3aXRoIDggc2VjdGlvbnMiLCJ0eXBlIjoiSUNPTiJ9LHsiaWNvblRleHQiOiJpY29uLWZsb3ctbGluZSIsImRlc2NyaXB0aW9uIjoiVW5pdmVyc2FsIG1lYXN1cmVtZW50IGlucHV0IiwidHlwZSI6IklDT04ifV0sImRpZmZlcmVudGlhdG9ycyI6W3sidGV4dCI6IjQgbGltaXQgdmFsdWUgbW9uaXRvcmluZyBmdW5jdGlvbnMiLCJzb3J0Tm8iOjB9LHsidGV4dCI6IklucHV0cy9vdXRwdXRzIGNhbiBiZSBleHBhbmRlZCIsInNvcnRObyI6MX0seyJ0ZXh0IjoiRm9ybWF0czogNDggw5cgNDgg4oCTIDk2IMOXIDk2wqBtbSIsInNvcnRObyI6Mn1dfQ==

title

Icon

icon-calculator

Description

Math and logic function

Icon

icon-monitor

Description

Program with 8 sections

Icon

icon-flow-line

Description

Universal measurement input

title

Technical data

datasheet

https://www.jumo.net/attachments/JUMO/attachmentdownload?id=3341

Controller structure

P; I; PD; PI; PID (2 sets of control parameters)

Special features

Modular structure with plug-in cards that can be selected individually and retrofitted; easy-to-use PC setup program including startup software; min. sampling rate 50 ms; autotuning procedure for determining the controller parameters; programmable operating level; math and logic functions; Modbus master function; program with 8 sections

Alarms

4 limit value monitoring functions, with 8 alarm functions each

Approvals

Metrological certificate; cULus

Mounting

Plastic housing for panel mounting

Measuring inputs

Up to 2 user configurable analog inputs for: RTD temperature probes; resistance transmitters; thermocouples; current 0(4) to 20 mA; voltage 0(2) to 10 V; heater current 0 to 50 mA AC; customer-specific linearization possible

Outputs

2 relays 3 A/230 V (normally open contact); 2 logic outputs 0/12 V (optionally 0/18 V)

Interfaces/protocols

RS485 (Modbus); PROFIBUS DP; setup interface

Program controller

1 program with up to 8 sections; 4 control tracks

Digital inputs

Up to 4 digital inputs for potential-free contacts

Connections

Screw terminals

Format

48 mm × 48 mm, 48 mm × 96 mm, 96 mm × 48 mm, 96 mm × 96 mm

Voltage supply

AC 110 to 240 V +10/-15 %, 48 to 63 Hz; AC/DC 20 to 30 V, 48 to 63 Hz

Protection type

At the front IP65; at the rear IP20

Controller type

Two-state controller; three-state controller; modulating controller; continuous controller

Display

2 four-digit, seven-segment displays (red, green) for process values, parameters, timers; icons for indicating switch positions, ramp mode, manual mode, and active setpoint values; 1 two-digit 16-segment display (green) for the display of various units
