Produkt Details
SKU
705041
Name

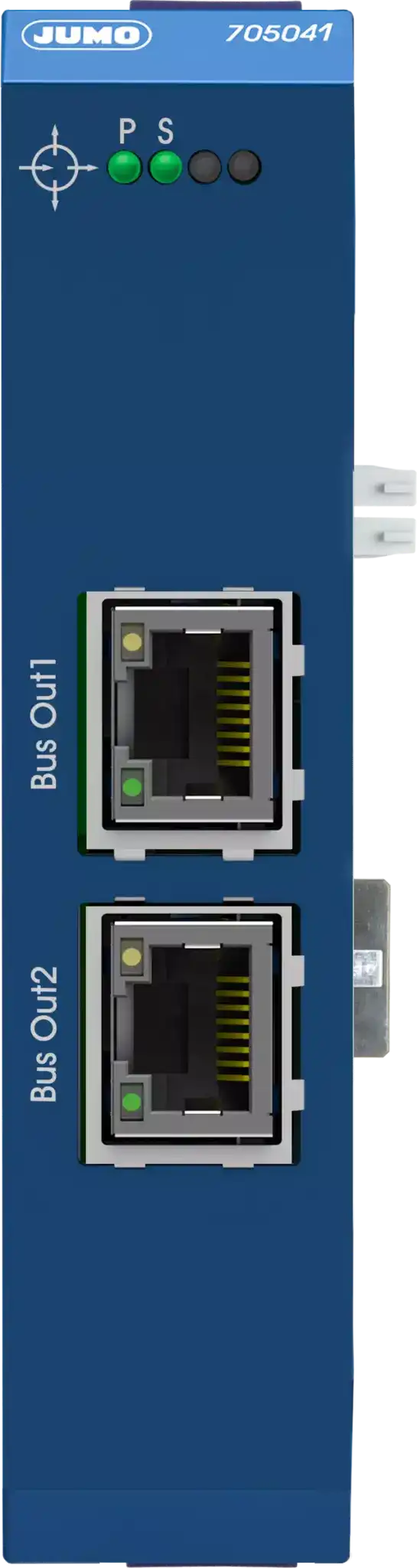

Router module 2-port
Description
The 2-port router module extends the central unit of the JUMO variTRON automation system by 2 system bus outputs. In this way, the system bus can be transmitted to router modules 3-port (705042) on other DIN rails in the same or in other control cabinets at a distance of up to 100 m. This makes it possible to distribute input and output modules and to decentralize the automation system.
Short Description
Module for automation system JUMO variTRON
Price
€287.53
Availability
In Stock
Images
State
LIVE
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9ODQwNTU3IiwiYmVuZWZpdHMiOltdLCJiZW5lZml0c0ludHJvZHVjdGlvbiI6IiIsInRlY2huaWNhbERhdGEiOlt7Im5hbWUiOiJJbnRlcmZhY2VzIiwidmFsdWUiOiIyIFJKNDUgb24gdGhlIGZyb250IHNpZGU6IDIgQnVzIE91dCAoc3lzdGVtIGJ1cykiLCJzb3J0Tm8iOjB9LHsibmFtZSI6IlNwZWNpYWwgZmVhdHVyZXMiLCJ2YWx1ZSI6IkRlY2VudHJhbGl6ZWQgYXJyYW5nZW1lbnQgb2YgdGhlIG1vZHVsZXMgb2YgdGhlIGF1dG9tYXRpb24gc3lzdGVtIHdpdGggYSBkaXN0YW5jZSBvZiB1cCB0byAxMDAgbWV0ZXJzIGJldHdlZW4gcm91dGVyIG1vZHVsZXMsIGFkZHJlc3NpbmcgdmlhIHJvdGFyeSBjb2Rpbmcgc3dpdGNoIGZvciBzcGVjaWFsIGFwcGxpY2F0aW9ucywgZ2FsdmFuaWMgaXNvbGF0aW9uIG9mIHRoZSBpbnRlcmZhY2VzIG9uIHRoZSBmcm9udCwgc3VwcGx5IG9mIG9wZXJhdGluZyB2b2x0YWdlLCBmYXN0IHdpcmluZyBvZiBvcGVyYXRpbmcgdm9sdGFnZSBhbmQgc3lzdGVtIGJ1cyBwcm92aWRlZCBieSBzaW1wbGUgbW9kdWxlIGNvbm5lY3Rpb24gcHJpbmNpcGxlIiwic29ydE5vIjoxfSx7Im5hbWUiOiJWb2x0YWdlIHN1cHBseSIsInZhbHVlIjoiREMgMjQgViArMjUvLTIwICUiLCJzb3J0Tm8iOjJ9LHsibmFtZSI6IkhvdXNpbmciLCJ2YWx1ZSI6IlBsYXN0aWMgaG91c2luZyBmb3IgRElOLXJhaWwgbW91bnRpbmcgaW4gdGhlIGNvbnRyb2wgY2FiaW5ldCIsInNvcnRObyI6M30seyJuYW1lIjoiRGltZW5zaW9ucyAoVyDDlyBIIMOXIEQpIiwidmFsdWUiOiIyMi41IHggMTAzLjYgeCAxMDEuNSBtbSIsInNvcnRObyI6NH0seyJuYW1lIjoiUHJvdGVjdGlvbiB0eXBlIiwidmFsdWUiOiJJUDIwIiwic29ydE5vIjo1fSx7Im5hbWUiOiJBbWJpZW50IHRlbXBlcmF0dXJlIiwidmFsdWUiOiItMjAgdG8gKzU1IMKwQyIsInNvcnRObyI6Nn0seyJuYW1lIjoiQXBwcm92YWxzIiwidmFsdWUiOiJVTCIsInNvcnRObyI6N31dLCJoaWdobGlnaHRzIjpbeyJpY29uVGV4dCI6Imljb24tZmxvdy10cmVlIiwiZGVzY3JpcHRpb24iOiJTdXBwb3J0cyBkZWNlbnRyYWxpemVkIG1vZHVsZSBhc3NpZ25tZW50IiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi1hbnNjaGx1ZXNzZSIsImRlc2NyaXB0aW9uIjoiU3lzdGVtIGJ1cyBleHBhbnNpb24gdmlhIDIgUko0NSBzb2NrZXRzIiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi1jbG9jayIsImRlc2NyaXB0aW9uIjoiRmFzdCB3aXJpbmciLCJ0eXBlIjoiSUNPTiJ9XSwiZGlmZmVyZW50aWF0b3JzIjpbeyJ0ZXh0IjoiMiBzeXN0ZW0gYnVzIGNvbm5lY3Rpb25zIiwic29ydE5vIjowfSx7InRleHQiOiJHYWx2YW5pY2FsbHkgaXNvbGF0ZWQgaW50ZXJmYWNlcyIsInNvcnRObyI6MX0seyJ0ZXh0IjoiVm9sdGFnZSBzdXBwbHkgb3V0cHV0Iiwic29ydE5vIjoyfV19
title
Icon
icon-flow-tree
Description
Supports decentralized module assignment
Icon
icon-anschluesse
Description
System bus expansion via 2 RJ45 sockets
Icon
icon-clock
Description
Fast wiring
title
Tekniske data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=840557
Interfaces
2 RJ45 on the front side: 2 Bus Out (system bus)
Special features
Decentralized arrangement of the modules of the automation system with a distance of up to 100 meters between router modules, addressing via rotary coding switch for special applications, galvanic isolation of the interfaces on the front, supply of operating voltage, fast wiring of operating voltage and system bus provided by simple module connection principle
Voltage supply
DC 24 V +25/-20 %
Housing
Plastic housing for DIN-rail mounting in the control cabinet
Dimensions (W × H × D)
22.5 x 103.6 x 101.5 mm
Protection type
IP20
Ambient temperature
-20 to +55 °C
Approvals
UL
