Overview
title
Produkt Details
SKU
202820
Name

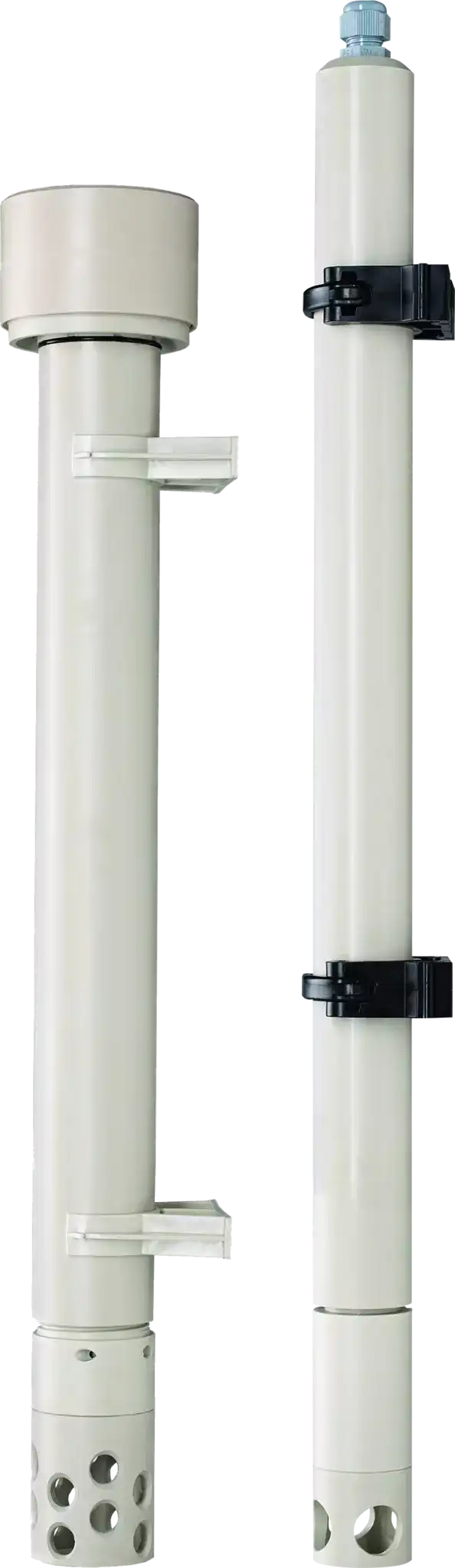

Immersion fittings
Description
Immersion fittings are designed for mounting electrochemical sensors (e.g. pH and redox electrodes, glass conductivity cells, etc.) with a Pg 13.5 screw-in thread and a 120-mm insertion length. Fitting types for 1 to 3 sensors are available.
Short Description
For pH and redox electrodes
Availability
In Stock
Images
State
LIVE
Variants
Immersion tube diameter (mm)
Insertion length (mm)
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9MzQ0MiIsImJlbmVmaXRzIjpbXSwiYmVuZWZpdHNJbnRyb2R1Y3Rpb24iOiIiLCJ0ZWNobmljYWxEYXRhIjpbeyJuYW1lIjoiUHJvY2VzcyBjb25uZWN0aW9uIiwidmFsdWUiOiJGbGFuZ2UiLCJzb3J0Tm8iOjB9LHsibmFtZSI6Ik1hdGVyaWFsIiwidmFsdWUiOiJQUCIsInNvcnRObyI6MX0seyJuYW1lIjoiTWF4LiB0ZW1wZXJhdHVyZSIsInZhbHVlIjoiMCB0byA5NcKgwrBDIiwic29ydE5vIjoyfSx7Im5hbWUiOiJQcmVzc3VyZSByZXNpc3RhbmNlIiwidmFsdWUiOiIxwqBiYXIsIHVwIHRvIDkwwqDCsEMiLCJzb3J0Tm8iOjN9LHsibmFtZSI6IkltbWVyc2lvbiBsZW5ndGggKGZyb20gcHJvY2VzcyBjb25uZWN0aW9uKSIsInZhbHVlIjoiNTAwwqB0b8KgMjAwMMKgbW0iLCJzb3J0Tm8iOjR9LHsibmFtZSI6IkFjY2Vzc29yaWVzIiwidmFsdWUiOiJDbGVhbmluZyBub3p6bGUgYW5kIHdldHRpbmcgY3VwIiwic29ydE5vIjo1fSx7Im5hbWUiOiJGZWF0dXJlcyIsInZhbHVlIjoiVXAgdG8gMyBzZW5zb3JzOyBlbmFibGVzIHlvdSB0byB0YWtlIG1lYXN1cmVtZW50cyBpbiBkaWZmZXJlbnQgaW1tZXJzaW9uIGRlcHRocyIsInNvcnRObyI6Nn1dLCJoaWdobGlnaHRzIjpbeyJpY29uVGV4dCI6Imljb24tc2hpZWxkIiwiZGVzY3JpcHRpb24iOiJTZW5zb3IgcHJvdGVjdGlvbiIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24tZmxvdy10cmVlIiwiZGVzY3JpcHRpb24iOiJEaWZmZXJlbnQgaW5zZXJ0aW9uIGxlbmd0aHMiLCJ0eXBlIjoiSUNPTiJ9LHsiaWNvblRleHQiOiJpY29uLWNoZWNrIiwiZGVzY3JpcHRpb24iOiJDaGVtaWNhbCByZXNpc3RhbnQiLCJ0eXBlIjoiSUNPTiJ9XSwiZGlmZmVyZW50aWF0b3JzIjpbeyJ0ZXh0IjoiRm9yIHBIIGFuZCByZWRveCBlbGVjdHJvZGVzIiwic29ydE5vIjowfSx7InRleHQiOiJJbnN0YWxsYXRpb24gb2YgMTIwwqDDl8KgMTLCoG1tIHNlbnNvcnMiLCJzb3J0Tm8iOjF9LHsidGV4dCI6IlVwIHRvIDMgc2Vuc29ycyB3aXRoIGEgUGfCoDEzLjUgY29ubmVjdGlvbiIsInNvcnRObyI6Mn1dfQ==
title
Icon
icon-shield
Description
Sensor protection
Icon
icon-flow-tree
Description
Different insertion lengths
Icon
icon-check
Description
Chemical resistant
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=3442
Process connection
Flange
Material
PP
Max. temperature
0 to 95 °C
Pressure resistance
1 bar, up to 90 °C
Immersion length (from process connection)
500 to 2000 mm
Accessories
Cleaning nozzle and wetting cup
Features
Up to 3 sensors; enables you to take measurements in different immersion depths
