Produkt Details
SKU
401021
Name

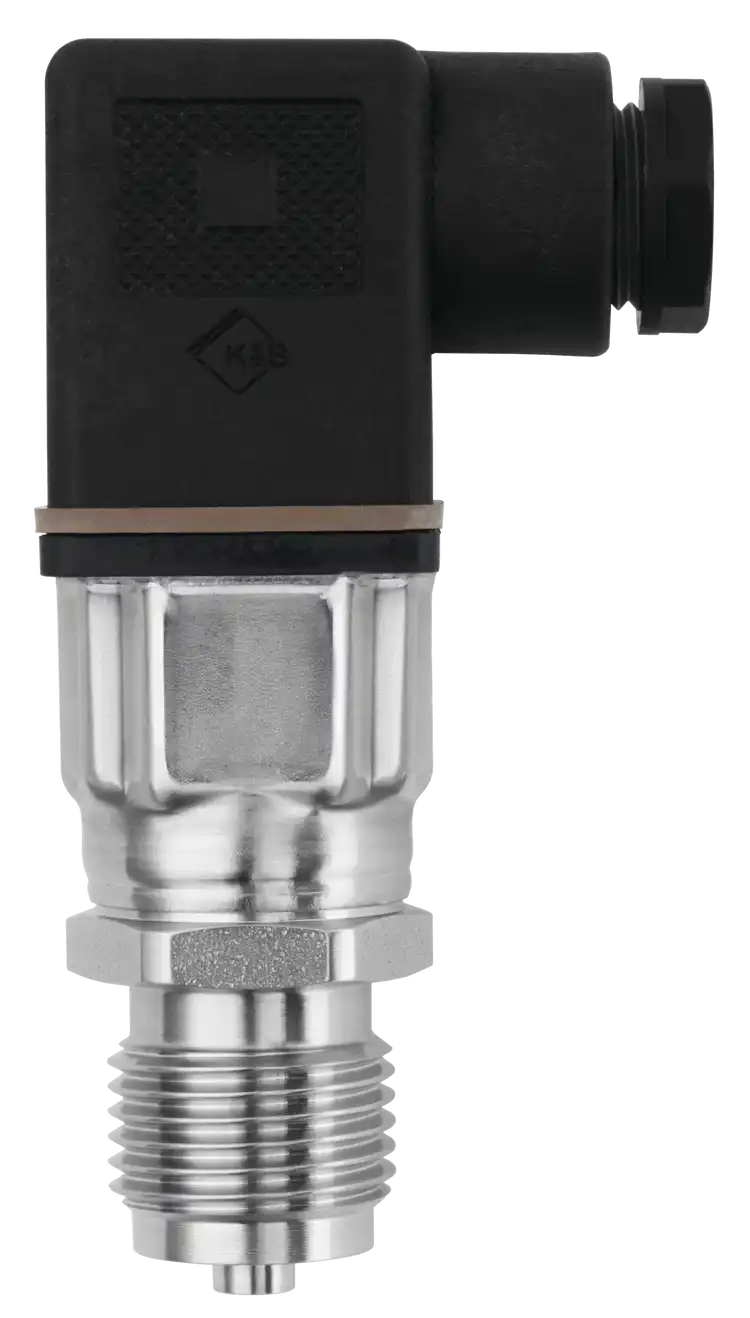

JUMO MIDAS S07 MA
Description
Depending on customer requirements, the product is available as a relative or absolute pressure transmitter. It meets the requirements of Environmental Category C, EMC 2 according to DNV directives. The pressure transmitter is mainly used in shipbuilding.
Short Description
OEM pressure transmitter – maritime approved
Price
€0.00
Availability
In Stock
Images
State
LIVE
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9MjY2MTE2IiwiYmVuZWZpdHMiOltdLCJiZW5lZml0c0ludHJvZHVjdGlvbiI6IiIsInRlY2huaWNhbERhdGEiOlt7Im5hbWUiOiJBY2N1cmFjeSAobGluZWFyaXR5KSIsInZhbHVlIjoiMC4ywqB0b8KgMC4zwqAlIiwic29ydE5vIjowfSx7Im5hbWUiOiJJbnB1dCIsInZhbHVlIjoiLTHCoHRvwqArNjDCoGJhciByZWxhdGl2ZSBwcmVzc3VyZTsgMMKgdG8gMjXCoGJhciBhYnNvbHV0ZSBwcmVzc3VyZSIsInNvcnRObyI6MX0seyJuYW1lIjoiUHJvY2VzcyBjb25uZWN0aW9uIiwidmFsdWUiOiJBbGwgc2NyZXcgY29ubmVjdGlvbnMgdGhhdCBhcmUgc3RhbmRhcmQgaW4gdGhlIGluZHVzdHJ5Iiwic29ydE5vIjoyfSx7Im5hbWUiOiJNZWRpdW0gdGVtcGVyYXR1cmUiLCJ2YWx1ZSI6Ii00MMKgdG/CoCsxMjXCoMKwQyIsInNvcnRObyI6M30seyJuYW1lIjoiT3V0cHV0IiwidmFsdWUiOiI0wqB0b8KgMjDCoG1BIHR3by13aXJlOyBEQ8KgMC41wqB0b8KgMTDCoFbCoHRocmVlLXdpcmUiLCJzb3J0Tm8iOjR9LHsibmFtZSI6Ik1lYXN1cmluZyBzeXN0ZW0iLCJ2YWx1ZSI6IlNpbGljb24gc2Vuc29yIHdpdGggc3RhaW5sZXNzIHN0ZWVsIHNlcGFyYXRpbmcgbWVtYnJhbmUiLCJzb3J0Tm8iOjV9XSwiaGlnaGxpZ2h0cyI6W3siaWNvblRleHQiOiJpY29uLWNoaXAiLCJkZXNjcmlwdGlvbiI6IlNpbGljb24gc2Vuc29yIiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi1hZGQiLCJkZXNjcmlwdGlvbiI6Ik1lYXN1cmluZyBzeXN0ZW0gd2l0aG91dCBzZWFsIiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi13cmFuY2giLCJkZXNjcmlwdGlvbiI6Ik1pbmltYWwgaW5zdGFsbGF0aW9uIGVmZm9ydCIsInR5cGUiOiJJQ09OIn1dLCJkaWZmZXJlbnRpYXRvcnMiOlt7InRleHQiOiJNZWFzdXJpbmcgcmFuZ2VzOiB1cCB0byAxMDAgYmFyIiwic29ydE5vIjowfSx7InRleHQiOiJQcm9jZXNzIHRlbXBlcmF0dXJlOiAtNDAgdG8gMTI1IMKwQyIsInNvcnRObyI6MX0seyJ0ZXh0IjoiU2hpcGJ1aWxkaW5nIOKAkyBETlYiLCJzb3J0Tm8iOjJ9XX0=
title
Icon
icon-chip
Description
Silicon sensor
Icon
icon-add
Description
Measuring system without seal
Icon
icon-wranch
Description
Minimal installation effort
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=266116
Accuracy (linearity)
0.2 to 0.3 %
Input
-1 to +60 bar relative pressure; 0 to 25 bar absolute pressure
Process connection
All screw connections that are standard in the industry
Medium temperature
-40 to +125 °C
Output
4 to 20 mA two-wire; DC 0.5 to 10 V three-wire
Measuring system
Silicon sensor with stainless steel separating membrane
